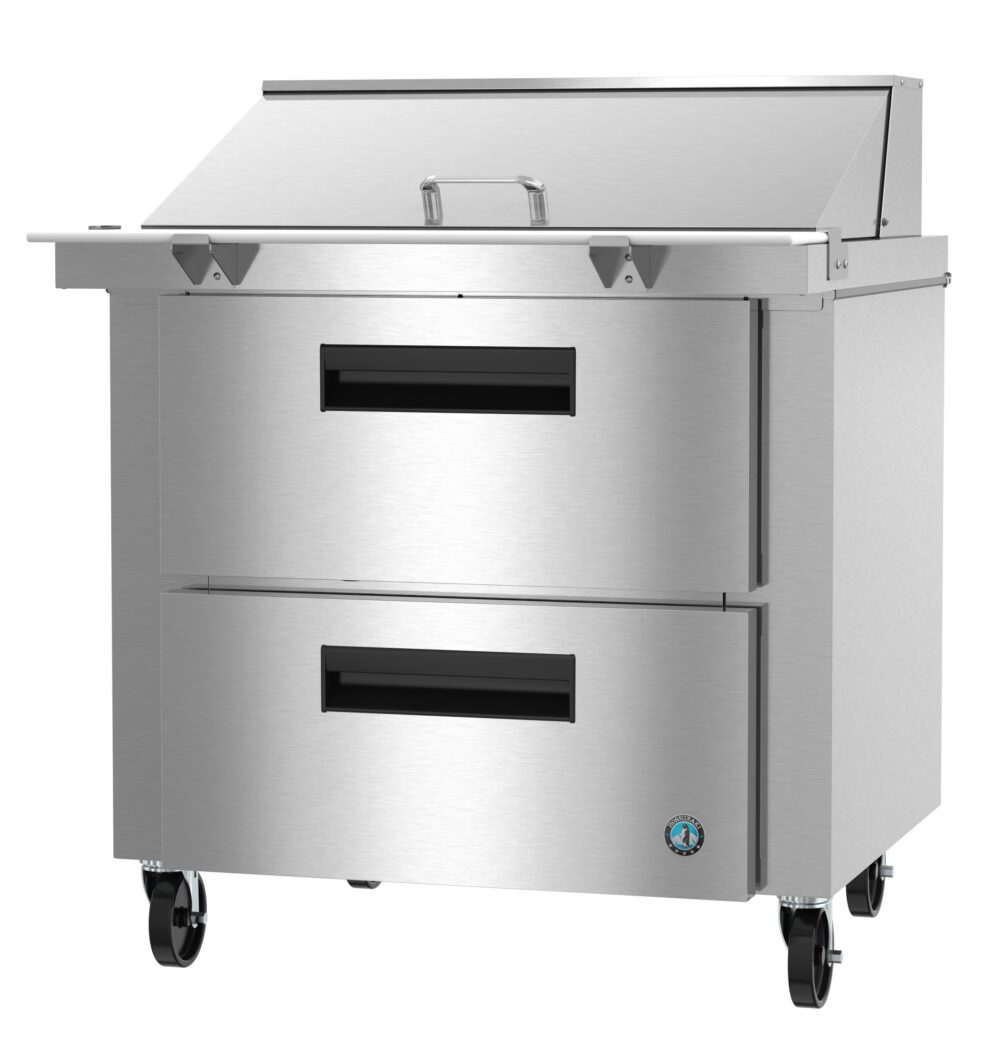

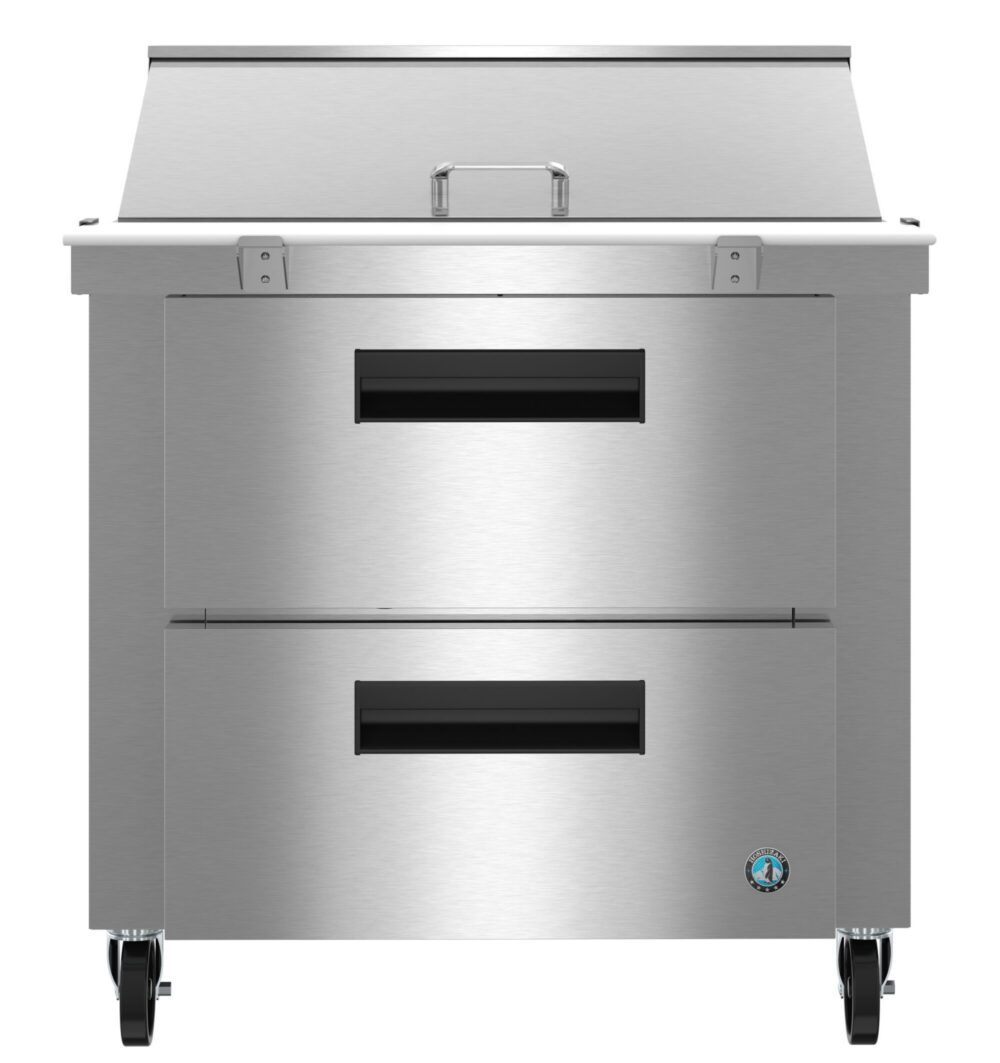

SR36B-15MD2 Refrigerator, Single Section Mega Top Prep Table, Stainless Drawers
36″ W X 34″ D X 44.25″ H
Volume
8.7
Electrical
115v/60/1
Sections
1
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.82 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290 (2.3 oz.)
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 258 BTU/hr
Shipping Weight
286 lbs.
Storage Specs
Interior storage capacity: 8.7 ft3, Door opening: 25.5″ W x 23″ H, Depth with drawer fully extended: 52″ D, Drawers included: 2
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The SR36B-15MD2 Steelheart® Series mega top prep table with two drawers offers expanded ingredient storage compared to standard sandwich prep models, making it ideal for high-volume kitchens. Built for commercial kitchens, it maintains food safe temperatures in 100°F ambient conditions for dependable performance. The mega top rail holds up to 15 pans, providing extra space to organize toppings and ingredients. The SR36B-15MD2 features durable stainless steel construction for long-lasting use and easy cleaning.
- Dimensions: 36″ W x 34″ D x 44.25″ H
- Net capacity of 8.7 cubic feet
- Innovative air distribution system distributes air evenly to maintain product temperature
- Engineered to maintain NSF-7 temperatures in 100° F ambient conditions (Certified to NSF-7 temperatures in 86° F ambient conditions)
- Front-breathing air flow design
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Insulated with 2″ CFC-free, foamed in place polyurethane
- (2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
- The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
- Drawers have a 150-lb. dynamic load rating
- Drawer capacity: Top: (1) 12″ x 20″ full size pan and (3) 1/6 size pans. Bottom: (1) full size pan (pans by others)
- Extruded aluminum flush mount drawer handles
- 36” x 10” x 1/2” thick white polyethylene cutting board is standard
- Provided with a full complement of polycarbonate plastic 1/6 size pans, 4” deep
- Drawers and rail allow for 6” deep pans
- Removable stainless steel prep guard simplifies cleanup from accidental rail pan drips and spills
- Hot gas condensate removal
- Enamel coated evaporator coil for extended life
- Environmentally friendly R290 refrigerant
- (4) 6″ stem casters (2 with brakes) are standard
