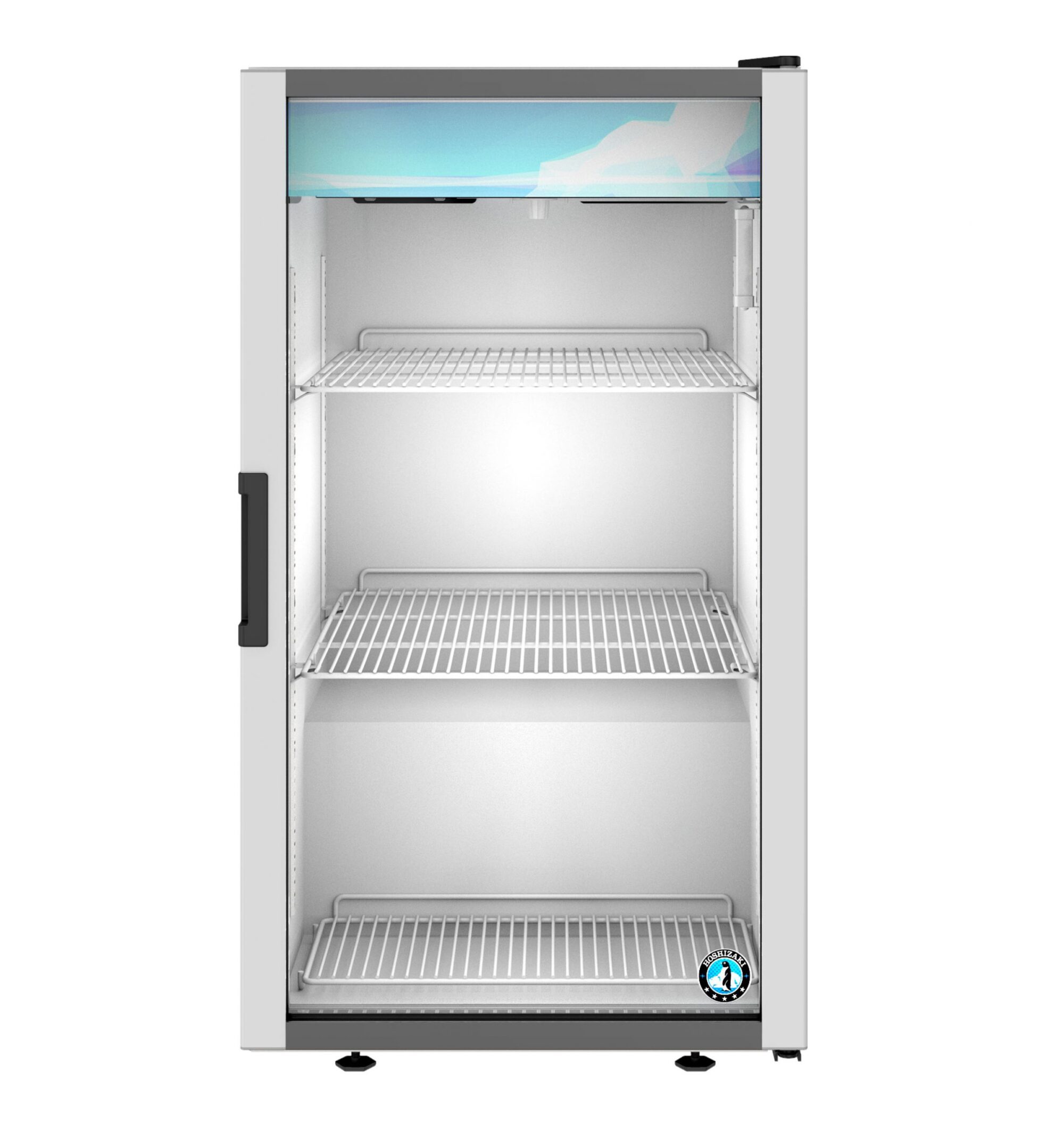

RM-7-HC-WHT Countertop Refrigerator, Single Section Glass Door Merchandiser

21″ W X 25″ D X 39″ H
Volume
7
Electrical
115v/60/1
Sections
1
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 1.38 kwh/day, Amperage: 3.2, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 60 – 86°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 39°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 582 BTU/hr at 1/8 HP, Heat Rejection: N/A BTU/hr
Shipping Weight
180
Storage Specs
Nominal storage capacity: 7 ft3, 20oz bottle capacity: 102, Door opening: 44.88″ W x 36.625″ H, Depth with doors fully extended: 21.25″ D, Shelves included: 2 adjustable, 1 floor
Warranty
Three Years: Parts & Labor on entire machine.

Overview and Features

The RM-7-HC-WHT Glass Door Merchandiser is a single section countertop refrigerator with a full glass swing door is the perfect beverage or packaged product display for any operation. It boasts an impressive storage capacity of 7ft3 (102: 20oz bottles, or 217: 12oz cans). The durable 1/8 HP motor that powers the compressor in the bottom of this unit efficiently cools the interior cabinet with a forced air evaporator for quick cool down. It’s Automatic hot gas loop on front edge of cabinet prevents condensation particularly in hot humid environments!

The durable white painted aluminum exterior, white steel interior with stainless steel floor and bright energy efficient led interior product lights showcases any product within! The RM-7-HC-WHT includes (2 adjustable, 1 floor) white epoxy coated wire coated wire shelves with product stops, comes standard with (4) 2″ leveling legs, and it features an dependable interior dial controller and side mount themometer (°f or °c). Optional kits: Floor epox y shelf, Additional epoxy shelf. The unit is UL EPH Listed, UL Listed and includes a five years compressor warranty / three years parts and labor warranty.

  • Dimensions: 21″ W x 25.25″ D x 39″ H
  • Storage capacity of 7ft3 (102: 20oz Bottles, or 217: 12oz Cans)
  • Nominal Compres. of 582 BTU/hr at 1/8 HP
  • Electrical consumption of 1.38 kWh/day at 3.2 Amps, 8 ft long cord with a 5 – 15P NEMA plug
  • Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product
  • Large glass swinging door is energy efficient Low-E multi pane glass
  • Door frame recessed handle
  • Doors are mounted on heavy duty hinges with self-closing mechanism
  • Forced air evaporator for quick temperature pull down
  • Insulated with environmentally friendly CFC-Free Polyurethane with cyclopentane blowing agent
  • White painted aluminum exterior, white steel interior with stainless steel floor
  • Dependable interior dial controller and side mount themometer (°F or °C)
  • R290 refrigerant
  • Energy efficient LED interior product lights
  • Refrigerant flow is controlled with a capillary tube
  • Includes (2 adjustable, 1 floor) white epoxy coated wire coated wire shelves with product stops
  • Stainless steel shelf clips adjustable in 1/2″ increments on anodized aluminum supports
  • Standard with (4) 2″ Leveling Legs
  • Optional kits: Floor epox y shelf, Additional epoxy shelf
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 28″ L x 24.5″ D x 44″ H at 180 lbs
  • Automatic hot gas loop on front edge of cabinet prevents condensation
  • Five Years compressor warranty, Three Years parts and labor warranty
