RIR1-SSB, Refrigerator, Single Section Roll-In Upright, Full Stainless Door with Lock / RIR1-SSB, Refrigerator, Single Section Roll-In Upright, Full Stainless Door with Lock

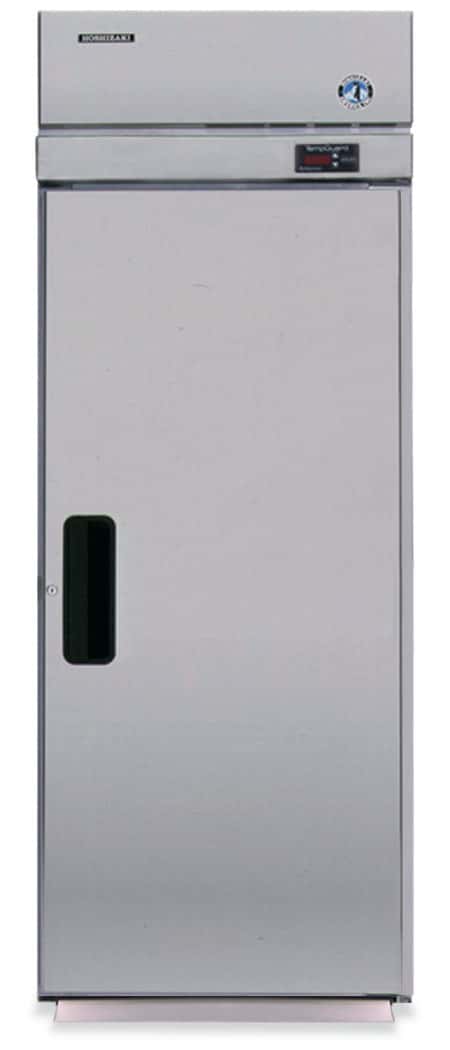

RIR1-SSB Refrigerator, Single Section Roll-In Upright, Full Stainless Door with Lock

35″ W X 38.5″ D X 90.6″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 5.5 kwh/day, Amperage: 7, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 36 – 50°F, , Refrigerant: R-404A
Refrigeration Data
Nominal Compres. of 1490 BTU/hr at 1/5 HP, Heat Rejection: 1135 BTU/hr
Shipping Weight
500
Storage Specs
Nominal Storage Capacity: 37.7ft3, Interior Storage Capacity: 37.7ft3, Door Opening: 29.4″ W x 72.8″ H , Depth with Door fully extended: 90.6″ D, Shelves Included: 1
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The RIR1-SSB Professional Series Roll-In Single Section Refrigerator with a Full Stainless Door and Flush mount door handles is perfect for any professional. The reliable 1/5 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The RIR1-SSB frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The RIR1-SSB Includes 1 rack, and comes Standard with 4″ ramp, it features Metal torsion spring door hinge design with stay open feature (hinging reversible at the factory). The unit is NSF and includes a Five Years compressor warranty / Three Years parts and labor warranty.

  • Dimensions: 35″ W x 38.5″ D x 90.6″ H
  • Net capacity of 37.7 cubic feet
  • Nominal Compres. of 1490 BTU/hr at 1/5 HP
  • Electrical consumption of 5.5 kWh/day at 7 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Metal torsion spring door hinge design with stay open feature (hinging reversible at the factory)
  • Flush mount door handles
  • Cabinet will accept 72″ tall rack (rack by others)
  • Energy efficient thermostatic expansion valve self contained refrigeration system
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior and exterior
  • Stainless steel ramp, stainless steel interior rack guides, and insulated stainless steel floor
  • R-404a refrigerant
  • Dual door frame heaters with energy saving on/off switch
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Includes 1 rack
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Standard with 4″ ramp
  • Unique “ducted” air distribution system
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 40.75″ L x 39″ D x 95.4″ H at 500 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
