Refrigeration / Steelheart® Reach-Ins / Refrigerators / R3A-HGE, Refrigerator, Three Section Reach-In, Half Glass Doors with Locks

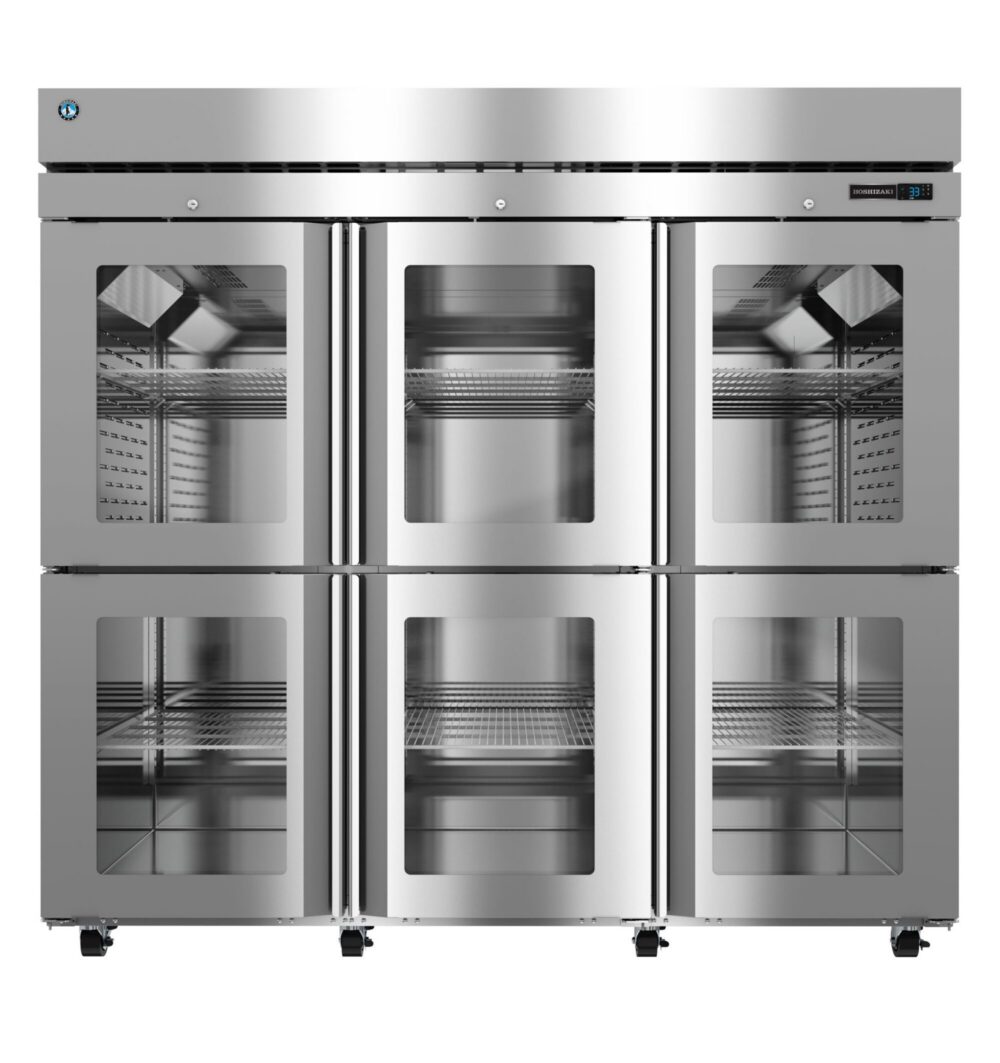

Six-door commercial stainless steel refrigerator with glass doors, interior shelving, and digital temperature display in the upper right corner.

Large commercial stainless steel refrigerator with six glass doors, wire shelves, digital temperature display, and wheels at the base.

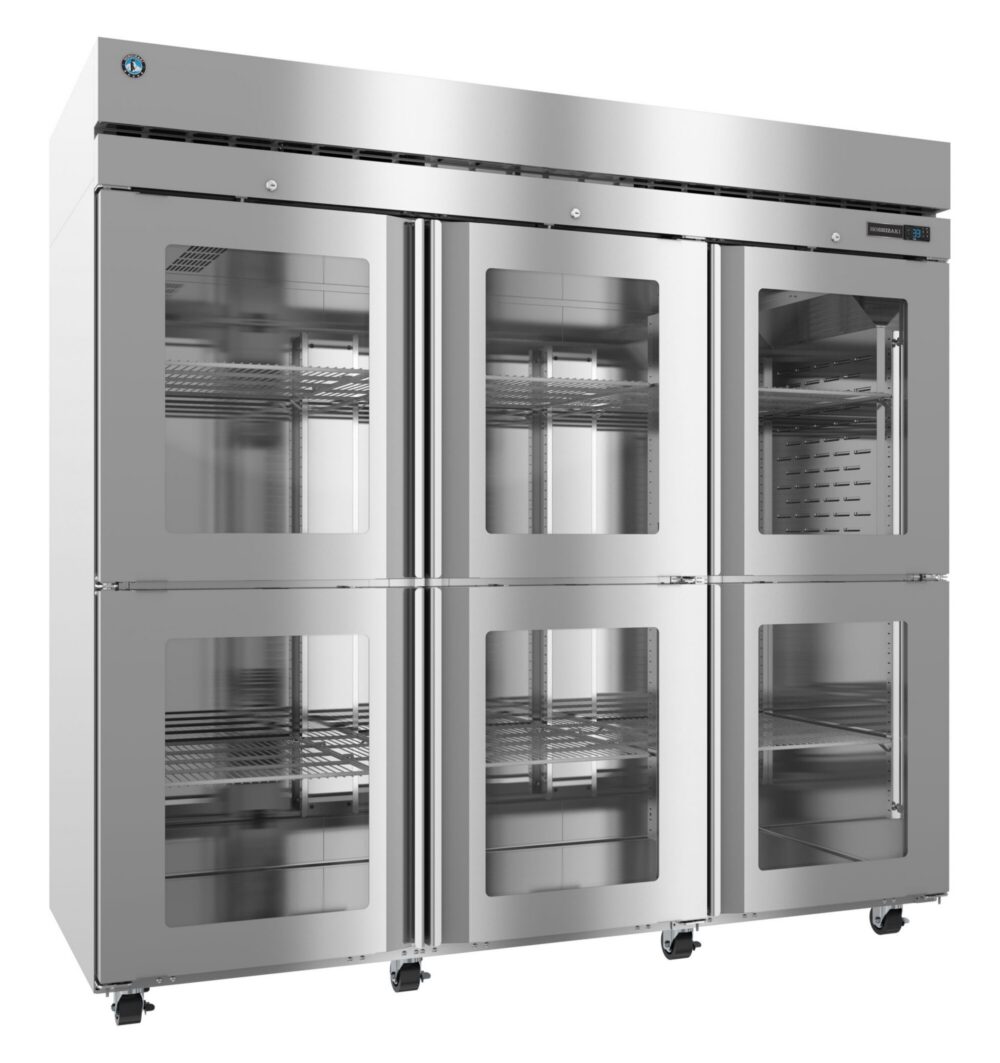

Stainless steel commercial refrigerator with six glass doors, interior shelving, and caster wheels, suitable for restaurant or industrial kitchens.

R3A-HGE Refrigerator, Three Section Reach-In, Half Glass Doors with Locks

Name: R3A-HG, Refrigerator, Three Section Upright, Half Glass Doors with Lock
Brand: Hoshizaki
SKU: R3A-HG

82.5″ W X 33.5″ D X 79.5″ H

Volume

79.03

Electrical

115v/60/1

Sections

Request a Quote Find a Distributor

Parts and Service

Downloads

Alternate Configurations

A commercial stainless steel three-door glass display refrigerator with empty shelves and interior lighting, shown on wheels.

Stainless steel commercial refrigerator with four glass doors, interior shelving, and a digital temperature display on the upper right.

Electrical Specs

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 6.5 kwh/day, Amperage: 9.5, Max Fuse/HACR Breaker: 15A

Operating Limits

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290 (4.6 oz.)

Refrigeration Data

Nominal Compres. of 770 BTU/hr at 1/4 HP, Heat Rejection: 1255 BTU/hr

Shipping Weight

840 lbs.

Storage Specs

Interior storage capacity: 79.03 ft3, Door opening: 21.75″ W (per door) x 27.25″ H (per door), Depth with doors fully extended: 59.25″ D, Shelves included: 9

Warranty

7 Years: Labor, 7 Years: Parts, 7 Years: Compressor

Overview and Features

The R3A-HGE Steelheart® Series three-section half glass-door reach-in refrigerator delivers reliable temperature performance and quick ingredient identification for commercial kitchens. A solid-state digital control system with temperature alarms and an easy-to-read LED display (°F or °C) helps maintain consistent temperatures. Durable stainless steel construction withstands daily use and simplifies cleaning, while the front-breathing airflow design allows flexible placement in tight kitchen spaces.

Dimensions: 82.5″ W x 33.5″ D x 79.5″ H
Net capacity of 79.03 cubic feet
Unique ducted airflow ensures even cooling throughout entire cabinet
Thermostatic Expansion Valve (TXV) system quickly and effectively regulates refrigerant flow to control temperatures
Solid state digital controller with temperature alarms and LED display (°F or °C)
Cabinet walls are insulated with 2-3/8” of CFC-free, foamed in place polyurethane
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field-reversible, self-closing, lockable multi-pane argon-filled glass doors with 90° stay-open feature
Extruded aluminum flush mount door handles
Energy-efficient interior LED light
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Energy-efficient automatic hot gas condensate evaporator
Top-mount refrigeration comes standard with a condenser filter
Environmentally friendly R290 hydrocarbon refrigerant
(8) 4″ stem casters (4 with brakes) are standard
Includes (9) epoxy-coated wire shelves adjustable in 1″ increments on stainless steel supports
ENERGY STAR® Qualified
