KMH-2000SWH, Crescent Cuber Icemaker, Water-cooled / KMH-2000SWH, Crescent Cuber Icemaker, Water-cooled

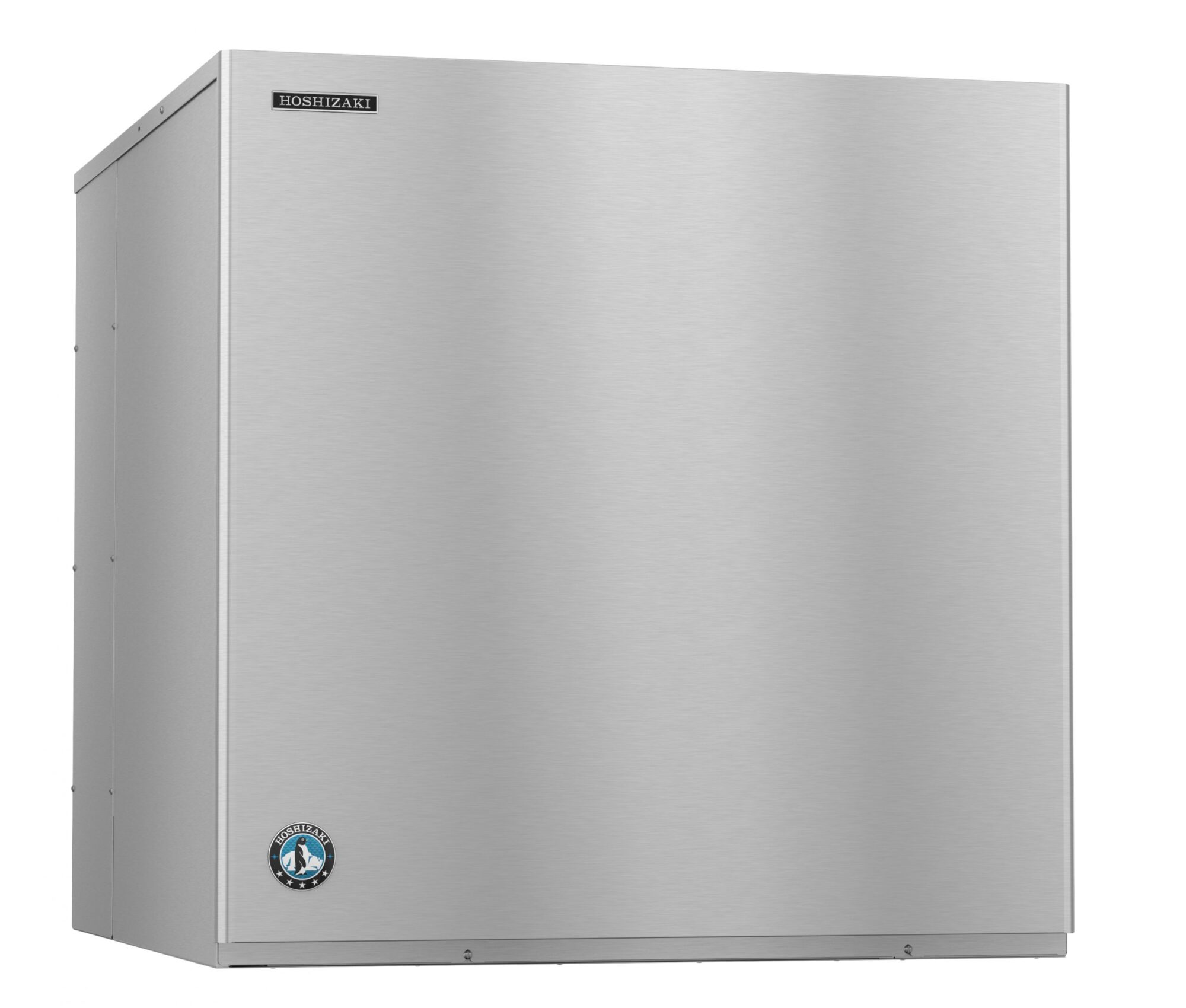

KMH-2000SWH Crescent Cuber Icemaker, Water-cooled

36″ W X 40″ D X 36″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required, Amperage: 12.1, Max Fuse/HA
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (3 lbs. 1.4 oz. / 1400 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalen
Shipping Weight
415
Utility Consumption
3.3 kWh per 100 lbs @ 90/70, 17.5 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The KMH-2000SWH is capable of producing approximately 1821 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable, High Capacity icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMH-2000SWH requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: Kloppenberg 2115. Please consult the Specification Sheet for additional details.

[fusion_button link=”https://hoshizakiamerica.com/product/KMH-2000SWH3/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY KMH-2000SWH3[/fusion_button]

  • Dimensions: 36″ W x 40″ D x 36- 7/16″ H
  • Up to 1821 lbs of ice produced per 24 hours
  • Stack 2 units for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: Kloppenberg 2115
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (3 lbs. 1.4 oz. / 1400 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 12.1 amps (30 Amp Max fuse)
  • 3.3 kwh/100 lbs.@ 90/70
  • Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
