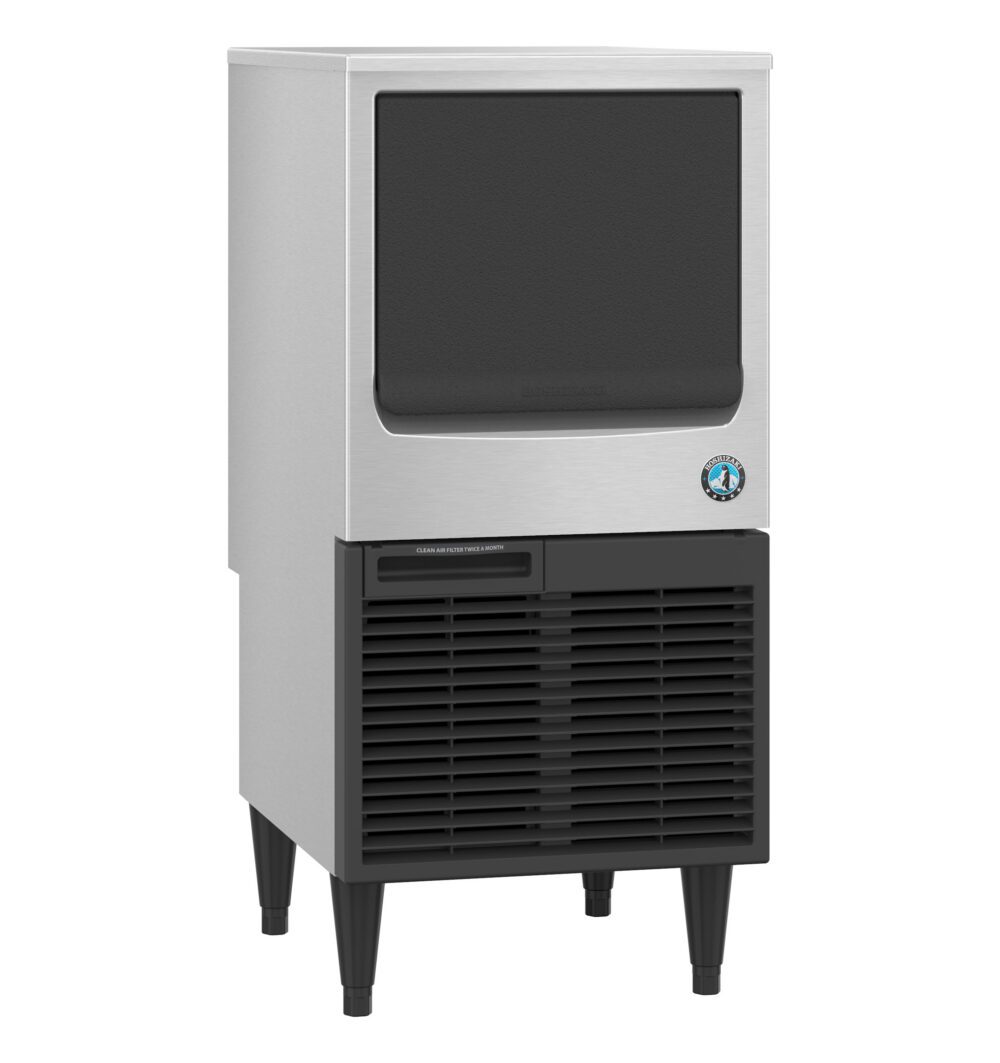

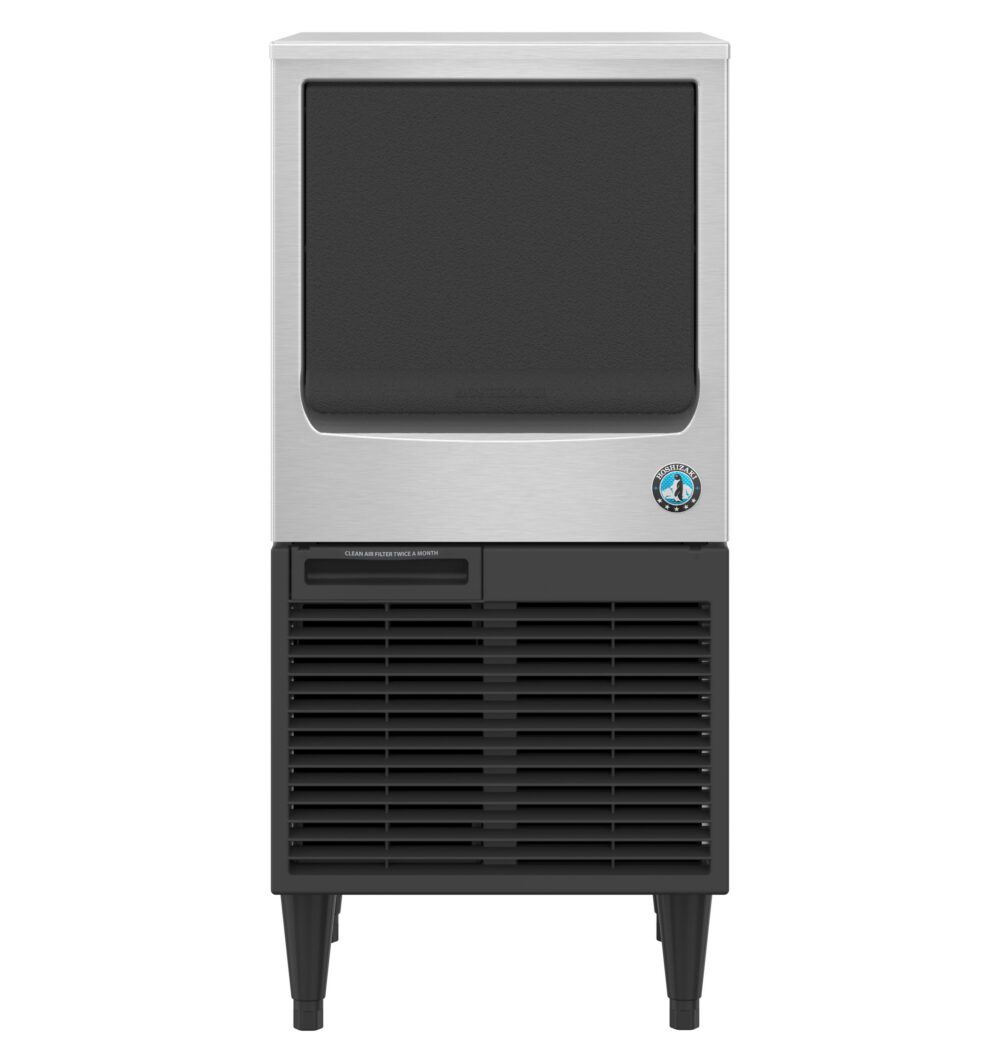

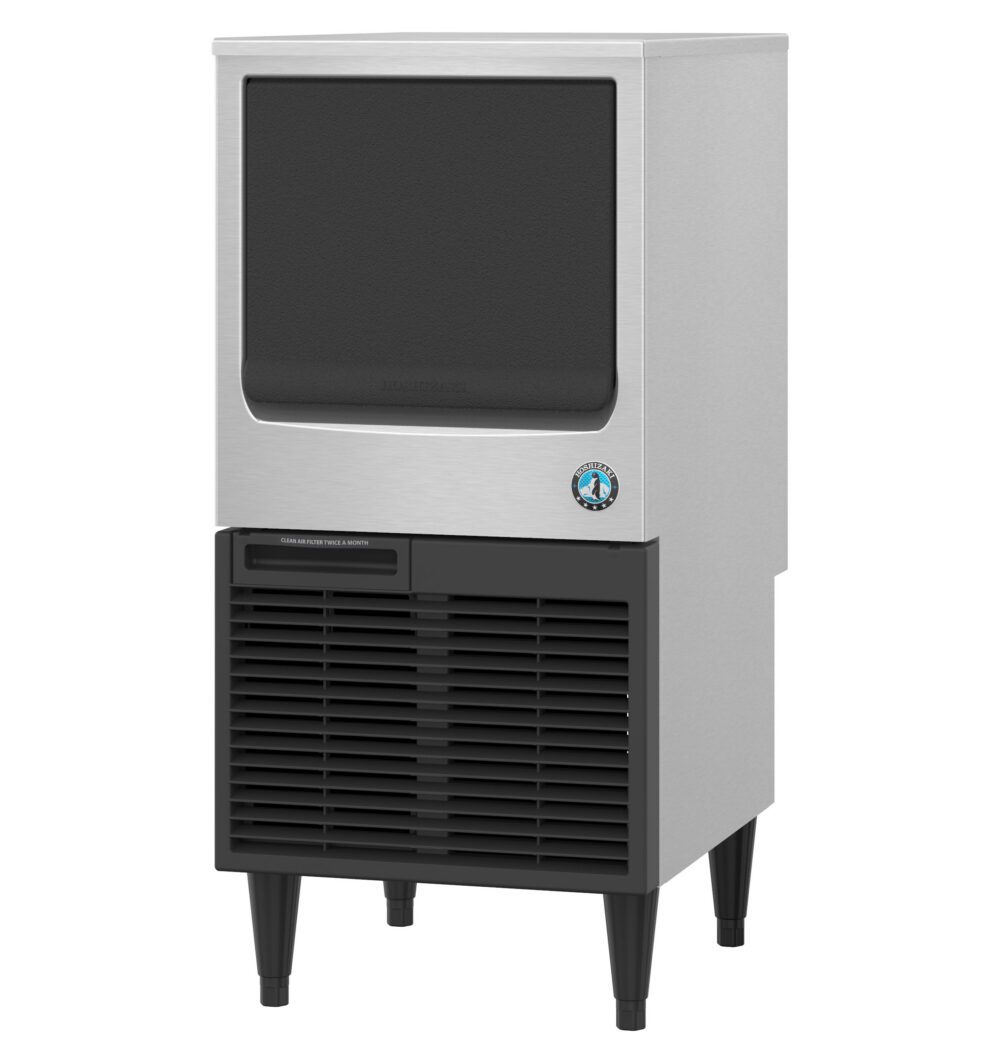

KM-81BAK Crescent® Cuber Ice Machine, Air-cooled, Built-in Storage Bin
17.75″ W X 24″ D X 39″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Crescent
Daily Ice
98
Parts and Service
Alternate Configurations
Electrical Specs
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 2.4, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 108 – 122V, Heat Rejection: 1,800 BTU/hr, Refrigerant Charge: R290 (3 oz.)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
125 lbs.
Utility Consumption
5.6 kWh per 100 lbs. @ 90/70, 22 gal of Potable Water per 100 lbs. @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
Overview and Features
The KM-81BAK produces up to 98 lbs. of crescent ice per day, perfect for small bars, hotel lobbies, and office break rooms. This air-cooled, self-contained unit features a built-in storage bin that stores up to 38 lbs. of ice at a time*, CycleSaver™ design, and includes the EverCheck™ alert system making the unit simple to maintain. With front-in, front-out airflow, it’s designed for efficient placement in a variety of operations.
*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft³ average ice density.
- Dimensions: 17-3/4″ W x 24″ D x 39″ H
- Up to 98 lbs. of ice produced per 24 hours
- Up to 38 lbs. of built-in storage capacity (1.3ft3)
- Produces crescent-shaped ice
- Stainless steel evaporator
- Durable stainless steel exterior
- Front-in, front-out airflow
- EverCheck™ alert system
- CycleSaver™ design
- Convenient slide-in door
- Removable air filter
- Environmentally friendly R290 hydrocarbon refrigerant
- ENERGY STAR® qualified
