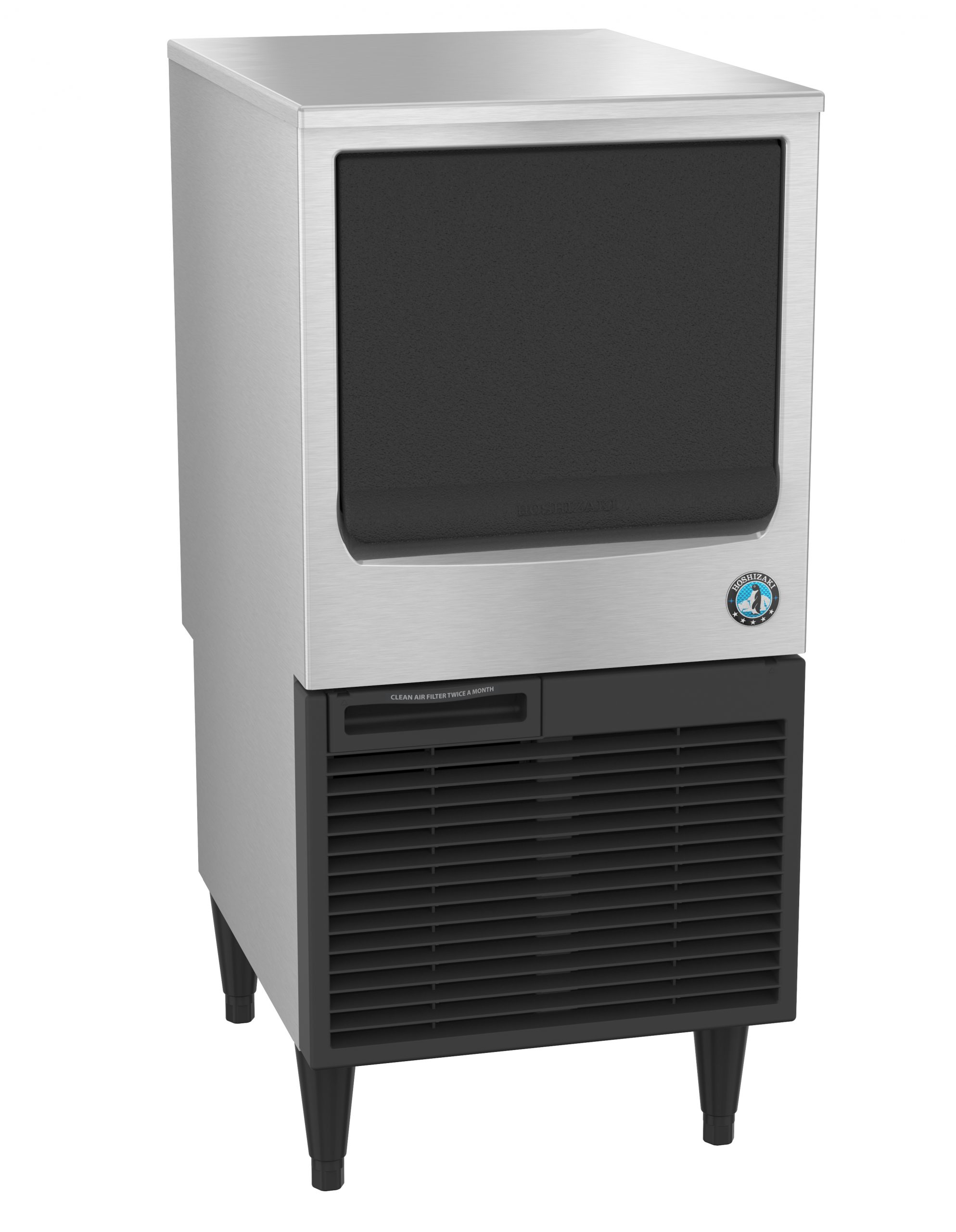

KM-61BAH Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
17″ W X 24″ D X 39″ H
Parts and Service
Electrical Specs
Single phase, 115v/60/1 6.5 ft cord with NEMA 5-15 Plug, Amperage: 3.4, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1350 BTU/hr, Refrigerant Charge: R-134a, (7.1 oz. / 200 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
121
Utility Consumption
10.6 kWh per 100 lbs @ 90/70, 20.6 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.
Overview and Features
The KM-61BAH is capable of producing approximately 71 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 38 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-61BAH requires a Single phase, 115v/60/1 6.5 ft cord with NEMA 5-15 plug electrical connection. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
[fusion_button link=”https://hoshizakiamerica.com/product/KM-80BAJ/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY KM-80BAJ[/fusion_button]
- Dimensions: 17-3/4″ W x 24-1/4″ D x 39″ H
- Up to 71 lbs of ice produced per 24 hours
- Up to 38 lbs of built-in storage capacity (1.3ft3)
- Produces crescent shaped ice cubes
- Slide in door with durable stainless steel exterior
- Front in, front out airflow
- EverCheck™ alert system
- CycleSaver™ design
- HS-5061 drain pump assembly, sold separately
- R-134a refrigerant (7.1 oz. / 200 g)
- Heat Rejection:1350 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 3.4 amps (15 Amp Max fuse)
- 10.6 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1 6.5 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
