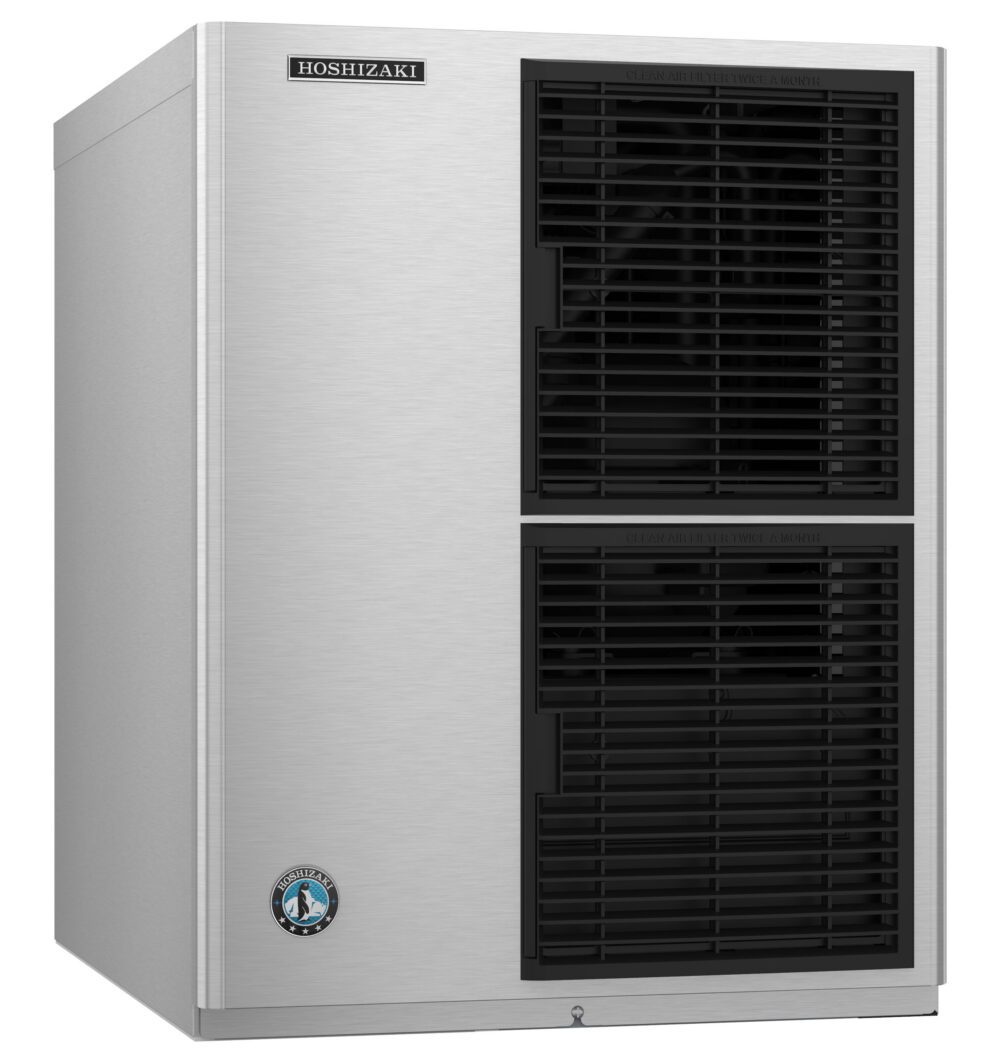

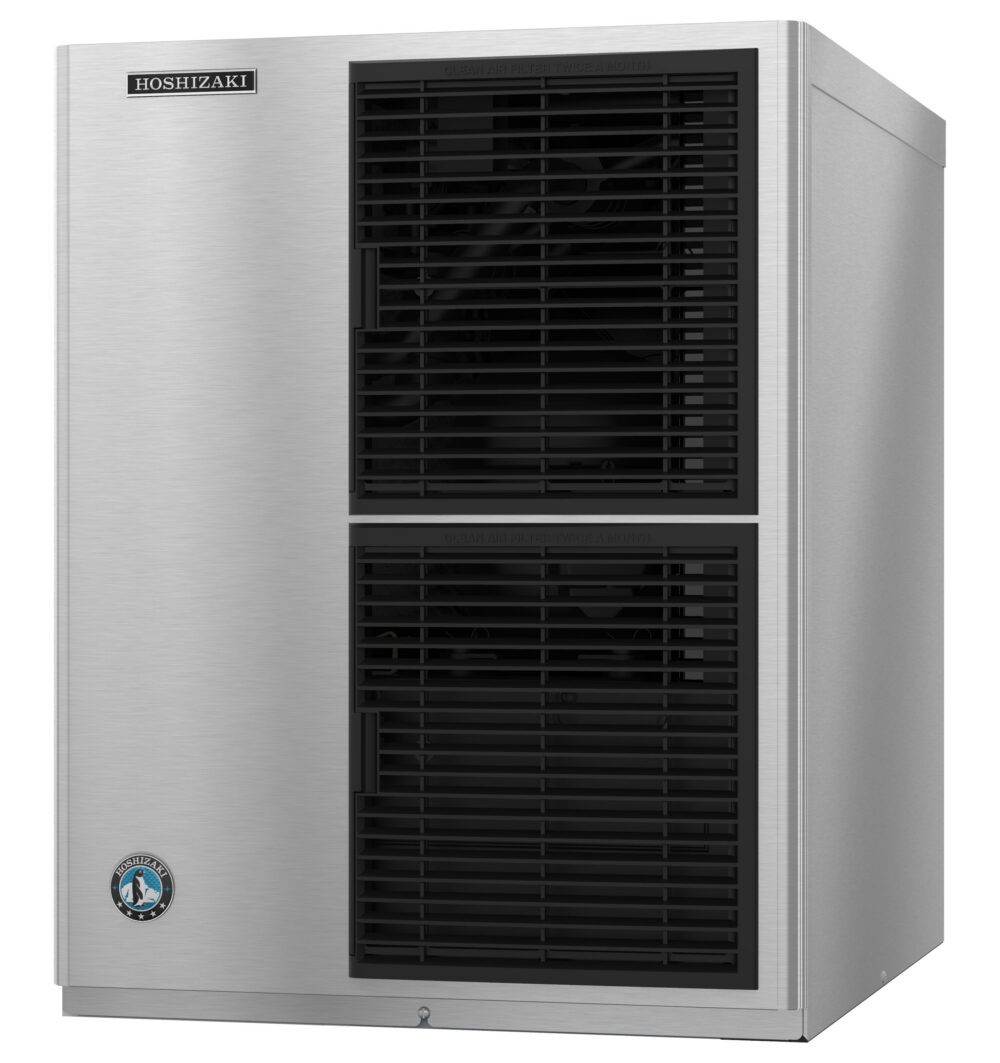

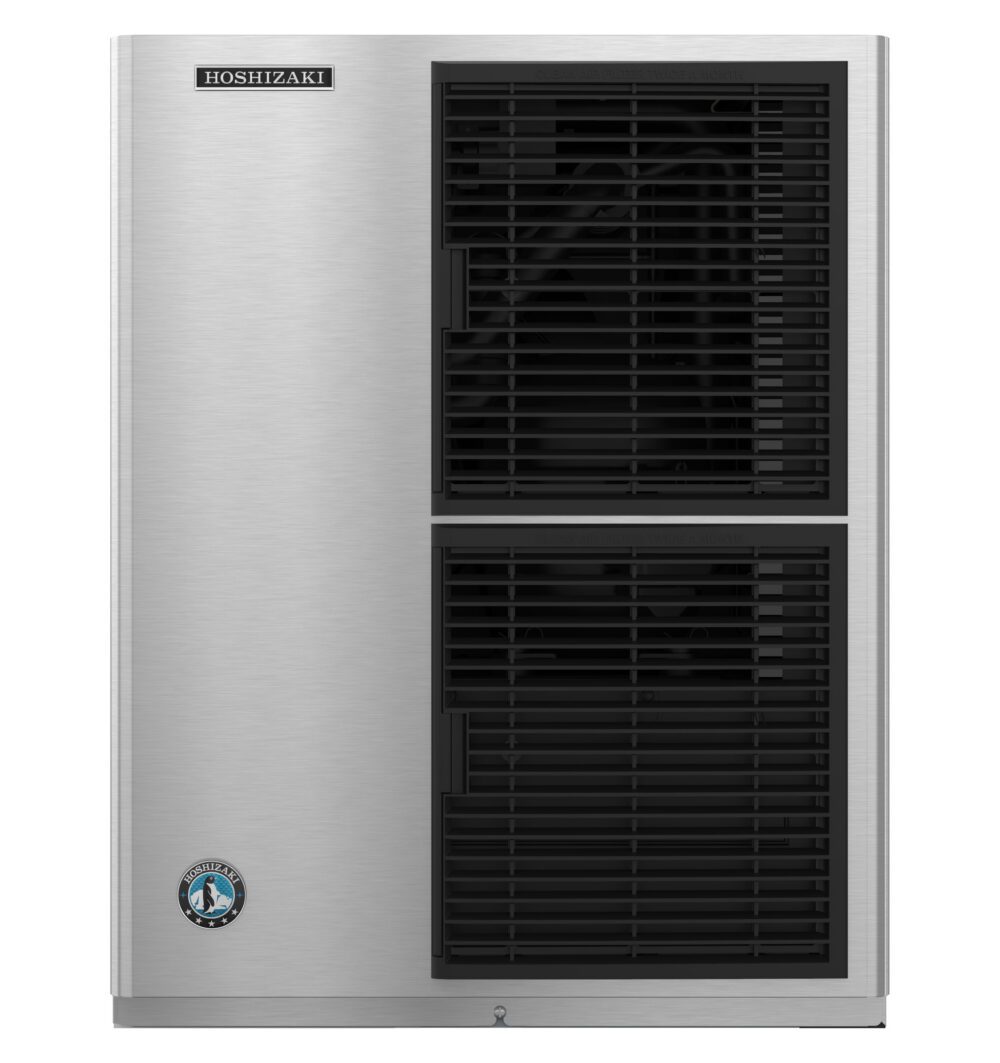

KM-522MAK Crescent® Cuber Ice Machine, Air-cooled
22″ W X 27.375″ D X 28″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Crescent
Daily Ice
548
Parts and Service
Alternate Configurations
Electrical Specs
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 10.8, Max Fuse/HACR Breaker: 20A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8,400 BTU/hr, Refrigerant Charge: R290 (5.3 oz.)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
175 lbs.
Utility Consumption
5.15 kWh per 100 lbs. @ 90/70, 17 gal of Potable Water per 100 lbs. @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
Overview and Features
The KM-522MAK produces up to 548 lbs. of crescent ice per day, perfect for a wide range of applications. This air-cooled, Slim Line modular ice machine features a CycleSaver™ design, EverCheck™ alert system, CleanAssist for simple one-hour cleaning, and ultrasonic bin control for consistent ice levels.

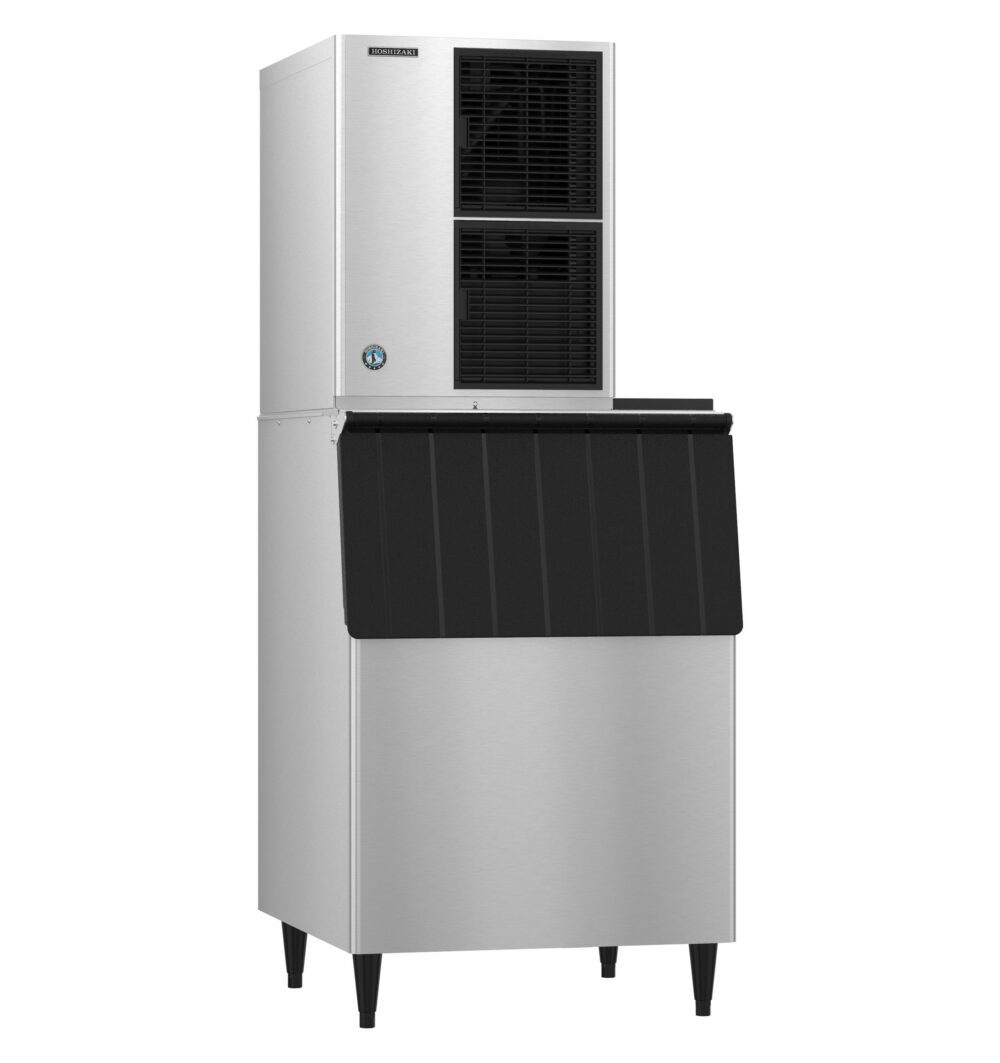

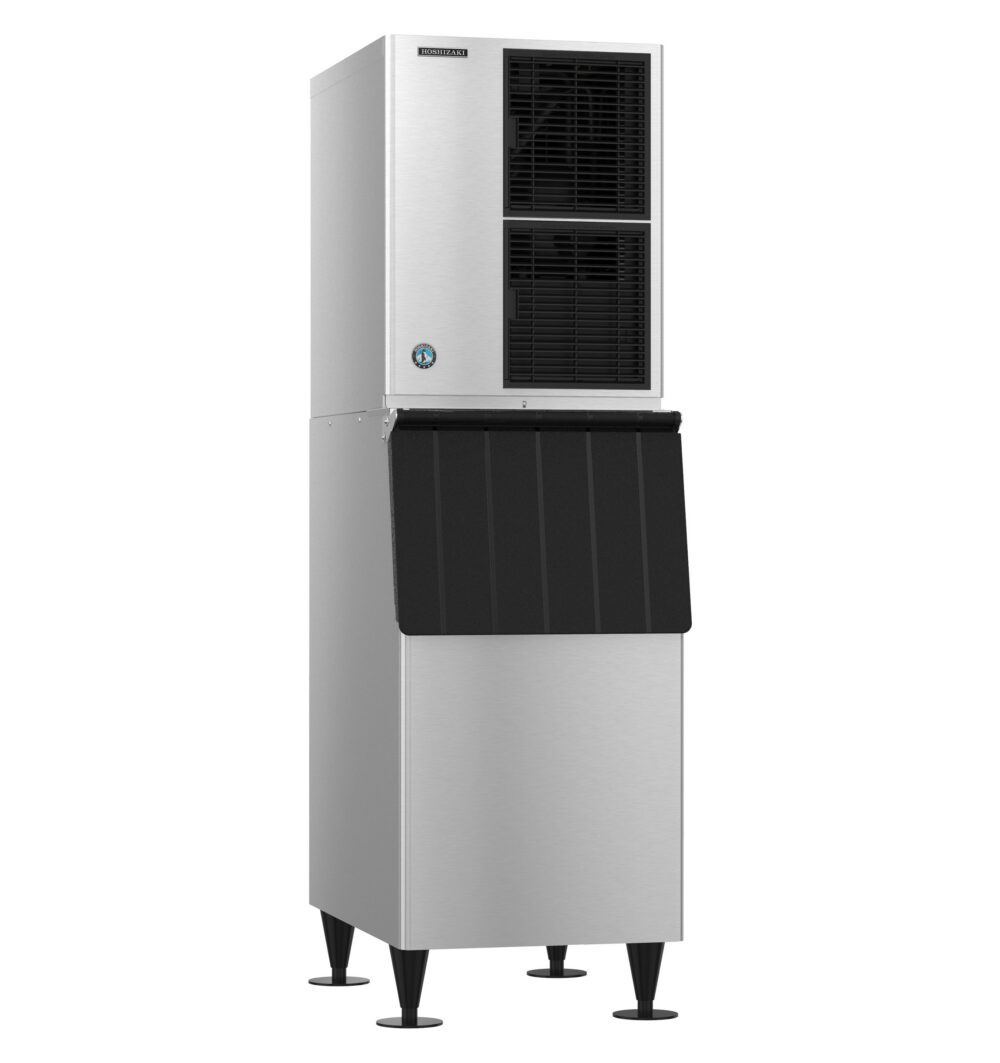

Compatible bins & dispensers: B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, DB-130H, DB-200H, DM-200B; sold separately. View BinsView Dispensers
- Dimensions: 22″ W x 27-3/8″ D x 28″ H
- Up to 548 lbs. of ice produced per 24 hours
- Mount two units side-by-side for 2x the ice production
- Produces crescent-shaped ice
- Stainless steel double-sided evaporator
- Durable stainless steel exterior
- Factory-installed ultrasonic bin control
- EverCheck™ alert system
- CycleSaver™ design
- CleanAssist simple, one-hour cleaning process
- Self-diagnostic programming automatically adjusts to changing conditions
- Snap-fit parts for easy cleaning
- Removable air filters
- Environmentally friendly R290 hydrocarbon refrigerant
- ENERGY STAR® qualified
