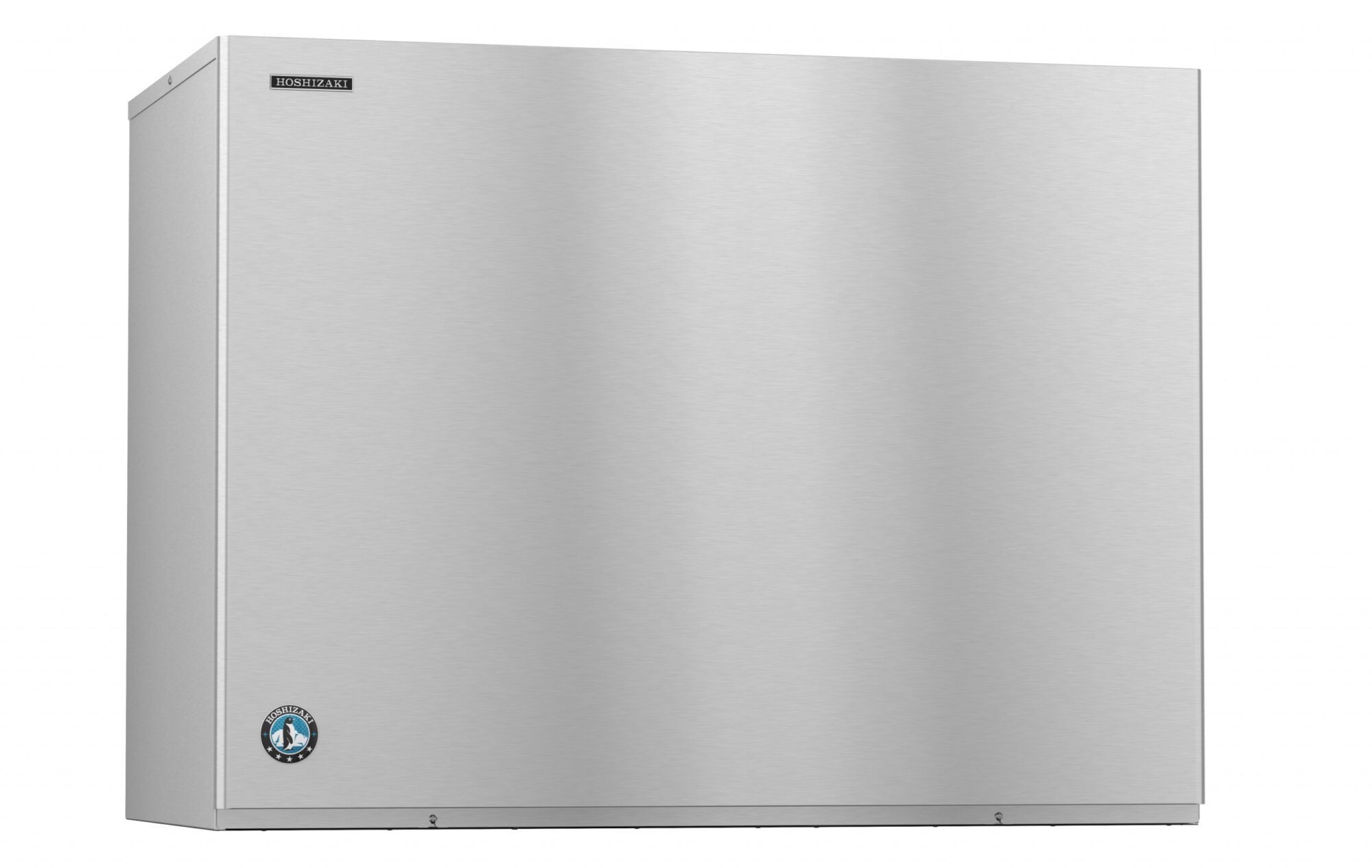

KM-2600SWJ3 Crescent Cuber Icemaker, Water-cooled, 3 Phase

48″ W X 27″ D X 36″ H
Cooling Type
Water-Cooled
Electrical
208-230v/60/3
Ice Type
Crescent
Daily Ice
2482
Alternate Configurations
Electrical Specs
Three phase, 208-230v/60/3 , Amperage: 12.8, Max Fuse/HACR Breaker: 30 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (3 lbs. 7.7 oz. / 1580 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 3/8″ Nominal ID Hard Pipe or Equivalent, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent
Shipping Weight
425
Utility Consumption
3.6 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The KM-2600SWJ3 is capable of producing approximately 2482 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable, 3 Phase icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-2600SWJ3 requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. KMD-26026SWJ.

  • Dimensions: 48″ W x 27-3/8″ D x 36-7/16″ H
  • Up to 2482 lbs of ice produced per 24 hours
  • Stack 2 units for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior

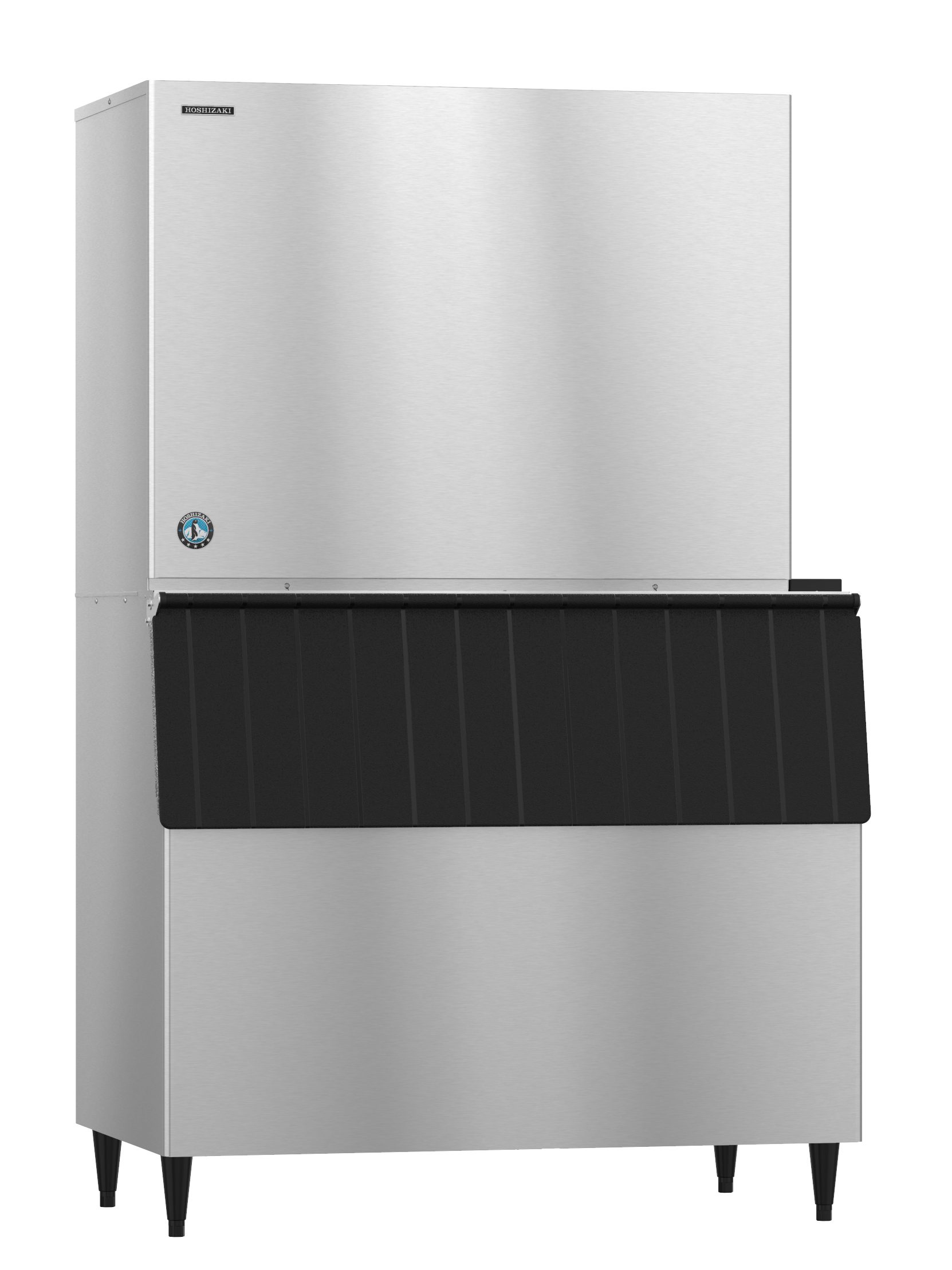

  • Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (3 lbs. 7.7 oz. / 1580 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 12.8 amps (30 Amp Max fuse)
  • 3.6 kwh/100 lbs.@ 90/70
  • Three phase, 208-230v/60/3
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
