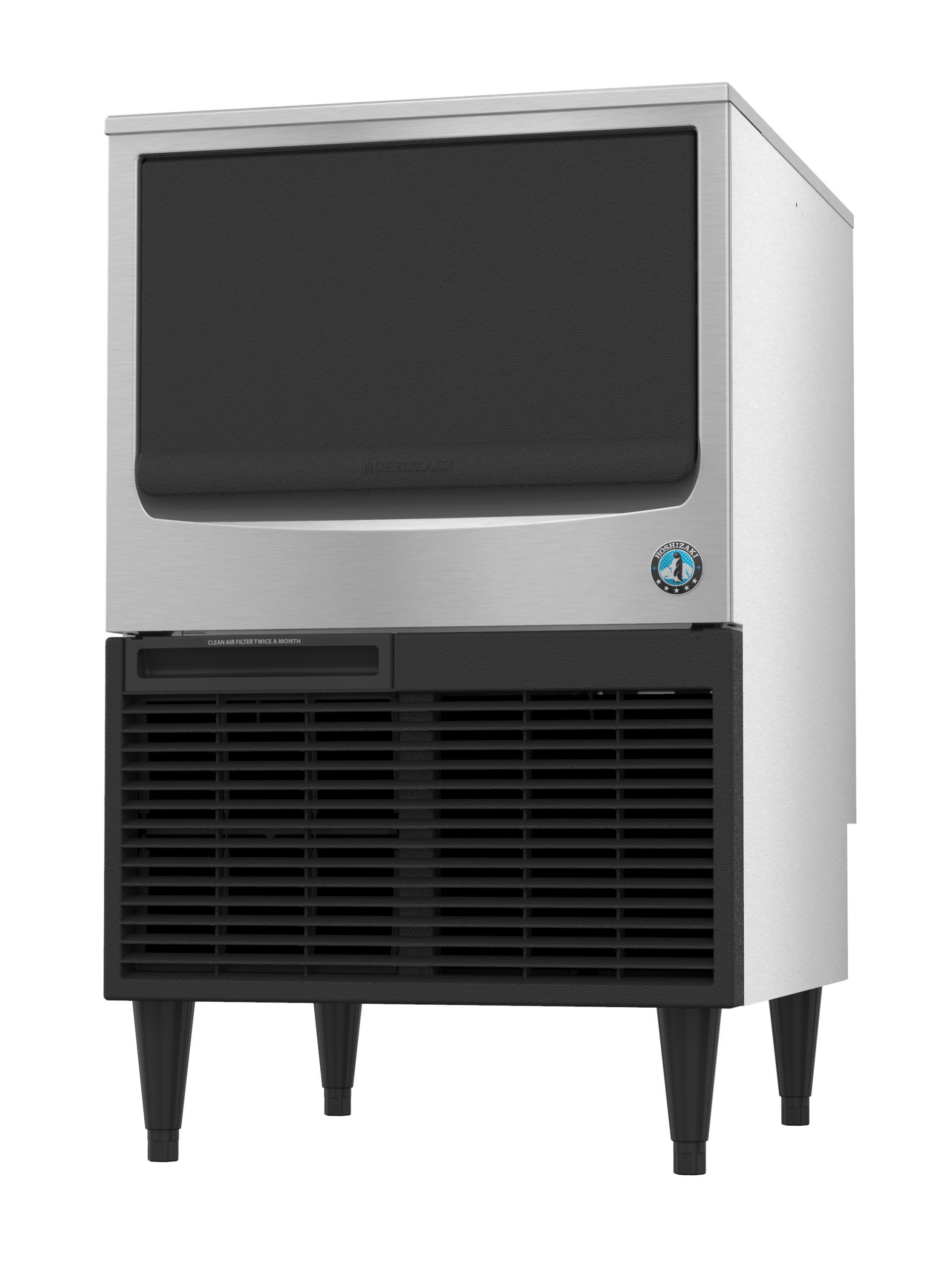

KM-161BAJ Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
23″ W X 28″ D X 39″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Crescent
Daily Ice
163
Parts and Service
Electrical Specs
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 7.1, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3050 BTU/hr, Refrigerant Charge: R-134a, (7.4 oz. / 210 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight
160
Utility Consumption
8.6 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.
Overview and Features
The KM-161BAJ is capable of producing approximately 163 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-161BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. KMD-16116BAJ.
- Dimensions: 23-3/4″ W x 28″ D x 39″ H
- Up to 163 lbs of ice produced per 24 hours
- Up to 78 lbs of built-in storage capacity (2.6ft3)
- Produces crescent shaped ice cubes
- Slide in door with durable stainless steel exterior
- Front in, front out airflow
- EverCheck™ alert system
- CycleSaver™ design
- Slide in door, ice bin opening is ADA compliant
- R-134a refrigerant (7.4 oz. / 210 g)
- Heat Rejection:3050 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 7.1 amps (15 Amp Max fuse)
- 8.6 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
