KM-1301SWH-E, Crescent Cuber Icemaker, Water-cooled, 50Hz Electrical / KM-1301SWH-E, Crescent Cuber Icemaker, Water-cooled, 50Hz Electrical

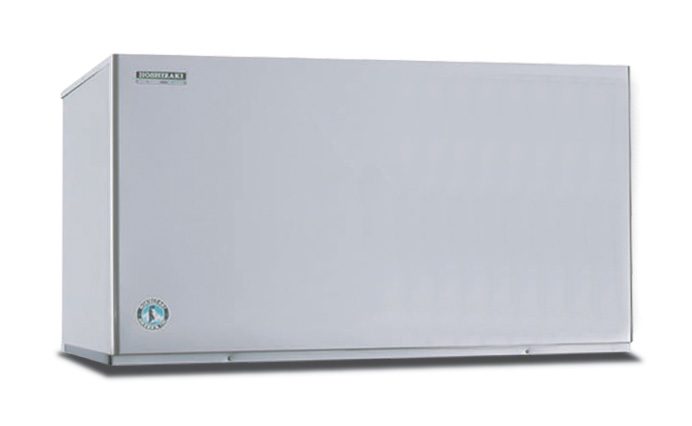

KM-1301SWH-E Crescent Cuber Icemaker, Water-cooled, 50Hz Electrical

48″ W X 27″ D X 27″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
50Hz electrical, 220-240v/50/1 , Amperage: 10.7, Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 7 – 38°C, Water Temp Range: 7 – 32°C, Water Pressure: 0.7 – 8 kg/cm2, Voltage Range: 198 – 254V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, ( / )
Plumbing Specs
1/2″ FPT Inlet, Minimum 10 mm Nominal OD Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 10 mm Nominal OD Hard Pipe or Equivalent, Minimum 10 mm Nominal OD Copper Water Tubing or Equivale
Shipping Weight
143
Utility Consumption
3.5 kWh per 100 lbs @ 90/70, 59 gal of Potable Water per 100 lbs @ 90/70
Warranty
Warranty: Contact factory for warranty information.

Overview and Features

The KM-1301SWH-E is capable of producing approximately 603 kg of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1301SWH-E requires a 50Hz electrical, 220-240v/50/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

[fusion_button link=”https://hoshizakiamerica.com/product/DISCONTINUED/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]DISCONTINUED[/fusion_button]

  • Dimensions: 122cm W x 69-1/2cm D x 69-1/2cm H
  • Up to 603 kg of ice produced per 24 hours
  • Stack 2 units for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior

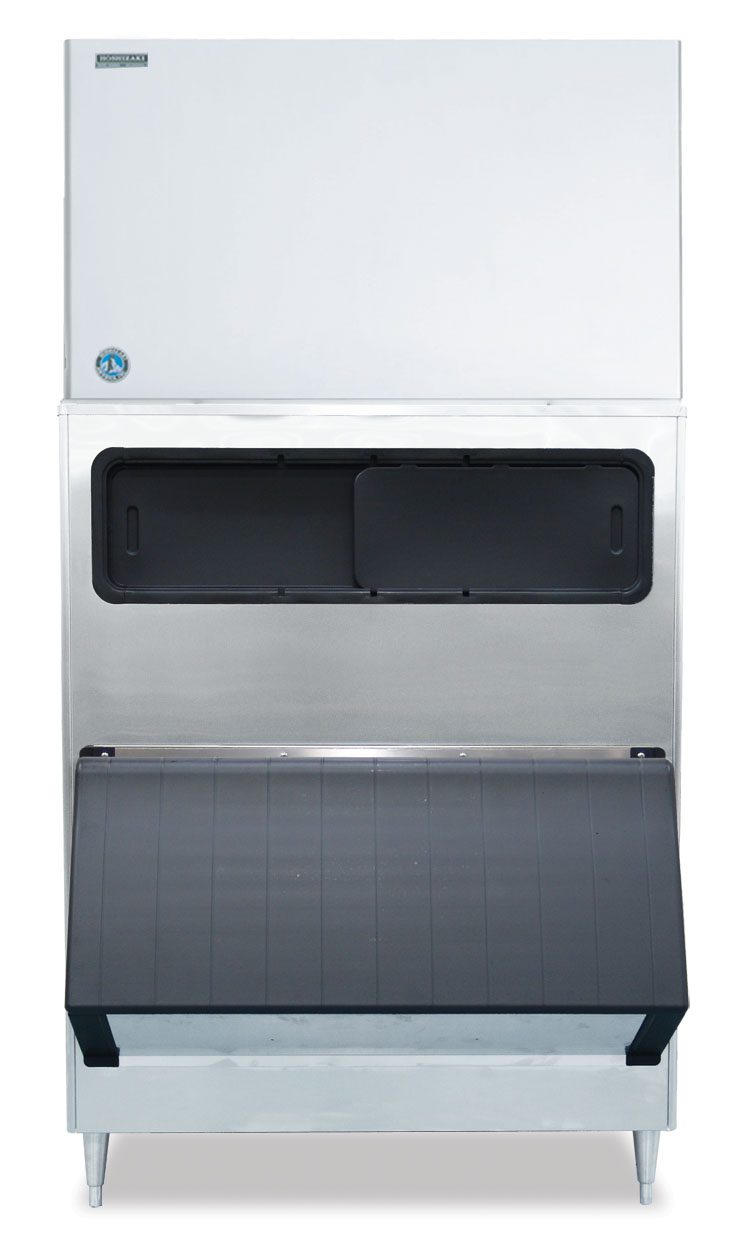

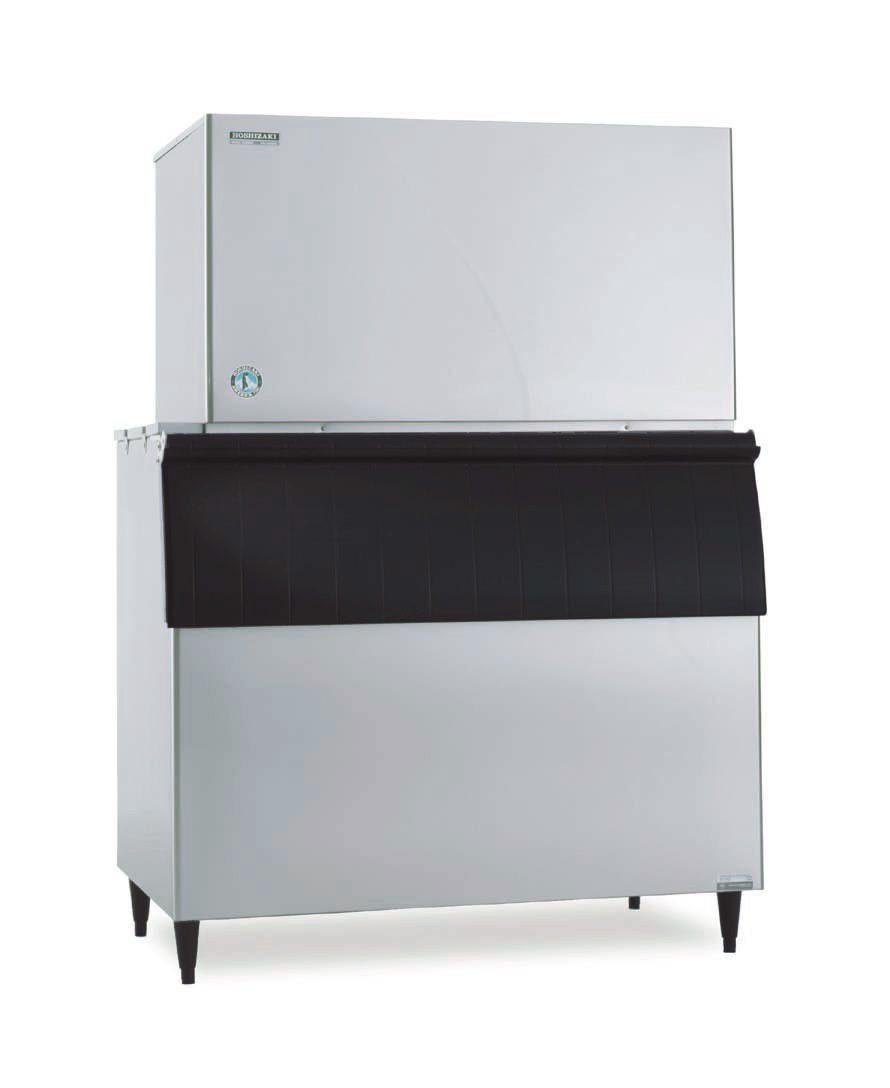

  • Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant ( / )
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 7 – 38°C
  • Water temperature range: 7 – 32°C
  • Water pressure: 0.7 – 8 kg/cm2
  • Voltage range: 198 – 254V
  • 10.7 amps (20 Amp Max fuse)
  • 3.5 kwh/100 lbs.@ 90/70
  • 50Hz electrical, 220-240v/50/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Warranty: Contact factory for warranty information.
  • “-E”: 50Hz Electrical Model
