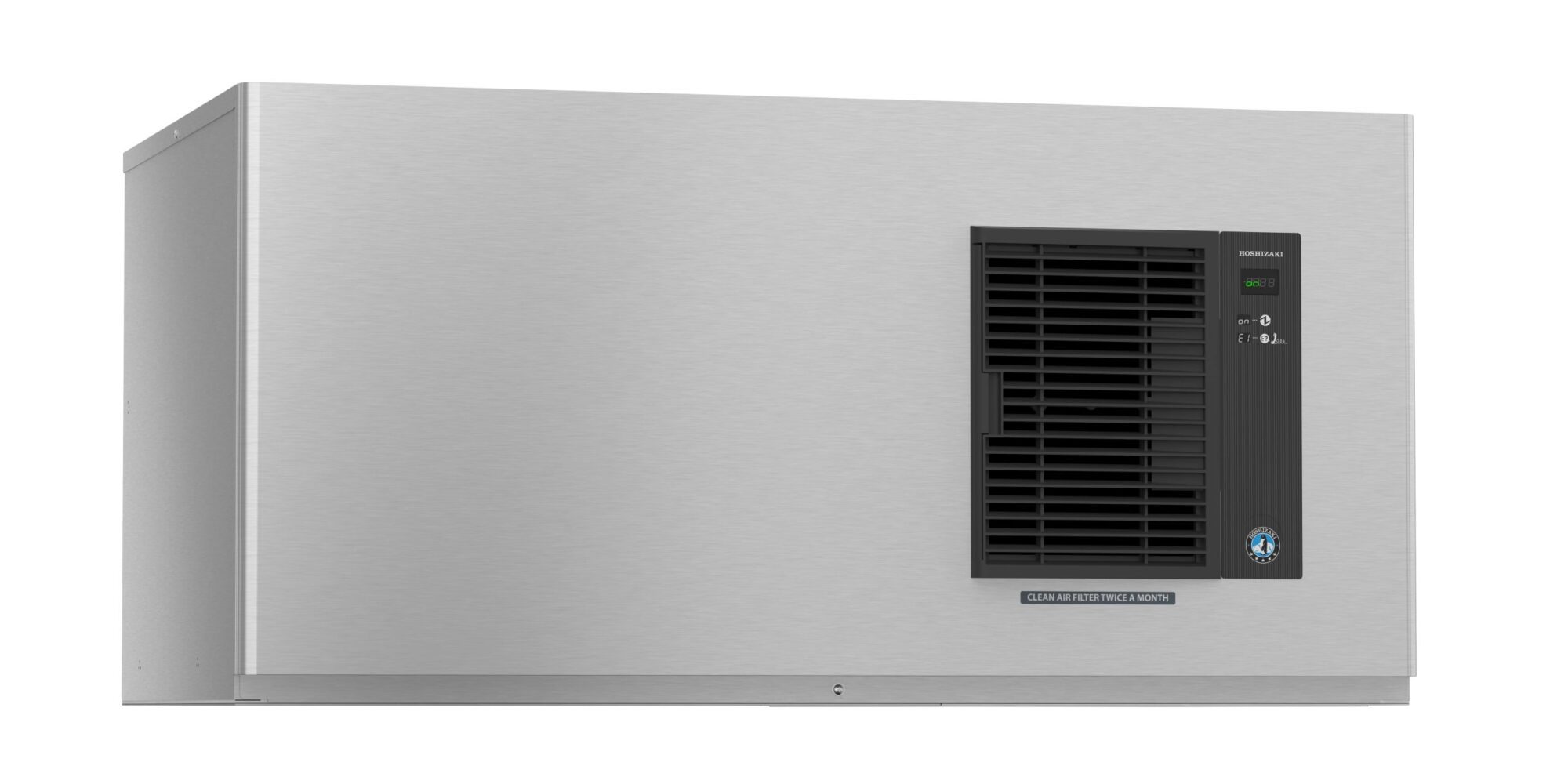

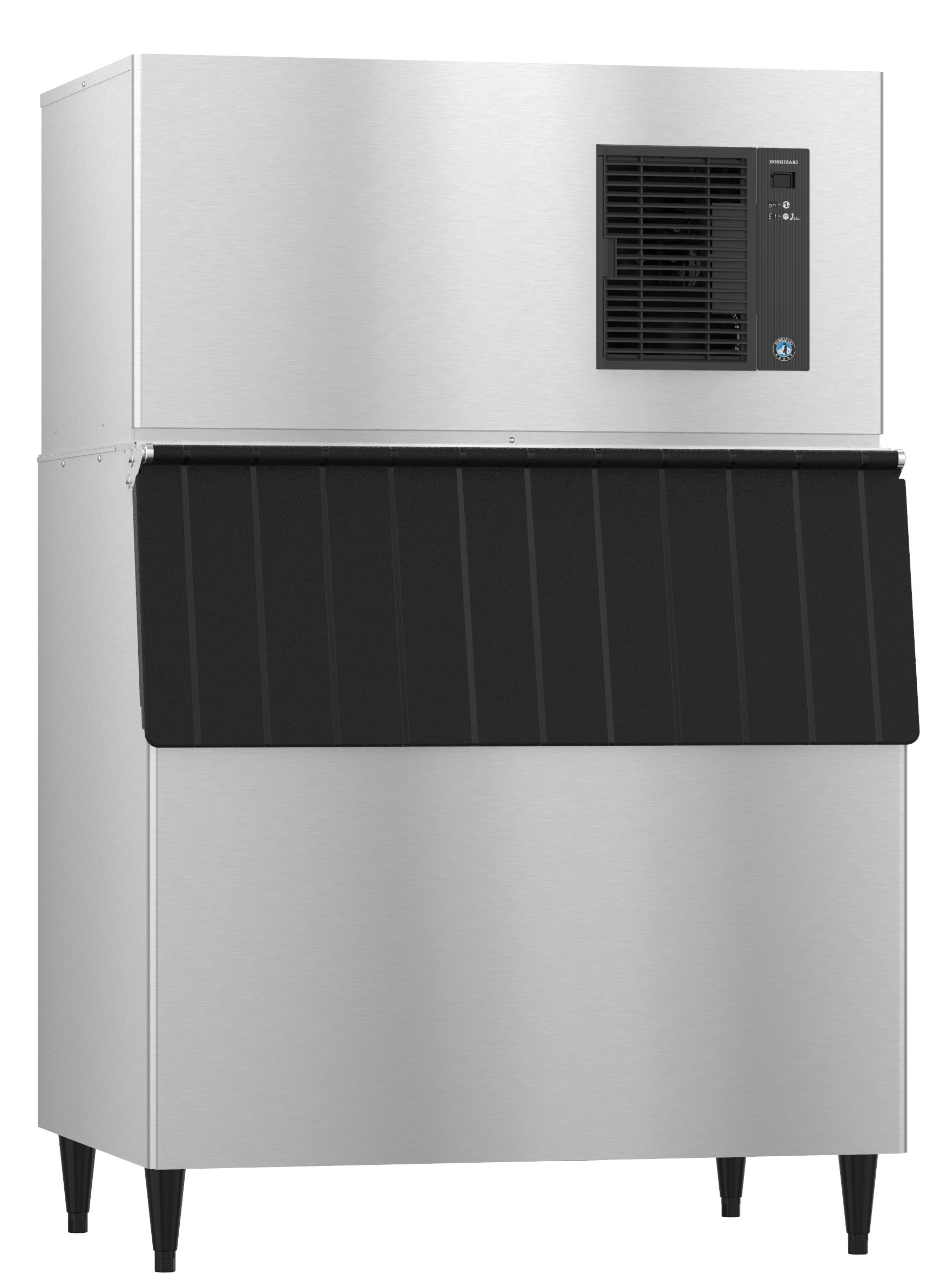

IM-500SAA Square Cuber Icemaker, Air-cooled
44″ W X 27.625″ D X 21.75″ H
Parts and Service
Electrical Specs
Single phase, 115v/60/1 Must be hardwired at site, no cord/plug included, Amperage: 11.5, Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (26.5 oz. / 750 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
230
Utility Consumption
5.45 kWh per 100 lbs @ 90/70, 19.8 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Overview and Features
The IM-500SAA is capable of producing approximately 500 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Stackable icemaker features the EverCheck™ digital control system with LED display detects potential problems and notifies the operator before excessive maintenance or repair. The IM-500SAA requires a Single phase, 115v/60/1 Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-700, B-800, B-900. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.
- Discontinued – Replaced by IM-500SAB
- Dimensions: 44″ W x 27-5/8″ D x 21-3/4″ H
- Up to 500 lbs of ice produced per 24 hours

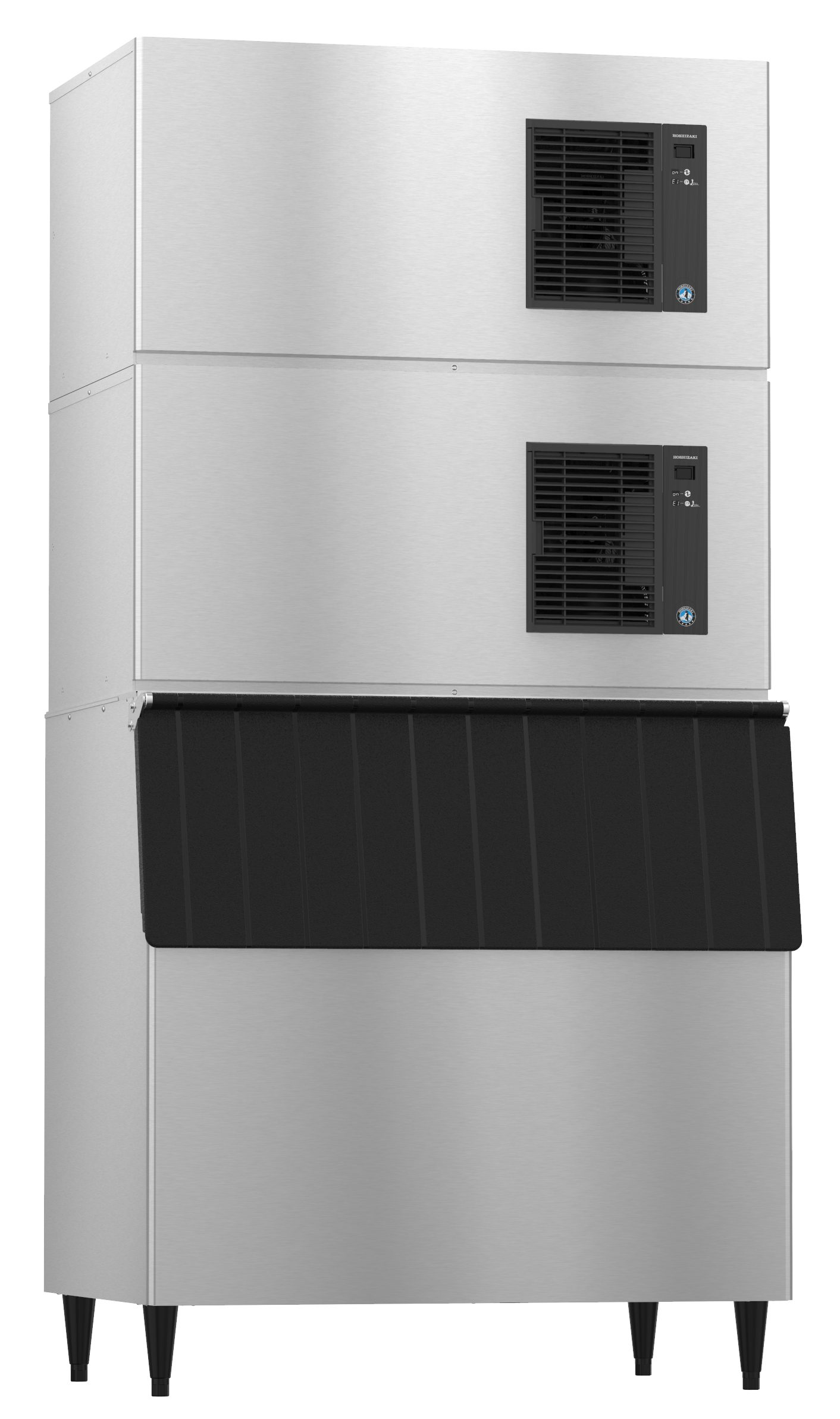

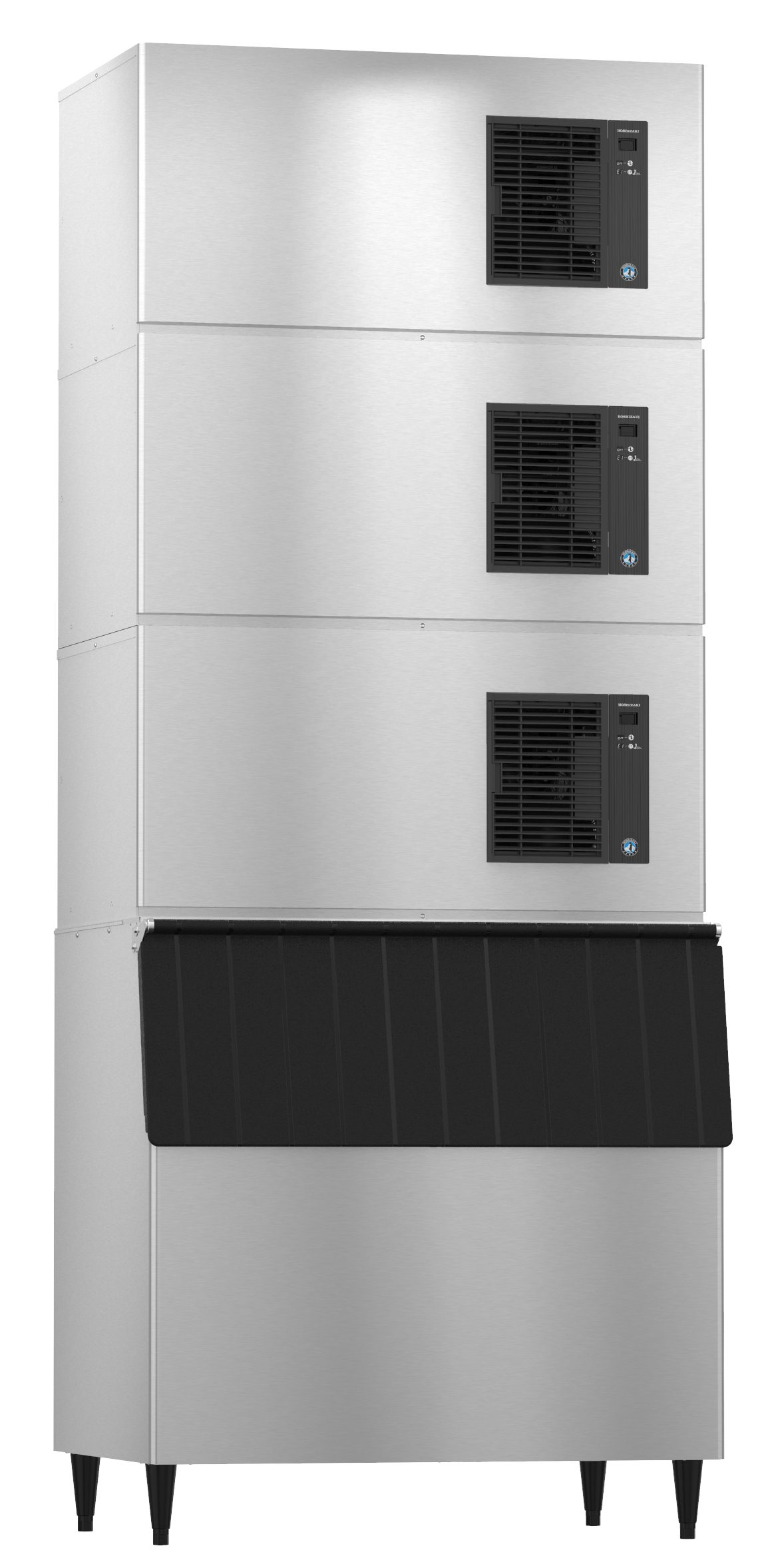

- Stack 3 units for 3x the ice production

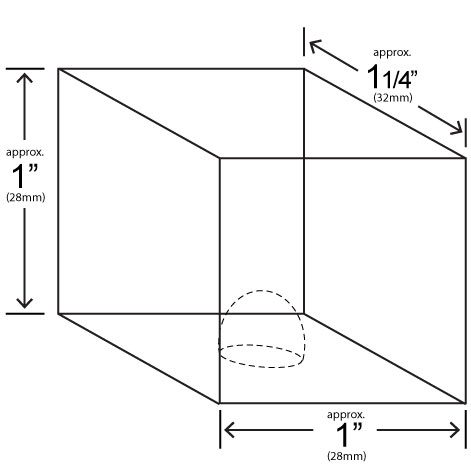

- Produces individual square cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-700, B-800, B-900
- EverCheck™ digital control system with LED display
- Clean individual square ice cubes
- Panels easily removed and all components accessible for service
- R-404A refrigerant (26.5 oz. / 750 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 11.5 amps (20 Amp Max fuse)
- 5.45 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1 Must be hardwired at site, no cord/plug included
- ENERGY STAR® qualified
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
