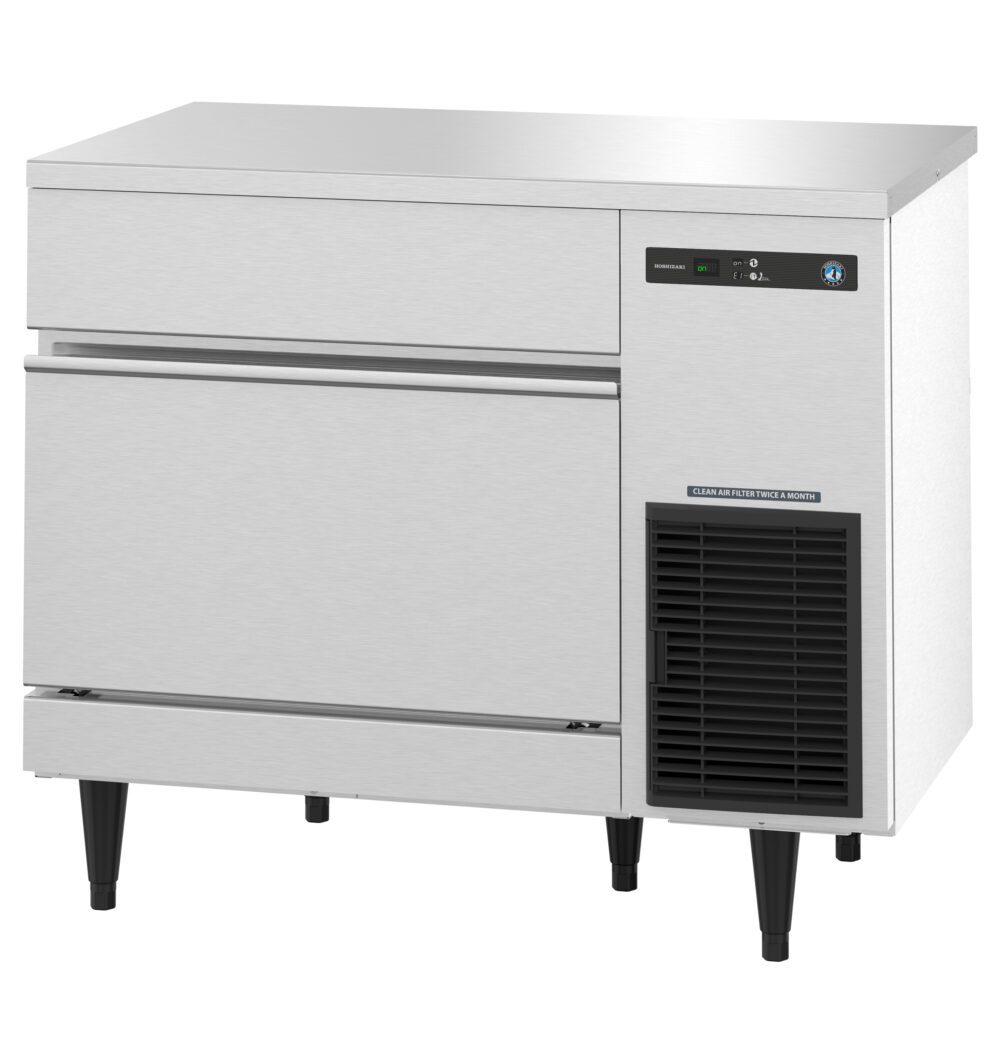

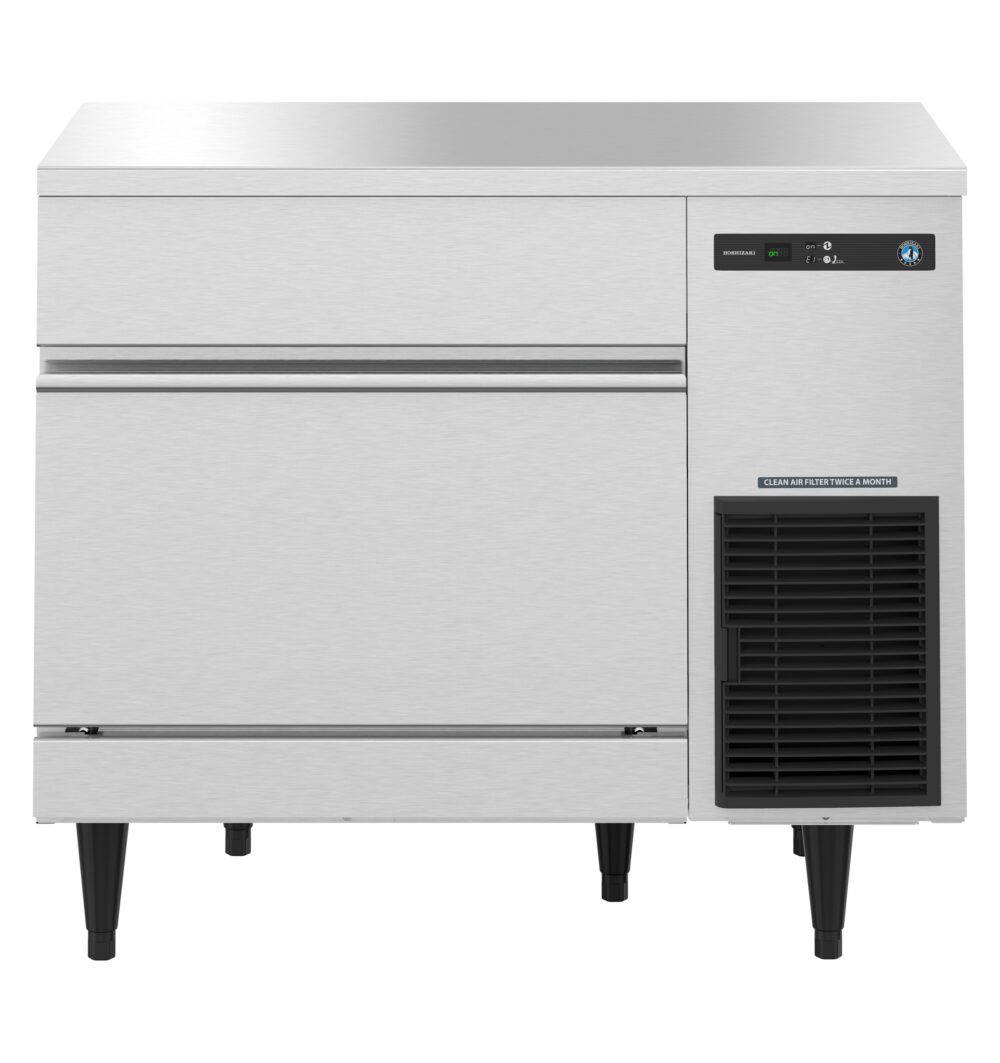

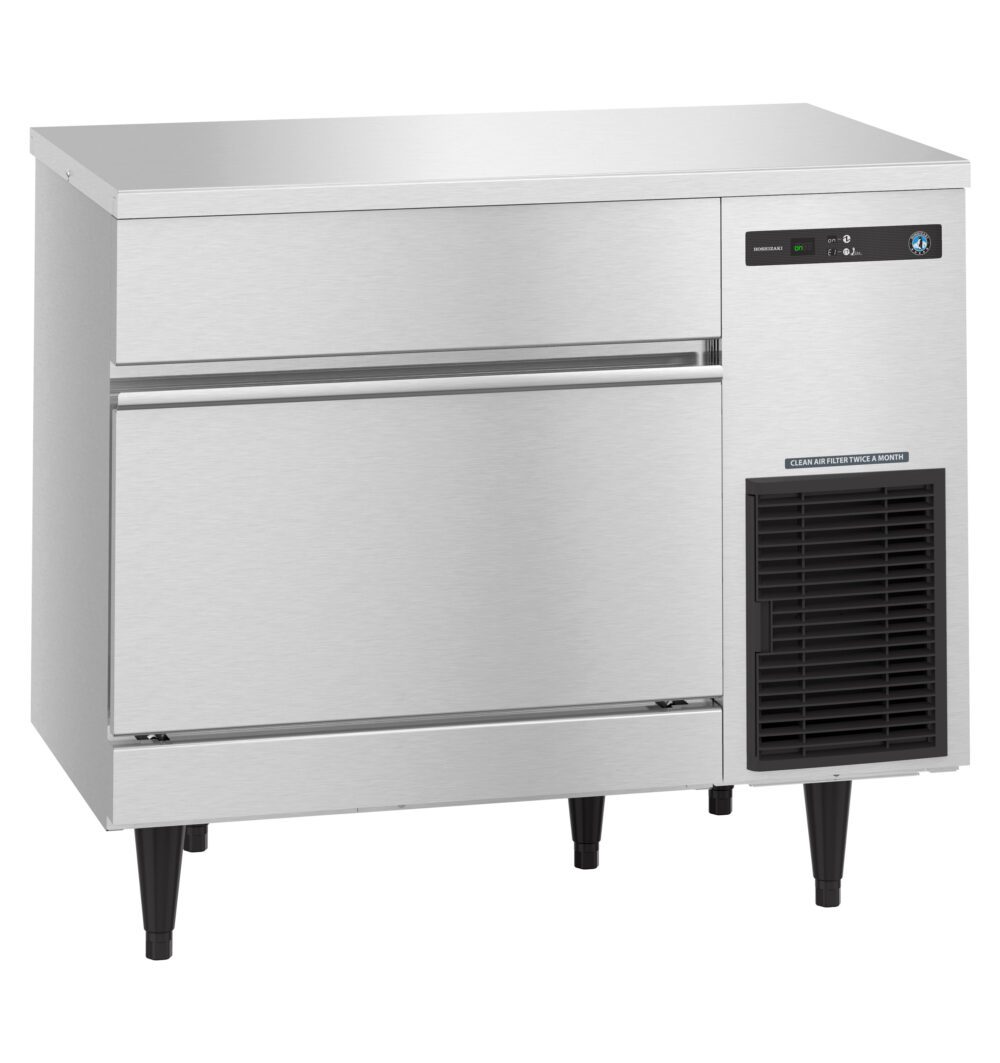

IM-200BAK Square Cuber Ice Machine, Air-cooled, Built-in Storage Bin

39.5″ W X 23.625″ D X 33.5″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Square
Daily Ice
186
Alternate Configurations
Electrical Specs
Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 Plug, Amperage: 5, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 108 – 127V, Heat Rejection: 4200 BTU/hr, Refrigerant Charge: R290 (4.4 oz.)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
212 lbs.
Utility Consumption
6.5 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil

Overview and Features

The IM-200BAK produces up to 186 lbs. of individual 1by1 square cubes per day, ideal for bars, restaurants, and other beverage-focused operations. Its crystal-clear, slow-melting cubes deliver a clean, premium presentation that enhances any drink—from cocktails and spirits to soft drinks and iced coffee. This air-cooled, self-contained unit features a built-in storage bin that holds up to 75 lbs. of ice*, and a sleek stainless steel design built for durability and easy maintenance. The IM-200BAK offers reliable performance and elevated quality for versatile, everyday ice service.

*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft³ average ice density.

PFAS Warning: This product contains: PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl) oxy]-, polymer with 1,1,2,2-tetrafluoroethene. For more information about PFAS chemicals in this product, visit the California Safer Consumer Products website.

  • Dimensions: 39-1/2″ W x 23-5/8″ D x 33-1/2″ H
  • Up to 186 lbs. of ice produced per 24 hours
  • Up to 75 lbs. of built-in storage capacity (2.5ft3)
  • Produces individual 1by1 square cubes
  • Durable stainless steel exterior
  • Front in, front out airflow
  • EverCheck™ alert system
  • Each cube is made individually by a dedicated jet spray
  • Removable air filter
  • Ice scoop included
  • Environmentally friendly R290 hydrocarbon refrigerant
  • ENERGY STAR® qualified
