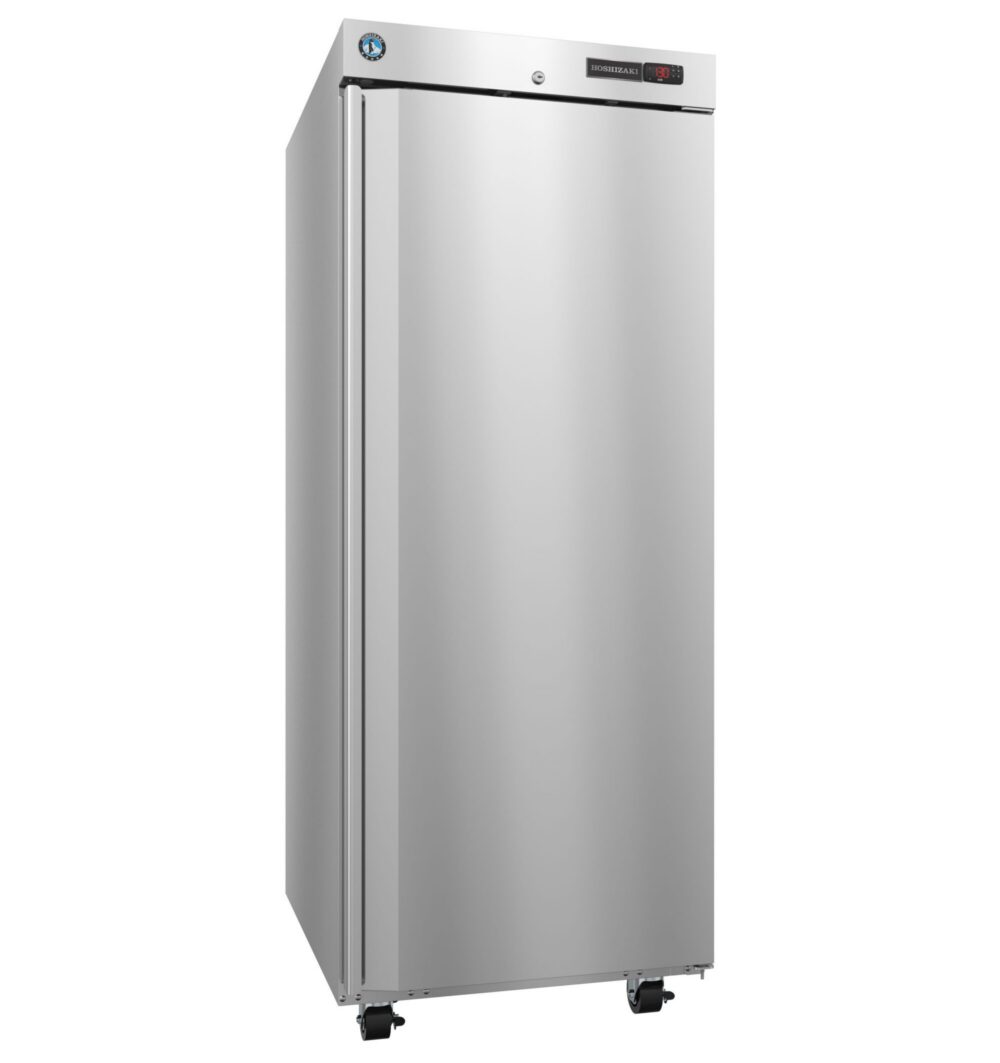

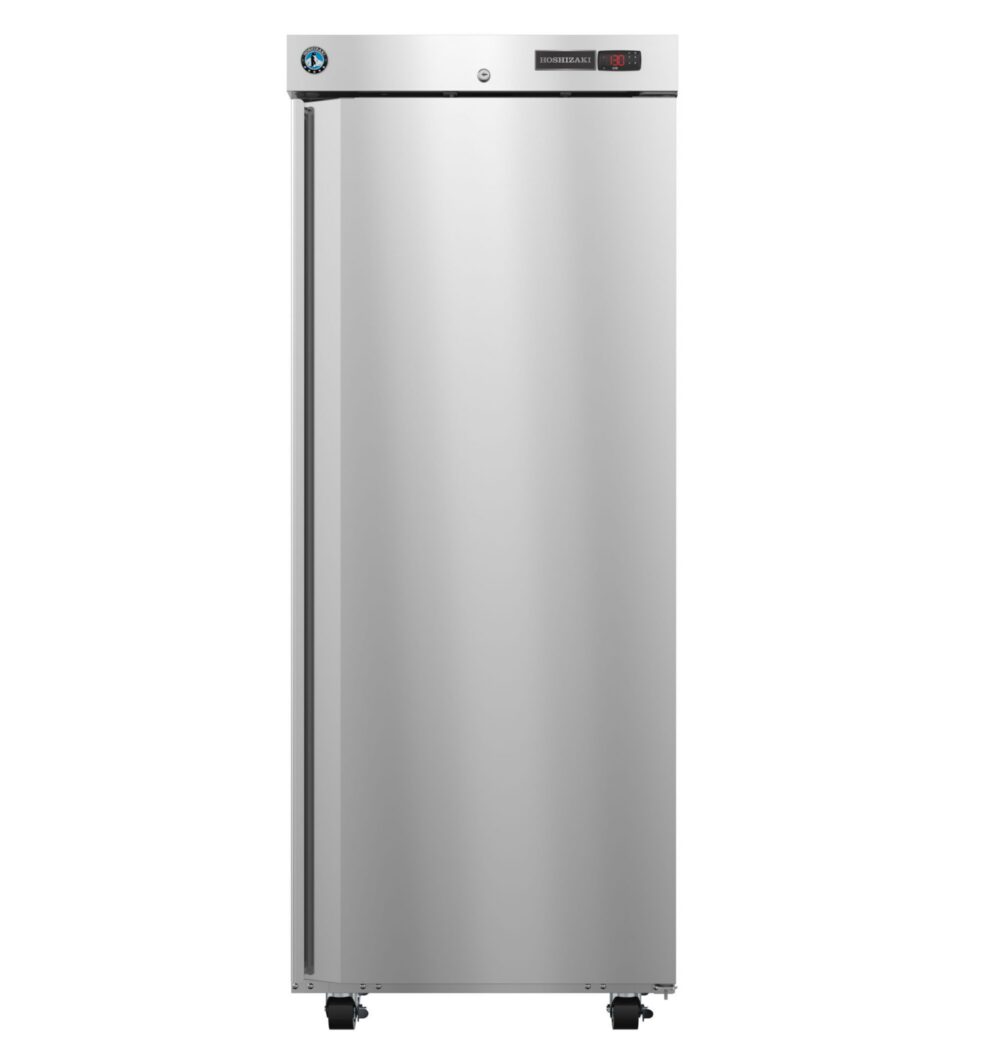

HXHC1A-FS Healthcare Warming Cabinet, Single Section Reach-In, Full Stainless Door with Lock
27.5″ W X 33.5″ D X 72″ H
Volume
22.7
Electrical
115v/60/1
Sections
1
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Amperage: 10, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 90 – 150°F
Shipping Weight
340 lbs.
Storage Specs
Interior storage capacity: 22.7 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 59.25″ D, Shelves included: 4
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The HXHC1A-FS healthcare warming cabinet offers 22.7 cubic feet of reliable warming with three preset temperatures—130°F for linens and blankets, 110°F for irrigation fluids, and 98°F for blood products. Durable stainless steel construction and UL 61010 certification provide long-lasting performance and electrical safety, making it a dependable solution for healthcare settings.
- Dimensions: 27.5″ W x 33.5″ D x 72″ H
- Interior capacity of 22.7 cubic feet
- Interior, top-mounted heating element with fan circulates heat through the cabinet to ensure optimal airflow
- Three preset temperature setpoints: 130°F for linens and blankets, 110°F for irrigation fluids, and 98°F for blood products
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Self-closing, lockable stainless door with stay open feature at 90°
- ADA-compliant full-length flush mount handle
- Cabinet and door are insulated with 2 3/8″ CFC-free, foamed in place polyurethane
- Exclusive stepped door design to protect the recessed door gasket
- Energy-efficient interior LED lights
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- Audible alarms for high/low temperature and door open
- Built-in high-temp safety switch and built-in overload protection
- Includes (4) epoxy-coated wire shelves adjustable in 1″ increments on stainless steel supports
- (4) 4″ stem casters (2 with brakes) are standard
- Certified to UL 61010 for electrical and fire protection safety requirements
- ENERGY STAR® Qualified
