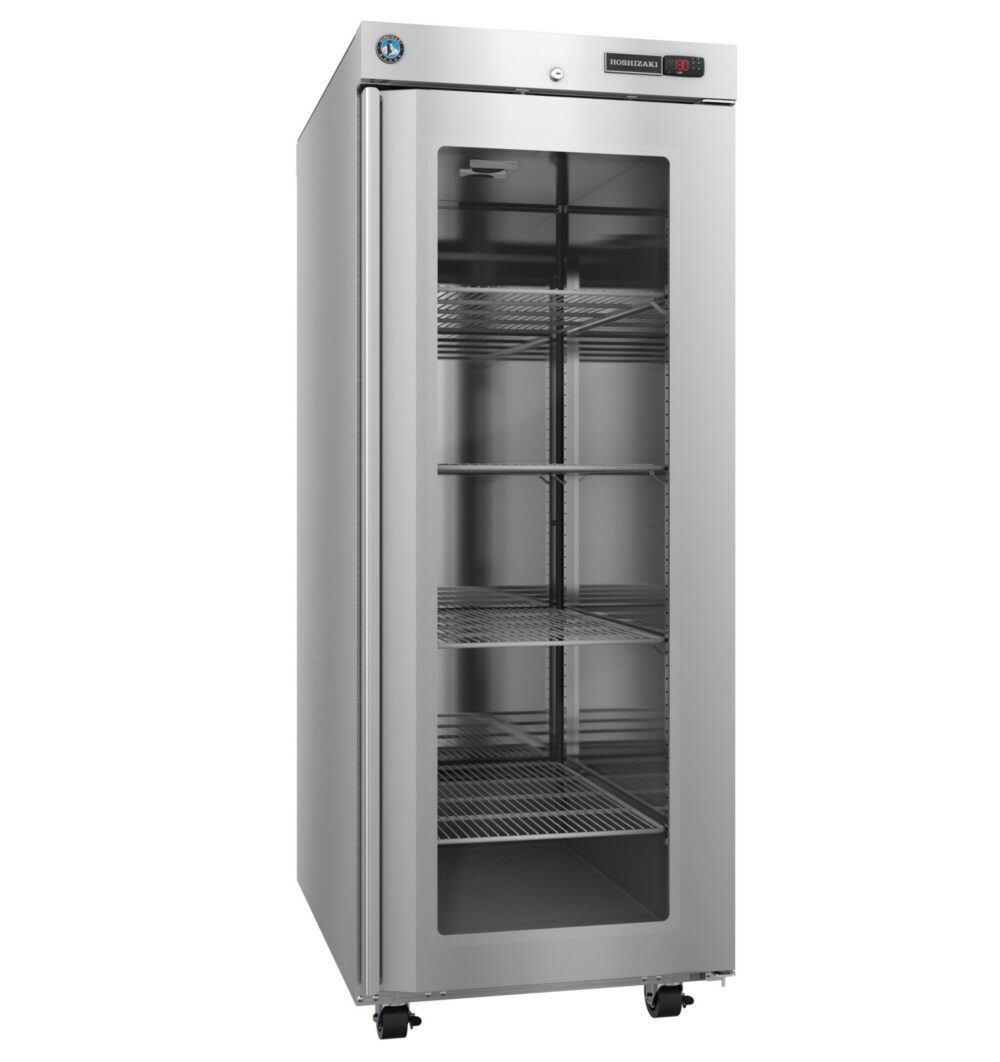

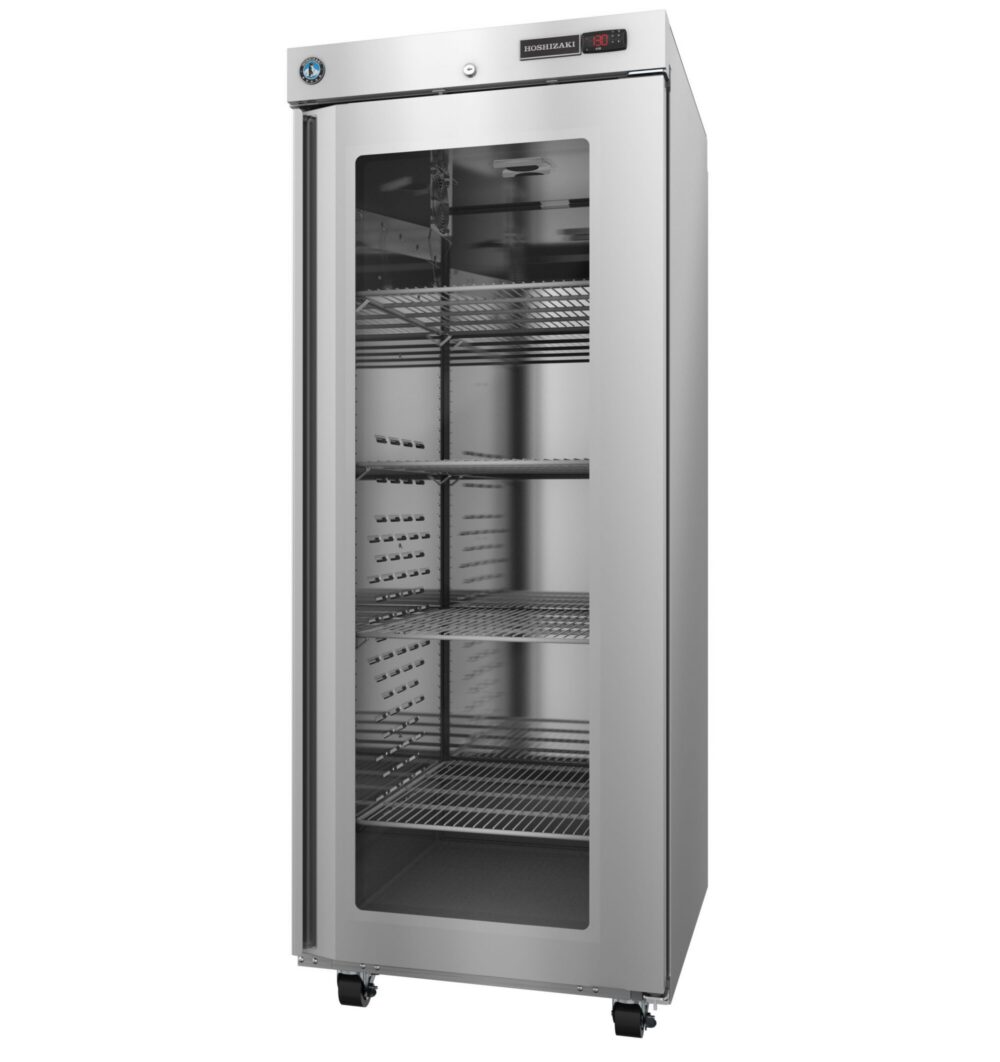

HXHC1A-FGE Healthcare Warming Cabinet, Single Section Reach-In, Full Glass Door with Lock
27.5″ W X 33.5″ D X 72″ H
Volume
22.7
Electrical
115v/60/1
Sections
1
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Amperage: 10, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 90 – 150°F
Shipping Weight
324 lbs.
Storage Specs
Interior storage capacity: 22.7 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 59.25″ D, Shelves included: 4
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The HXHC1A-FGE glass-door healthcare warming cabinet offers 22.7 cubic feet of reliable warming with three preset temperatures—130°F for linens and blankets, 110°F for irrigation fluids, and 98°F for blood products. The glass door allows quick product visibility without fully opening the cabinet, supporting workflow efficiency while maintaining interior heat. Durable stainless steel construction and UL 61010 certification provide long-lasting performance and electrical safety, making it a dependable solution for healthcare settings.
- Dimensions: 27.5″ W x 33.5″ D x 72″ H
- Interior capacity of 22.7 cubic feet
- Interior, top-mounted heating element with fan circulates heat through the cabinet to ensure optimal airflow
- Three preset temperature setpoints: 130°F for linens and blankets, 110°F for irrigation fluids, and 98°F for blood products
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Self-closing, lockable glass door with stay open feature at 90°
- ADA-compliant full-length flush mount handle
- Cabinet and door are insulated with 2 3/8″ CFC-free, foamed in place polyurethane
- Exclusive stepped door design to protect the recessed door gasket
- Energy-efficient interior LED lights
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- Audible alarms for high/low temperature and door open
- Built-in high-temp safety switch and built-in overload protection
- Includes (4) epoxy-coated wire shelves adjustable in 1″ increments on stainless steel supports
- (4) 4″ stem casters (2 with brakes) are standard
- Certified to UL 61010 for electrical and fire protection safety requirements
- ENERGY STAR® Qualified
