HWF40A, Freezer, Single Section Worktop, Stainless Door with Lock / HWF40A, Freezer, Single Section Worktop, Stainless Door with Lock

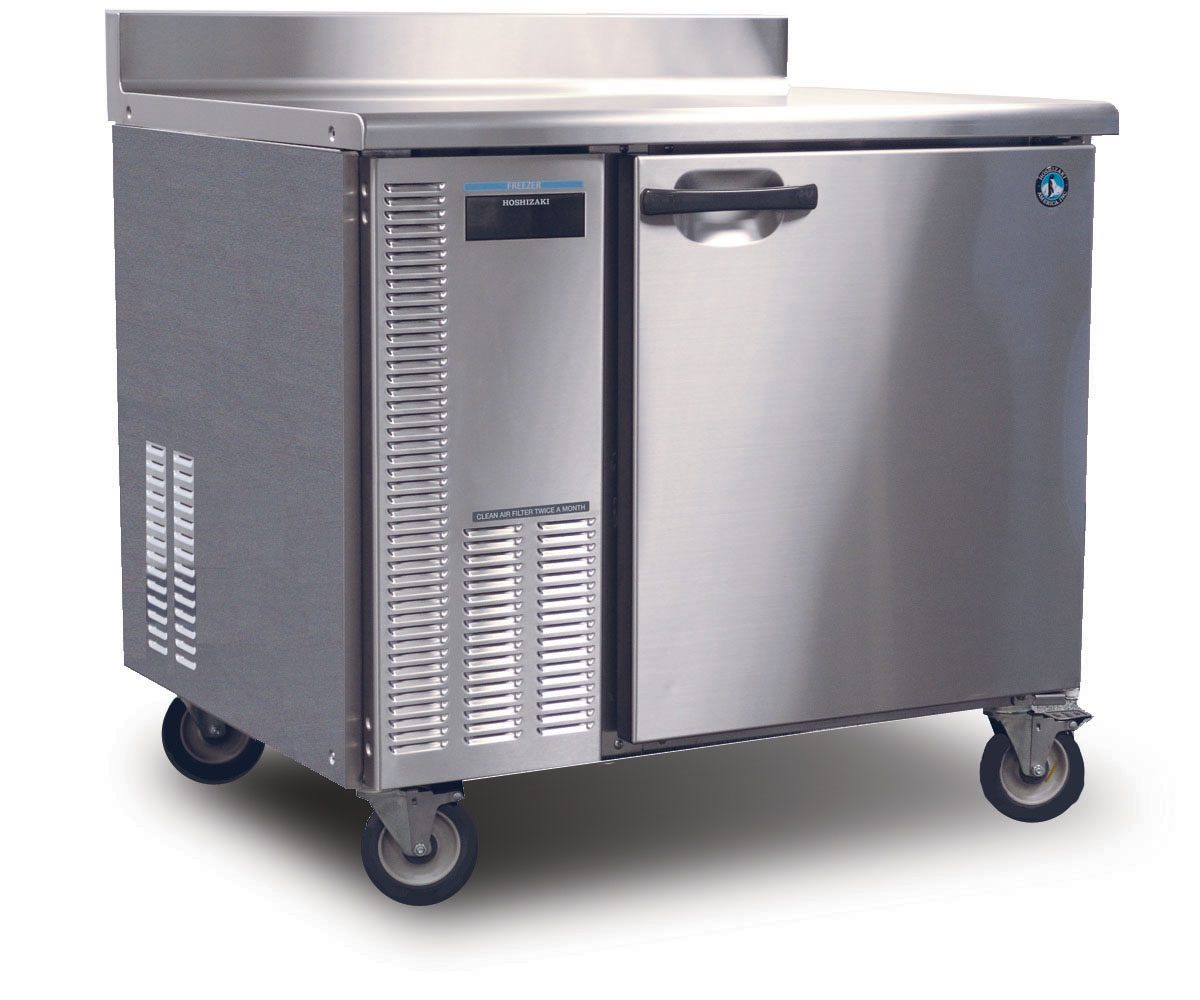

HWF40A Freezer, Single Section Worktop, Stainless Door with Lock

40″ W X 32″ D X 33″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 4.97 kwh/day, Amperage: 5.5, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -13 – +19°F, , Refrigerant: R-404A
Refrigeration Data
Nominal Compres. of 1378 BTU/hr at 3/8 HP, Heat Rejection: 1133 BTU/hr
Shipping Weight
322
Storage Specs
Nominal Storage Capacity: 8.5ft3, Interior Storage Capacity: 8.5ft3, Door Opening: 22.5″ W x 24.3″ H , Depth with Door fully extended: 56.8″ D, Shelves Included: 2
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The HWF40A Professional Series Worktop Single Section Freezer with a Stainless Door and Cartridge-style refrigeration system is easily removed from the main unit is perfect for any professional. The reliable 3/8 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The HWF40A frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The HWF40A Includes 2 epoxy coated wire coated shelves, and comes Standard with (4) 6″ HD Casters (2 with brakes), it features Self closing door, with stay open feature with locks (reversible at factory – no charge). The unit is NSF and includes a Five Years compressor warranty / Three Years parts and labor warranty.

[fusion_button link=”#” color=”red” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]DISCONTINUED[/fusion_button]

  • Dimensions: 40.25″ W x 32.3″ D x 33.9″ H
  • Net capacity of 8.5 cubic feet
  • Nominal Compres. of 1378 BTU/hr at 3/8 HP
  • Electrical consumption of 4.97 kWh/day at 5.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Self closing door, with stay open feature with locks (reversible at factory – no charge)
  • Cartridge-style refrigeration system is easily removed from the main unit
  • Magnetic door gasket is easily removable for cleaning
  • Defrost is time initiated temperature terminated
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior and exterior top, front and sides
  • EverCheck digital control system with audio and visual alarms
  • R-404a refrigerant
  • Dual door frame heaters with energy saving on/off switch
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Includes 2 epoxy coated wire coated shelves
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Standard with (4) 6″ HD Casters (2 with brakes)
  • Front breathing air flow design with Zero clearance
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 44.25″ L x 36.25″ D x 43.25″ H at 322 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
