HS-5767 Clean Ice Ozone System
4.6″ W X 2.9″ D X 5.8″ H
Parts and Service
Downloads
Electrical Specs
100-240v/50-60/1, 5-foot NEMA 5-15 plug included, Amperage (by phase): 2.0 Max, Watts (by phase): 30 Max
Operating Limits
Working Temp Range: 40 – 104°F, Working Humidity: 0 – 90% non-condensing humidity, Water Temp Range: 40 – 86°F, Water Pressure: 20 – 125 psi
Plumbing Specs
Inlet: G 1/2” female tread, Outlet: G 1/2” male thread
Lifetime
6-12 months
Warranty
2 years parts only on head unit; 90 days parts only on cartridge
Overview and Features
The HS-5767 Advanced Ozone Clean Ice System (CIS) helps maintain ice quality by continuously sanitizing the ice machine, bin, and water path. It treats incoming water to reduce bacteria, yeast, mold, and biofilm buildup—extending the time between cleanings and supporting consistent performance. With four adjustable operating modes, the HS-5767 can be tailored to meet a variety of application needs while providing continuous protection.
- Utilizes nitrogen-free pure ozone to prevent biofilm and bacteria buildup without harsh chemicals or corrosion
- Reduces the risk of foodborne illness while cutting downtime and labor costs for routine cleanings

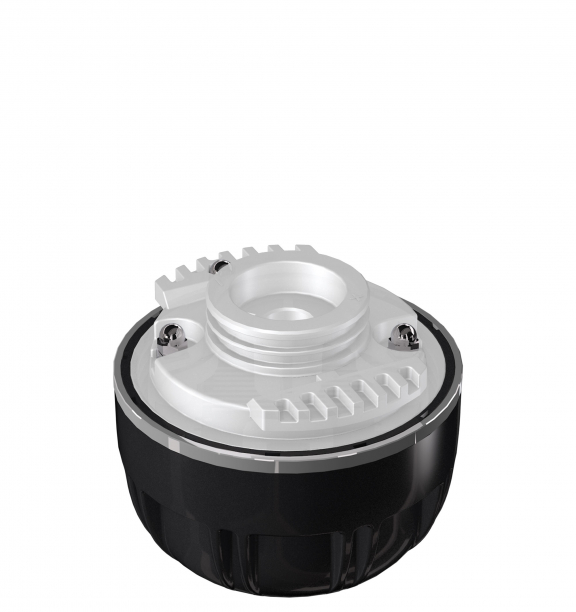

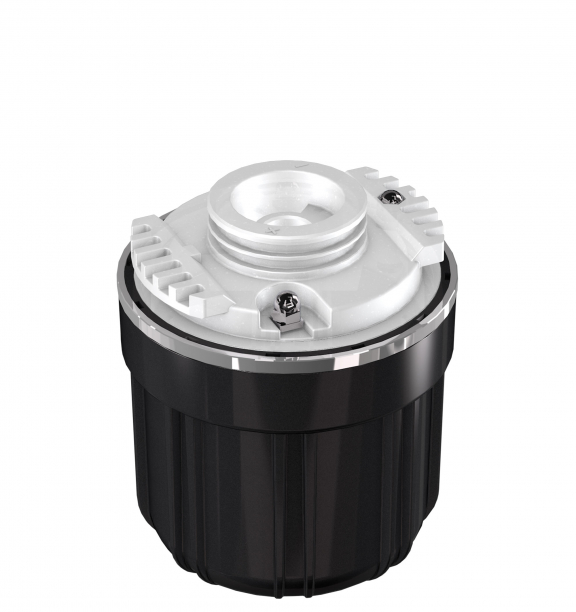

- Operator-replaceable, twist-on electrolytic (EOG) cartridge for quick and hassle-free servicing
- Built-in alert system signals when it’s time to replace the EOG cartridge
- Four operation modes to optimize ozone dosage for different ice machine applications, supporting up to 2,600 lbs. of ice production
- Integrated feature prevents scale buildup on electrodes, ensuring consistent and optimal performance
