HPR46A, Refrigerator, Single Section Raised Rail Prep Table, Stainless Door with Lock / HPR46A, Refrigerator, Single Section Raised Rail Prep Table, Stainless Door with Lock

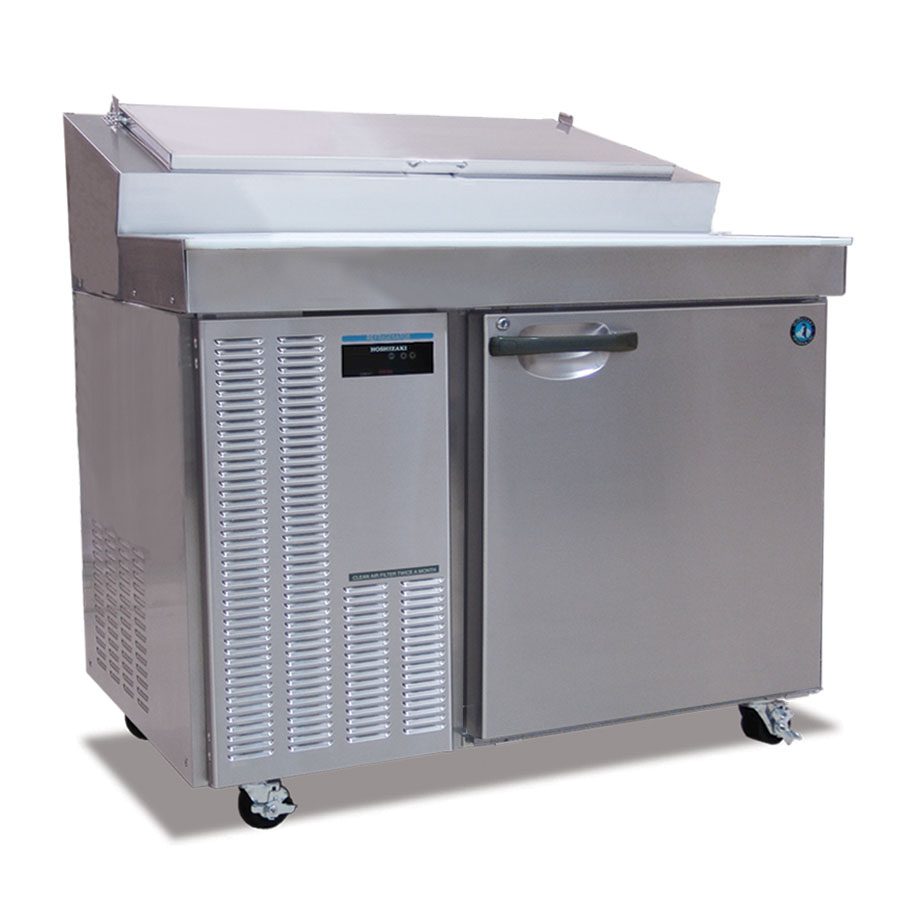

HPR46A Refrigerator, Single Section Raised Rail Prep Table, Stainless Door with Lock

46″ W X 32″ D X 44″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 7.3 kwh/day, Amperage: 7.6, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 86°F, Voltage Range: 104 – 126V, Control Setpoint Range: 21 – 53°F,13 – 53°F, , Refrigerant: R-404A
Refrigeration Data
Nominal Compres. of 1280 BTU/hr at 1/4 HP, Heat Rejection: 1044 BTU/hr
Shipping Weight
373
Storage Specs
Nominal Storage Capacity: 8.5ft3, Interior Storage Capacity: 8.5ft3, Door Opening: 22.5″ W x 24.3″ H , Depth with Door fully extended: 56.8″ D, Shelves Included: 1
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The HPR46A Professional Series Raised Rail Single Section Refrigerator with a Stainless Door and Cartridge-style refrigeration system is easily removed from the main unit is perfect for any professional. The reliable 1/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The HPR46A frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The HPR46A Includes 1 epoxy coated wire coated shelf and 6 polycarbonate plastic 1/3rd size pans, 6″ deep, and comes Standard with (4) 4″ HD Casters (2 with brakes), it features Rail will accommodate 1/6th, 1/3rd, 1⁄2 or full size, 6” deep pans (pans and adapter bars by others). The unit is NSF and includes a Five Years compressor warranty / Three Years parts and labor warranty.

[fusion_button link=”#” color=”red” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]DISCONTINUED[/fusion_button]

  • Dimensions: 46″ W x 32.3″ D x 44.8″ H
  • Net capacity of 8.5 cubic feet
  • Nominal Compres. of 1280 BTU/hr at 1/4 HP
  • Electrical consumption of 7.3 kWh/day at 7.6 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Rail will accommodate 1/6th, 1/3rd, 1⁄2 or full size, 6” deep pans (pans and adapter bars by others)
  • Cartridge-style refrigeration system is easily removed from the main unit
  • Magnetic door gasket is easily removable for cleaning
  • Raised rail is mechanically refrigerated and equipped with a 3/4”drain
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior and exterior
  • EverCheck digital control system with audio and visual alarms
  • R-404a refrigerant
  • Hinged, louvered upper front panel for easy access to controller
  • Enamel coated evaporator coil for extended life
  • Includes 1 epoxy coated wire coated shelf and 6 polycarbonate plastic 1/3rd size pans, 6″ deep
  • Exclusive “night switch” allows overnight product storage in rail with cover closed
  • Standard with (4) 4″ HD Casters (2 with brakes)
  • Front breathing air flow design with Zero clearance
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 50″ L x 36.25″ D x 58.1″ H at 373 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
