Refrigeration / Steelheart® Heated Cabinets / Reach-Ins / HC1A-HGE, Heated Cabinet, Single Section Upright, Half Glass Doors with Lock

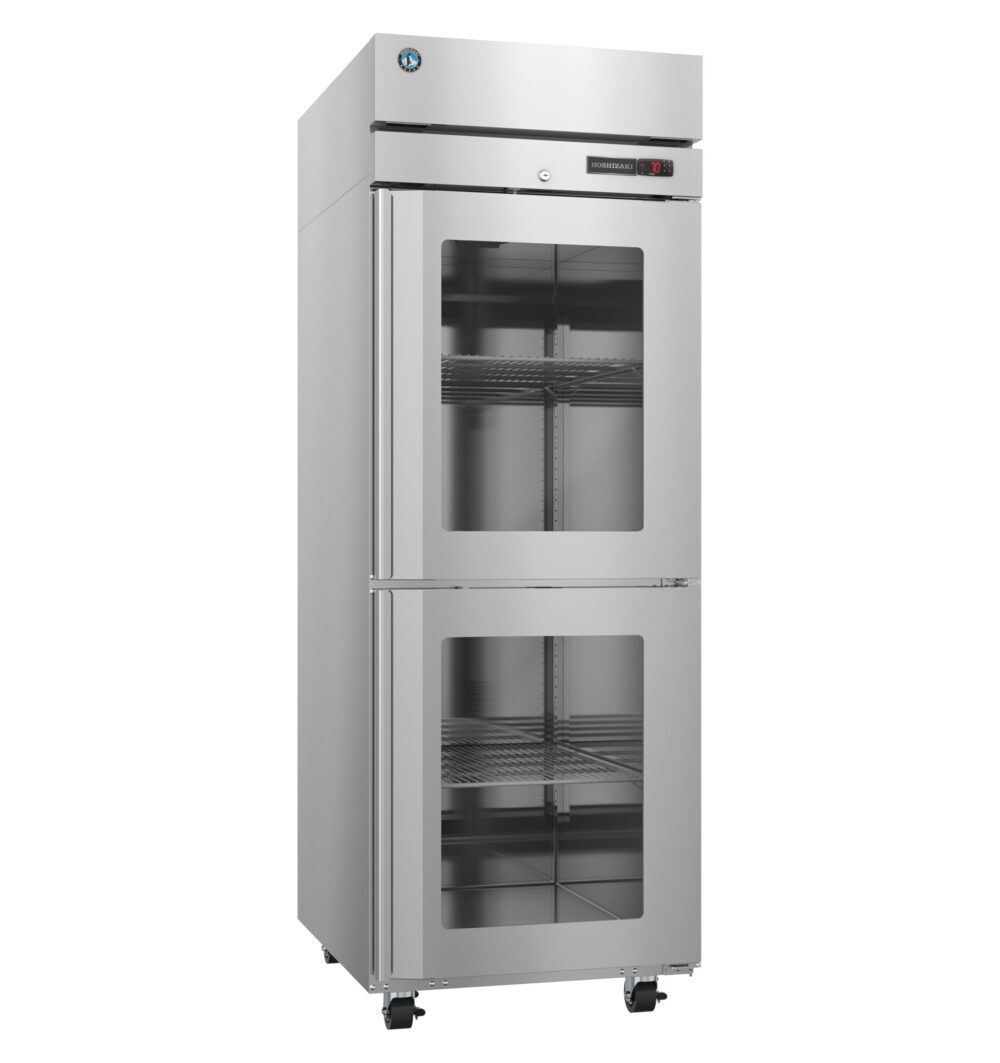

A commercial stainless steel refrigerator with two glass doors, metal shelves inside, digital temperature display, and wheels at the base.A stainless steel commercial refrigerator with two glass doors, visible shelves inside, and a digital display panel on the top section.Stainless steel commercial refrigerator with two glass doors, digital display, and multiple interior shelves, standing on wheels.

HC1A-HGE Heated Cabinet, Single Section Upright, Half Glass Doors with Lock

27.5″ W X 33.5″ D X 79.5″ H
Volume
22.62
Electrical
115v/60/1
Sections
1
Request a Quote Find a Distributor
Parts and Service
Downloads
Alternate Configurations
Stainless steel commercial refrigerator with a glass door, three interior wire shelves, digital display, and caster wheels.
Commercial stainless steel refrigerator with four glass doors, interior shelving, and casters for mobility. Temperature display is visible on the upper right.
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 175.5 kwh/day, Amperage: 10, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 140 – 180°F
Shipping Weight
340 lbs.
Storage Specs
Interior storage capacity: 22.62 ft3, Door opening: 21.75″ W x 27.75″ H, Depth with door open at 90°: 59.25″ D, Shelves included: 3
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor

Overview and Features

The HC1A-HGE Steelheart® Series single section half glass door heated cabinet delivers durable performance in a space-saving design. With 22.62 cu. ft. of interior capacity, it offers generous storage and reliable temperature control through a solid-state digital controller with alarms and an easy-to-read LED display. The stainless steel exterior and interior provide long-lasting durability and easy cleaning, while the self-closing, field-reversible glass doors feature a convenient stay-open function for ease of loading and unloading.

  • Dimensions: 27.5″ W x 33.5″ D x 79.5″ H
  • Interior capacity of 22.62 cubic feet
  • Top-mounted heating element with fan to circulate heat through cabinet
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
  • One piece, full door length, extruded aluminum flush mount door handles
  • Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
  • Energy-efficient multi-pane, argon-filled glass doors with lock
  • Insulated with 2-3/8″ CFC free, foamed in place polyurethane
  • Energy-efficient interior LED light
  • Exclusive stepped door design to protect recessed door gasket
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Includes (3) epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Single section cabin can hold between 20-24 tray slides depending on the product
  • Additional storage fits 12 sheet pans
  • ENERGY STAR® Qualified
