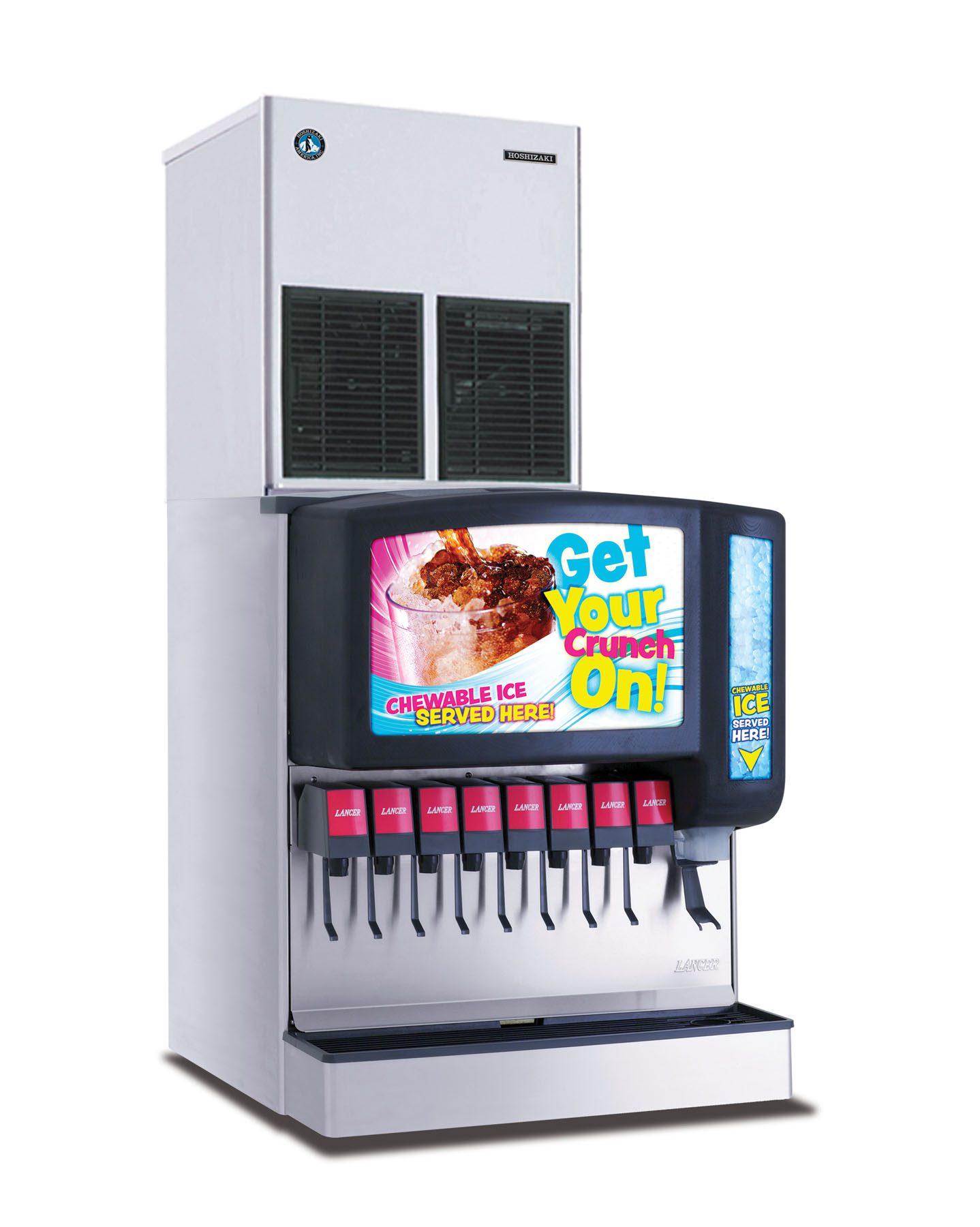

FD-1002MAJ-C Cubelet Icemaker, Air-cooled
22″ W X 24″ D X 26″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Cubelet
Daily Ice
890
Parts and Service
Alternate Configurations
Electrical Specs
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included., Amperage: 15.2, Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8700 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 3.3 oz. / 1000
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
205
Utility Consumption
4.57 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Overview and Features
The FD-1002MAJ-C is capable of producing approximately 890 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Dispenser icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FD-1002MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900. Please consult the Specification Sheet for additional details.
- Dimensions: 22″ W x 24″ D x 26″ H
- Up to 890 lbs of ice produced per 24 hours
- Air-cooled, Slim Line Dispenser, 22″ Wide Icemaker
- Produces small cubelet nugget-style ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- R-404A refrigerant (2 lbs. 3.3 oz. / 1000 g)
- Heat Rejection:8700 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 15.2 amps (20 Amp Max fuse)
- 4.57 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
