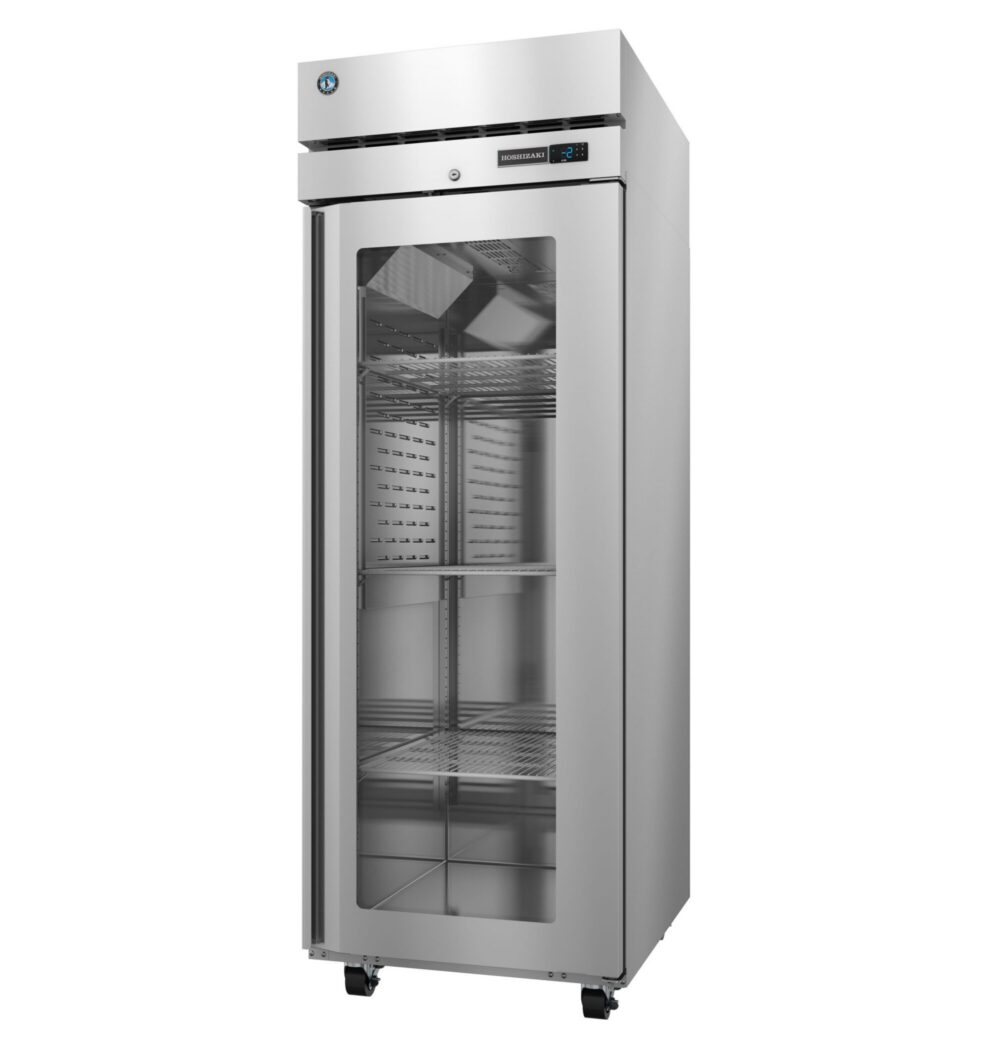

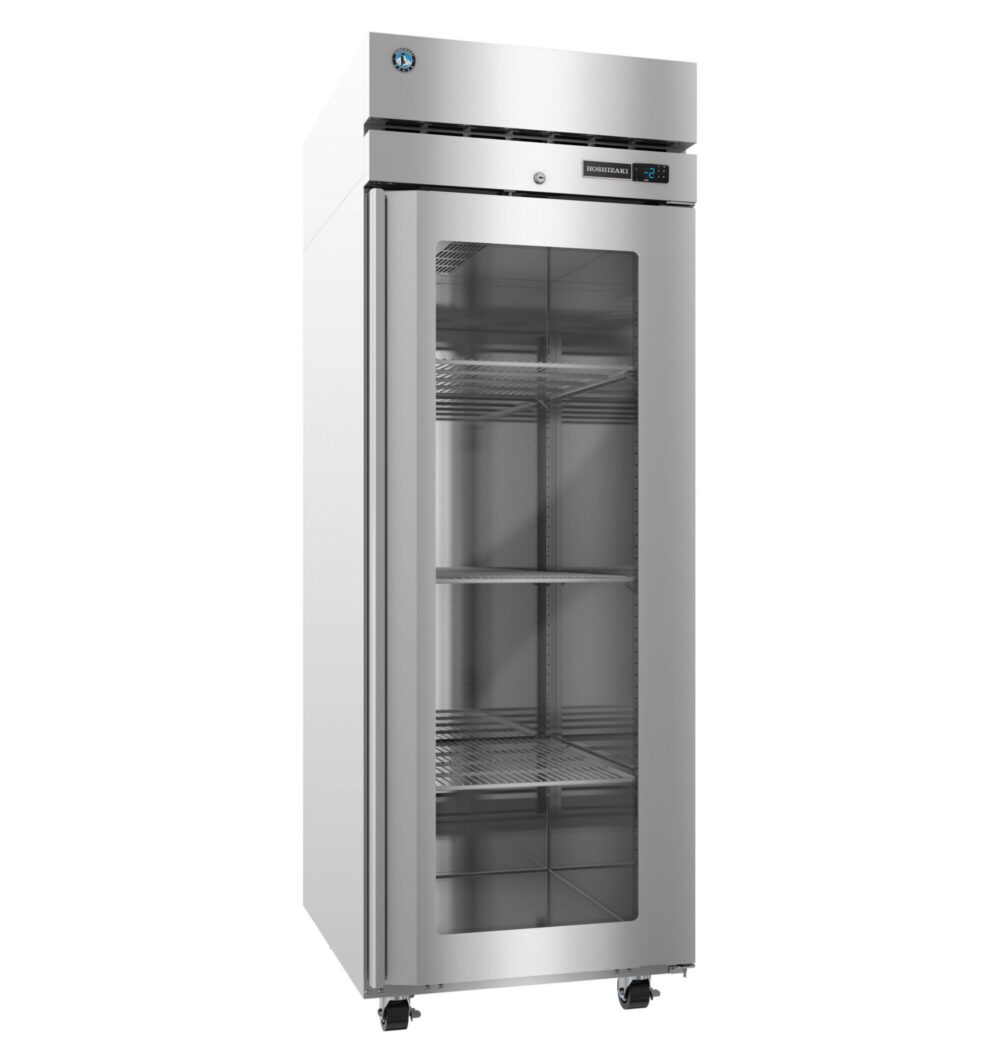

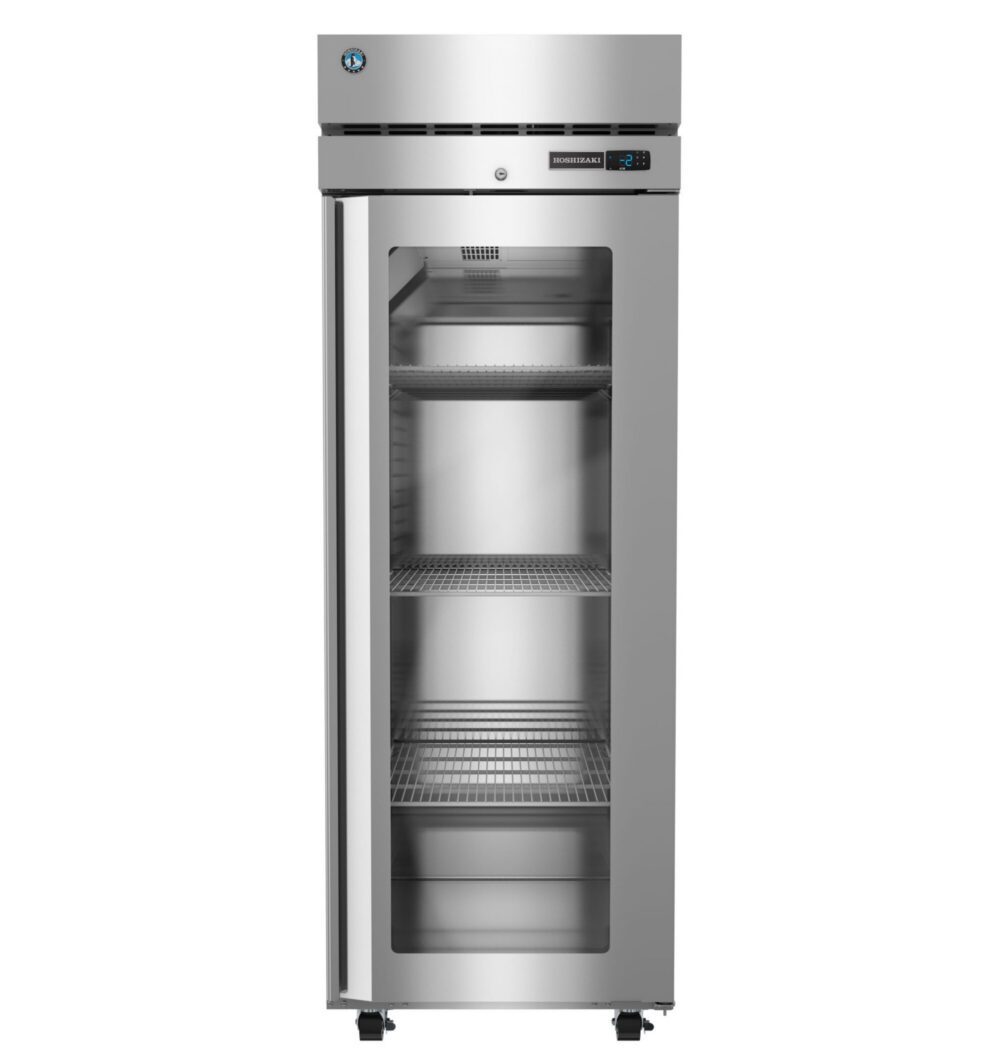

F1A-FGE Freezer, Single Section Reach-In, Full Glass Door with Lock
27.5″ W X 33.5″ D X 79.5″ H
Volume
23.1
Electrical
115v/60/1
Sections
1
Parts and Service

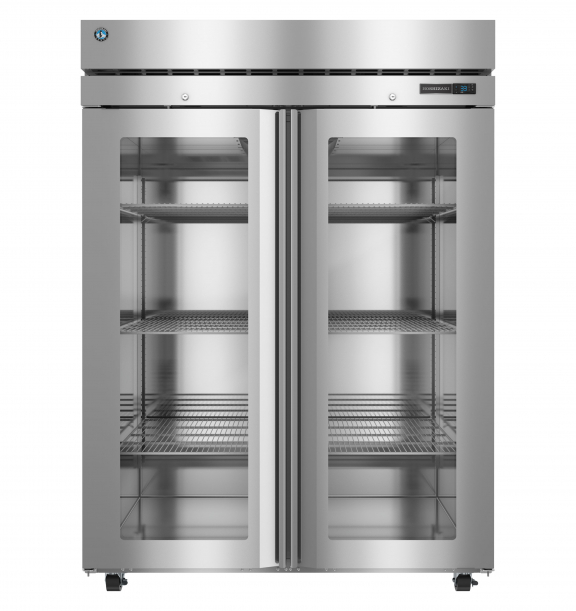

Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 7.73 kwh/day, Amperage: 8.5, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 80°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +12°F, Refrigerant: R290 (4.1 oz.)
Refrigeration Data
Nominal Compres. of 1425 BTU/hr at 3/4 HP, Heat Rejection: 806 BTU/hr
Shipping Weight
365 lbs.
Storage Specs
Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 57″ D, Shelves included: 3
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The F1A-FGE Steelheart® Series single-section glass-door reach-in freezer delivers reliable temperature performance and quick ingredient identification for commercial kitchens. A solid-state digital control system with temperature alarms and an easy-to-read LED display (°F or °C) helps maintain consistent temperatures. Durable stainless steel construction withstands daily use and simplifies cleaning, while the front-breathing airflow design allows flexible placement in tight kitchen spaces.
- Dimensions: 27.5″ W x 33.5″ D x 79.5″ H
- Net capacity of 23.1 cubic feet
- Unique ducted airflow ensures even cooling throughout entire cabinet
- Thermostatic Expansion Valve (TXV) system quickly and effectively regulates refrigerant flow to control temperatures
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- Cabinet walls are insulated with 2-3/8” of CFC-free, foamed in place polyurethane
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field-reversible, self-closing, lockable multi-pane argon-filled glass door with 90° stay-open feature
- Extruded aluminum flush mount door handle
- Energy-efficient interior LED light
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Energy-efficient automatic hot gas condensate evaporator
- Top-mount refrigeration comes standard with a condenser filter
- Environmentally friendly R290 hydrocarbon refrigerant
- (4) 4″ stem casters (2 with brakes) are standard
- Includes (3) epoxy-coated wire shelves adjustable in 1″ increments on stainless steel supports
