Ice Machines / Cubelet Series / Modular Cubelet Ice Machines / F-622MAK-C, Cubelet Ice Machine, Air-cooled
A stainless steel Hoshizaki ice maker with two black front vents and a label instructing to clean the air filter twice a month.Front view of a stainless steel Hoshizaki appliance with two black vented panels and a label reading “Clean air filter twice a month.”.Commercial stainless steel ice machine with black front vents and Hoshizaki branding, shown from a front angle against a white background.Commercial stainless steel ice dispenser machine with a front panel displaying the word A commercial soda fountain machine with eight drink dispensers, an ice chute, and a sign advertising chewy ice.Black and white line drawing of a rectangular object with beveled edges, labeled with dimensions: 3/4”, 1/2”, 3/8”, and 3/4”. Ideal for use in commercial refrigeration or as a part in a commercial ice machine.Close-up of several transparent, irregularly-shaped crystals scattered on a dark surface, resembling ice produced by a commercial ice machine or other refrigeration equipment.A glass filled with ice cubes from a commercial ice machine sits on a textured tray, with medical supplies and a stethoscope blurred in the background.Four styrofoam cups filled with crushed ice from a commercial ice machine and colorful slush drinks—blue, yellow, orange, and red—are arranged in a cluster on a white surface.A cluster of translucent, crystalline mineral chunks set against a white background, reminiscent of the pure ice produced by a commercial ice machine used in modern refrigeration equipment.Close-up view of several translucent, irregularly shaped crystalline chunks clustered together, produced by a commercial ice machine.A clear glass sits on a dark surface, partially filled with several ice cubes made from a commercial ice machine.Three clear ice cubes, likely made using a commercial ice machine, are arranged on a white background.

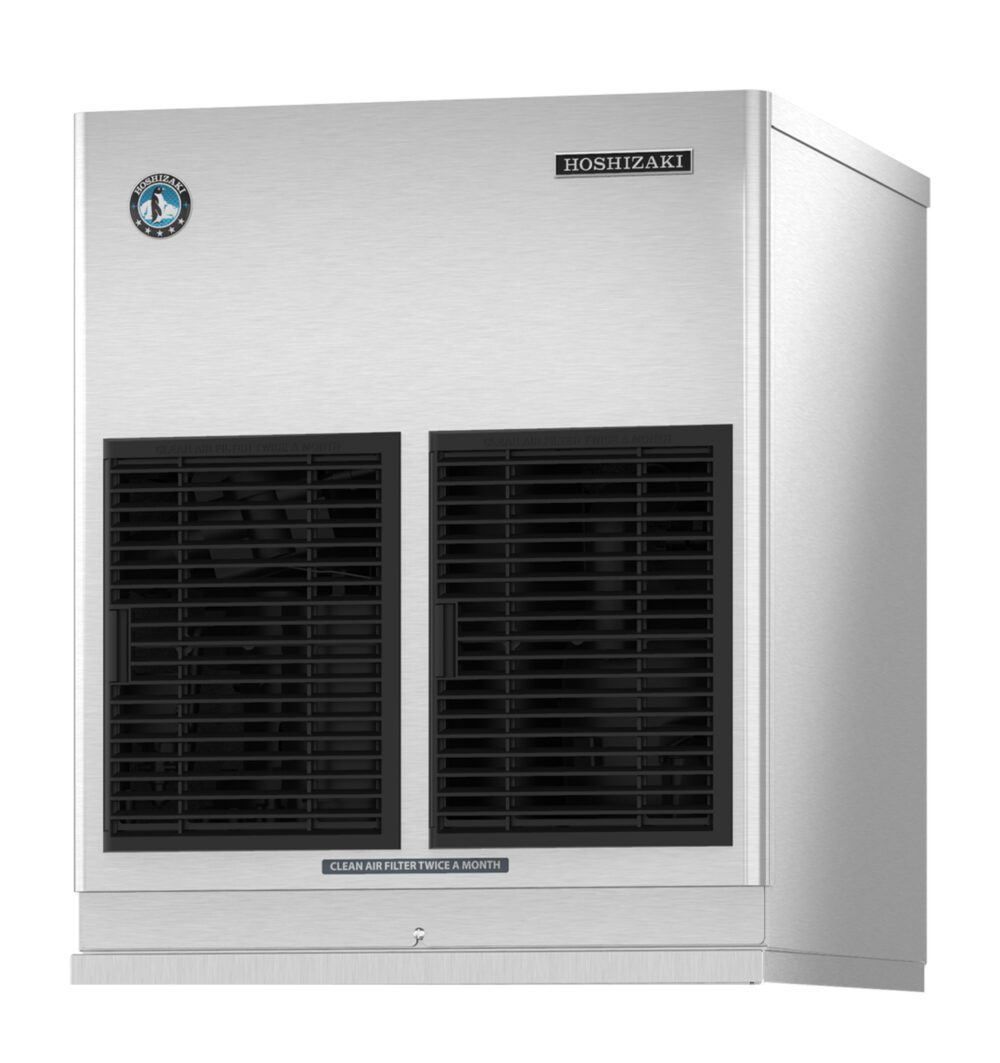

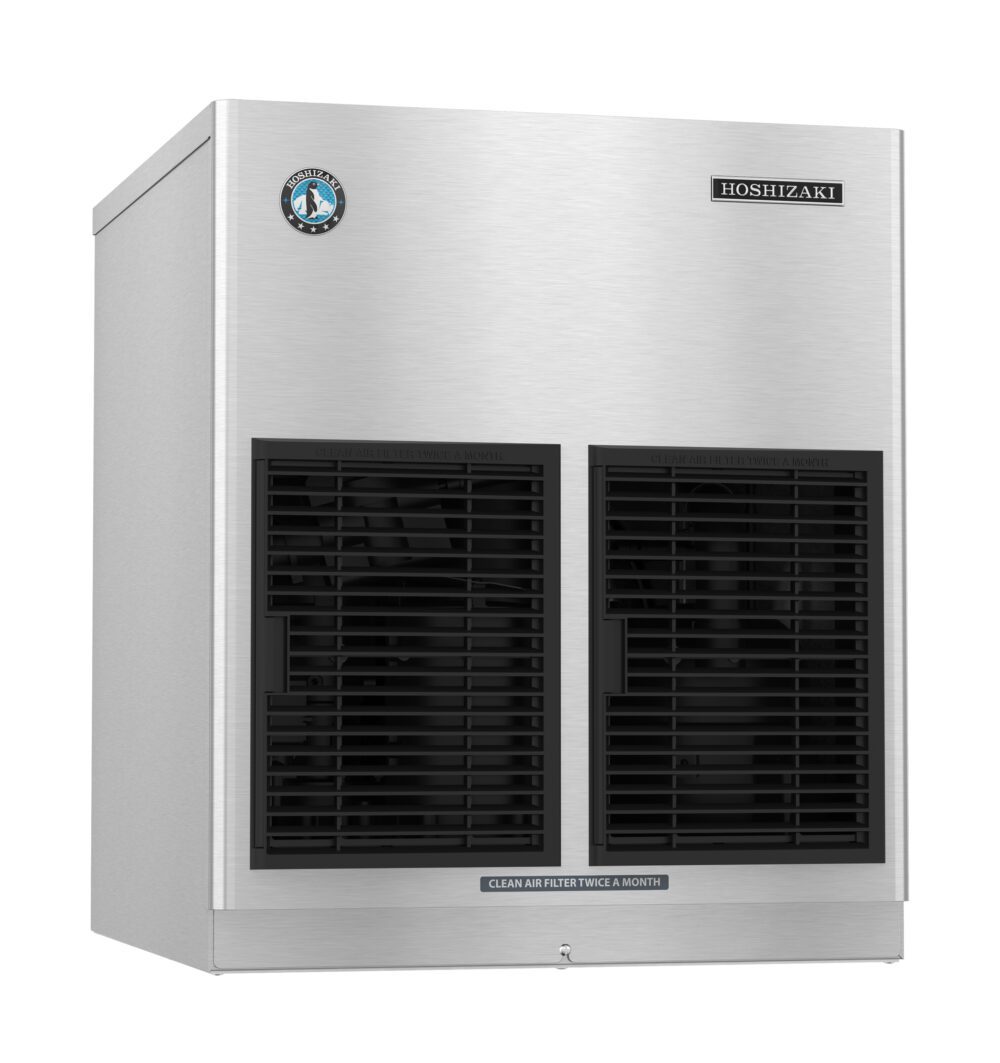

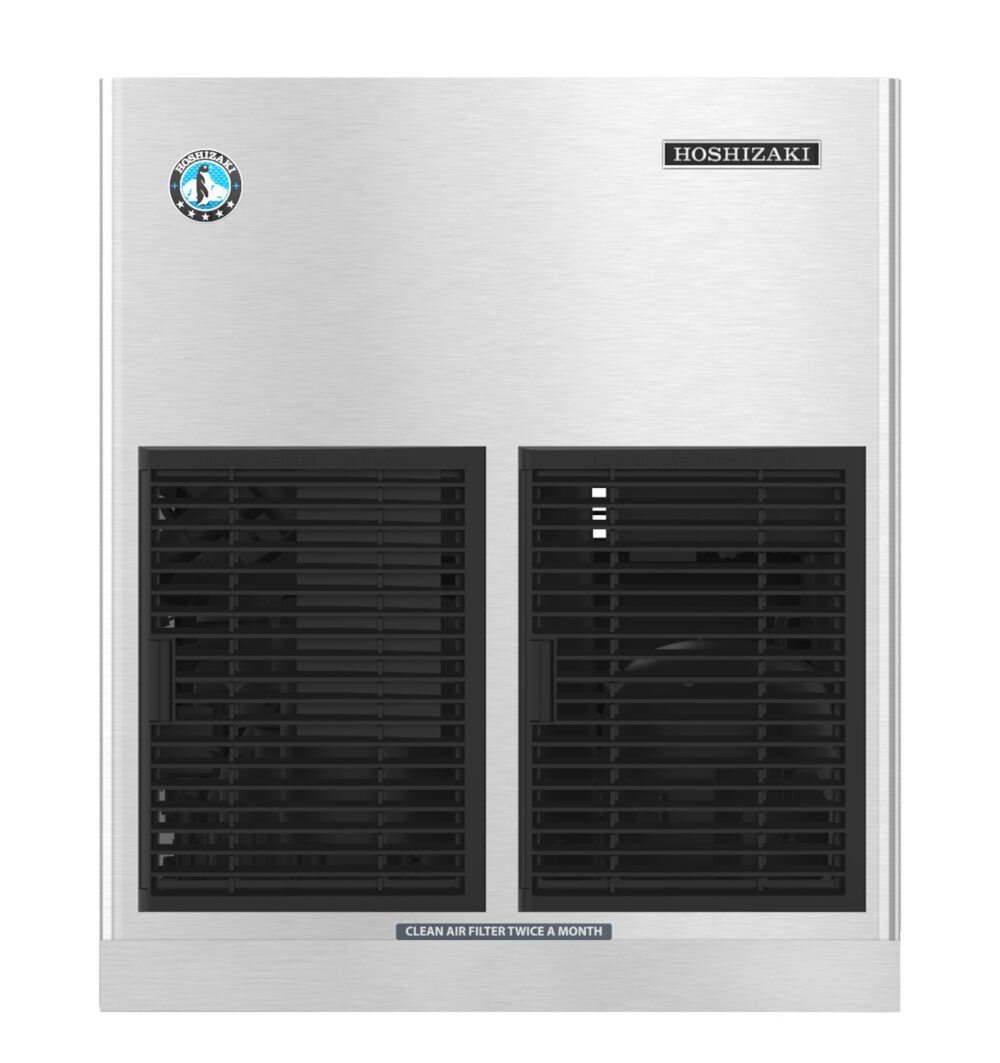

F-622MAK-C Cubelet Ice Machine, Air-cooled

22″ W X 24″ D X 26″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Small Cubelet
Daily Ice
650
Request a Quote Find a Distributor
Parts and Service
Downloads

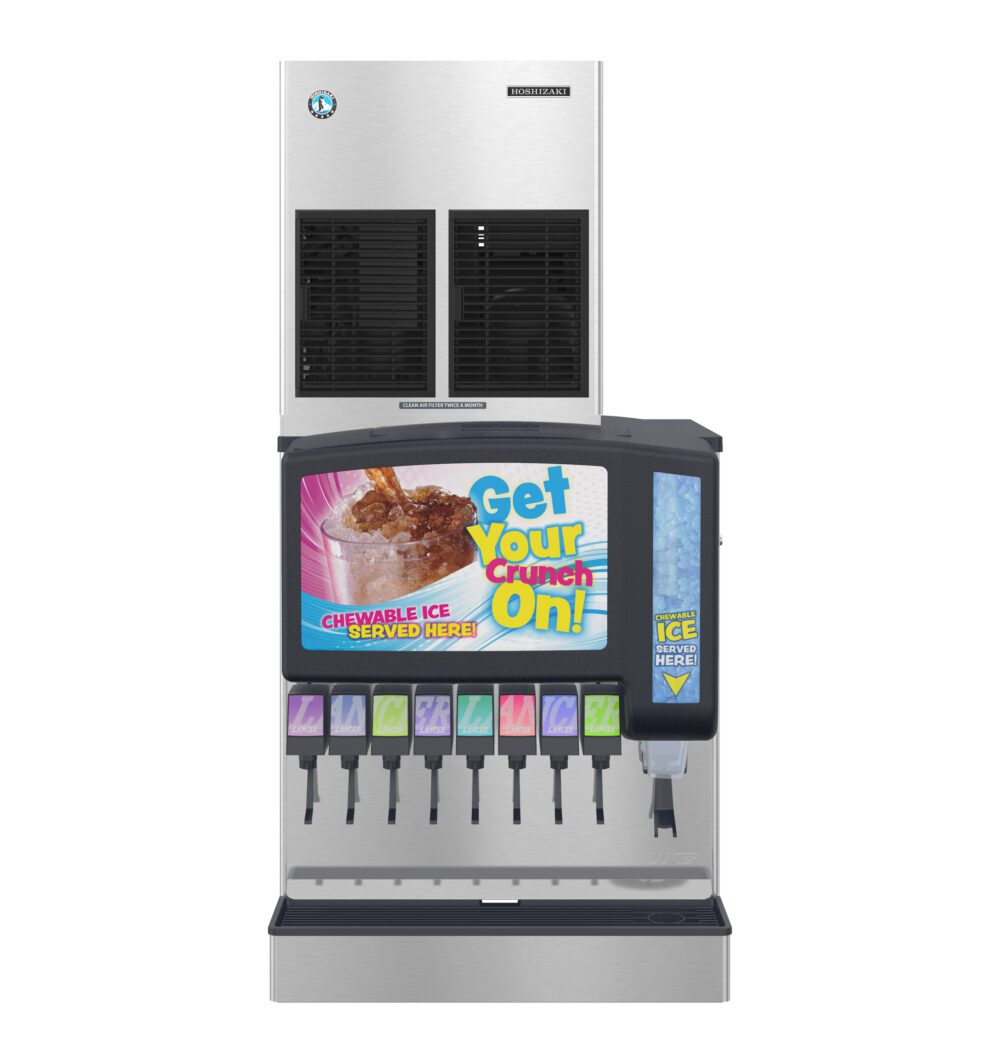

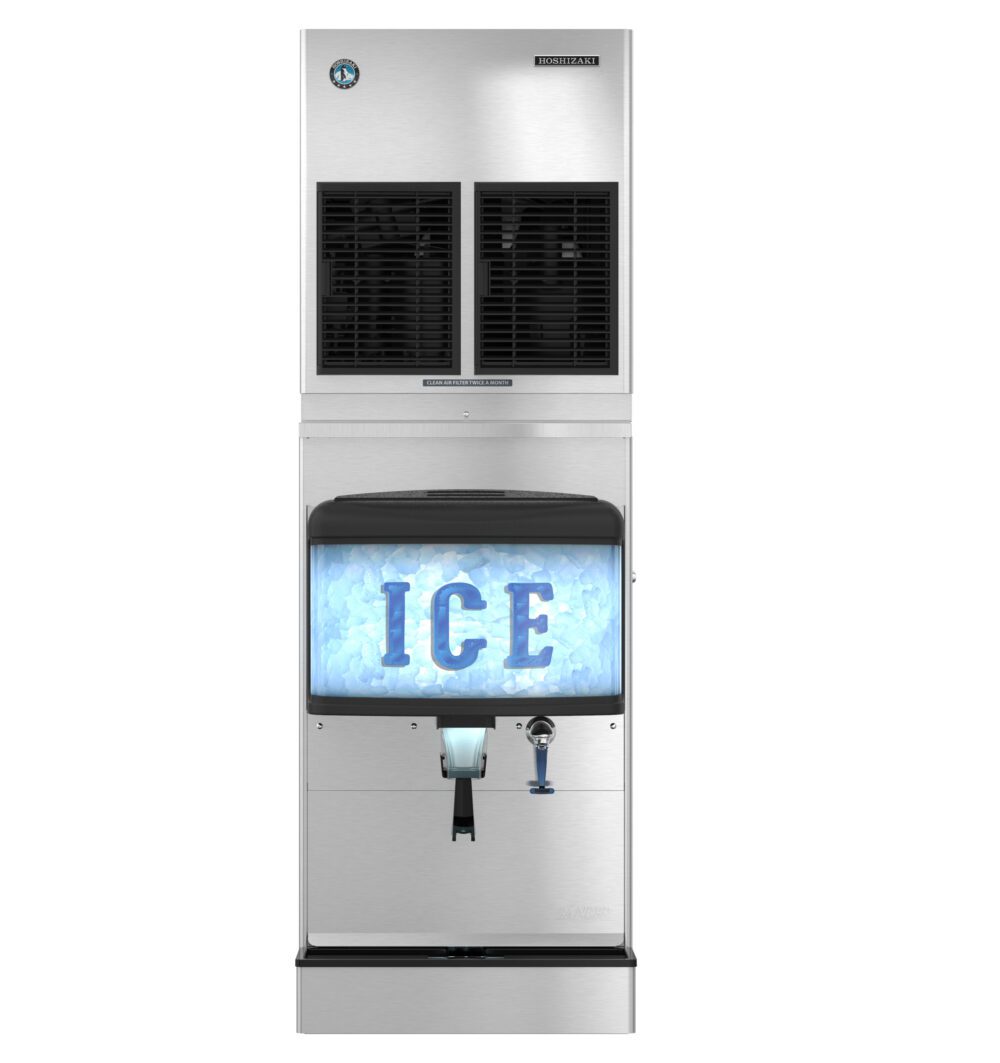

Alternate Configurations
A stainless steel Hoshizaki ice machine with a black vent and a label that reads "Clean air filter twice a month.
Electrical Specs
Single phase, 115v/60/1 3 wire, including ground, Amperage: 8.9, Max Fuse/HACR Breaker: 20A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 108 – 127V, Heat Rejection: 6000 BTU/hr, Refrigerant Charge: R290 (4.1 oz.)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
185 lbs.
Utility Consumption
4.55 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil

Overview and Features

The F-622MAK-C produces up to 650 lbs. of Cubelet nugget-style ice per day. This air-cooled, Slim Line modular ice machine features Advanced CleanCycle24™ for automatic hourly cleaning and a greaseless bearing auger for easy maintenance, and ultrasonic bin control for consistent ice levels.

Compatible bins: B-250SF, B-500SF, B-700SF, B-800SF, B-900SF; sold separately. View Bins

  • Dimensions: 22″ W x 24″ D x 26″ H
  • Up to 650 lbs. of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces small cubelet nugget-style ice
  • Durable stainless steel exterior
  • Factory-installed ultrasonic bin control
  • Stainless steel auger with greaseless bearing
  • Advanced CleanCycle24™ design performs a 2 second purge every hour to clean itself
  • Environmentally friendly R290 hydrocarbon refrigerant
  • ENERGY STAR® qualified
