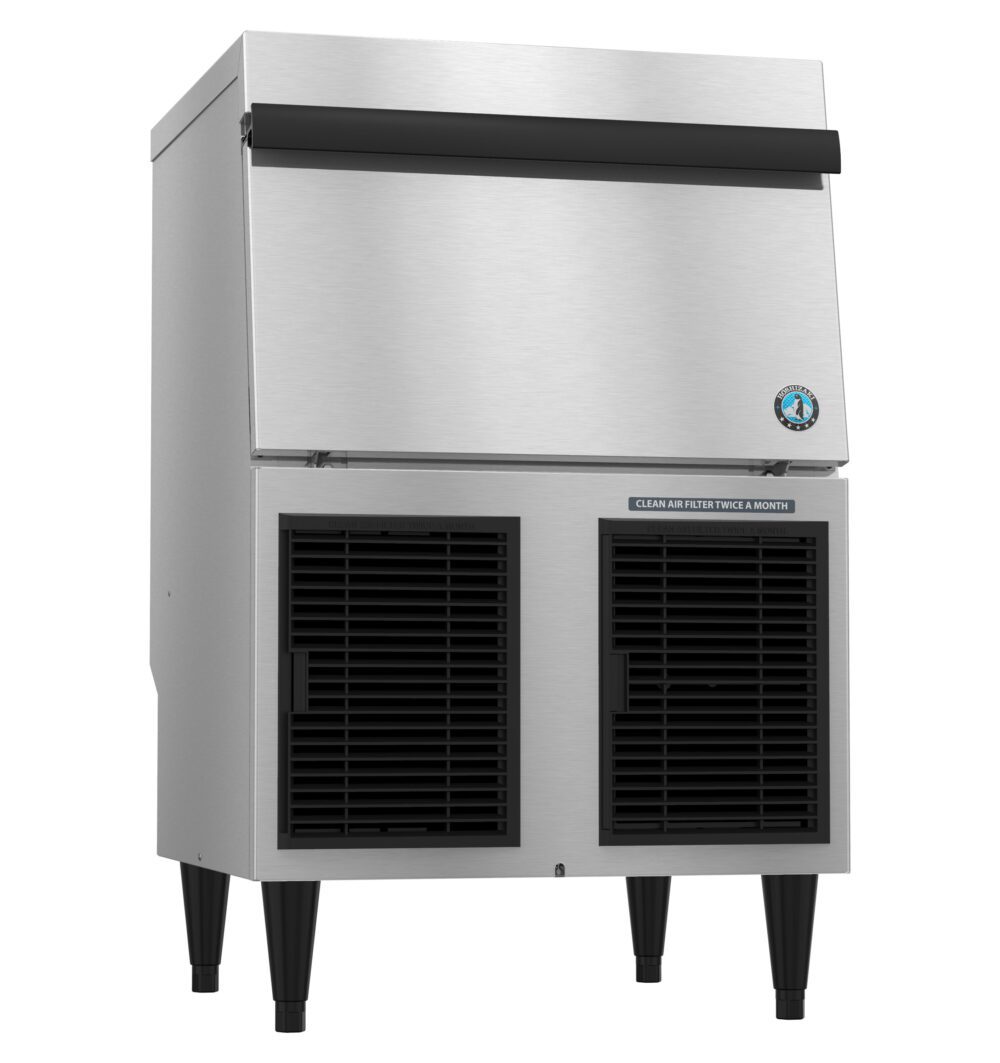

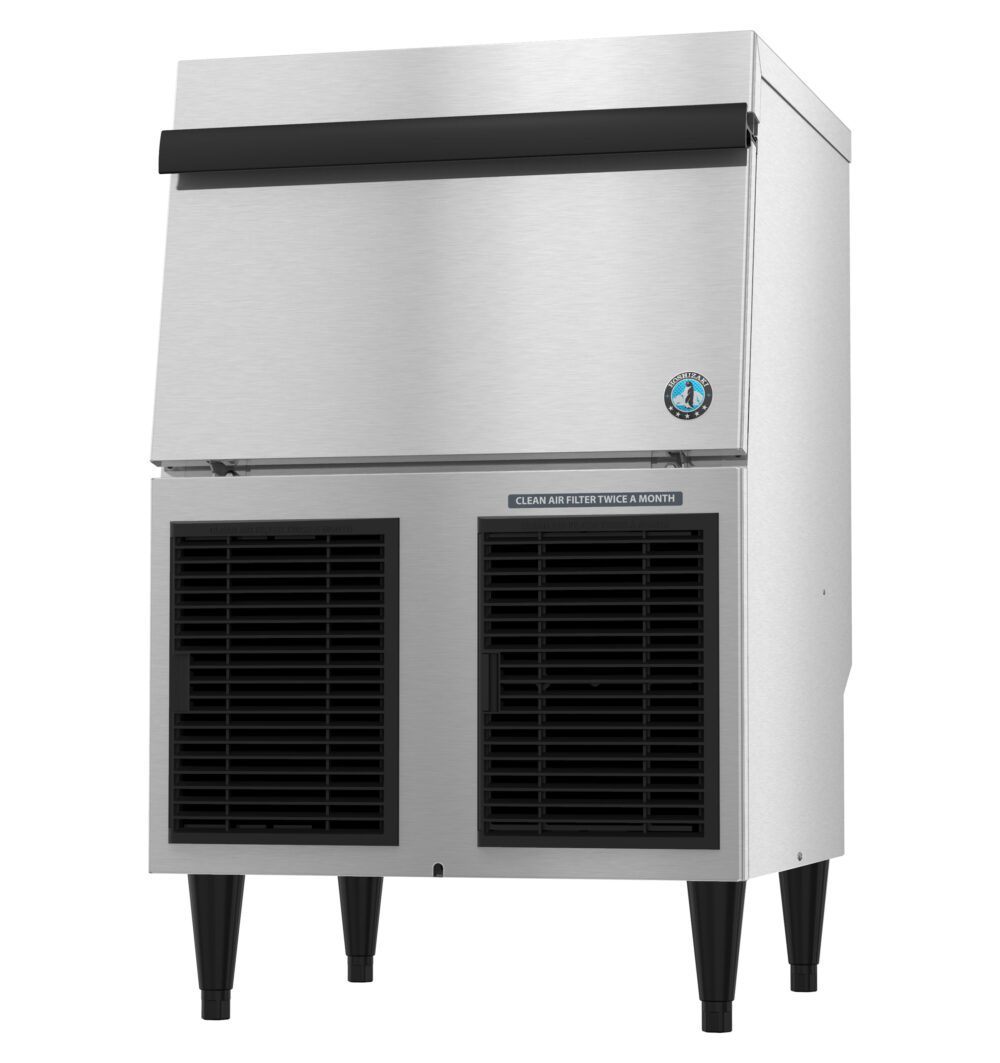

F-330BAK-C Cubelet Ice Machine, Air-cooled, Built-in Storage Bin
24″ W X 26″ D X 39″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Mini Cubelet
Daily Ice
300
Parts and Service
Electrical Specs
Single phase, 115v/60/1 8 ft cord with NEMA 5-15 Plug, Amperage: 6.3, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R290 (2.8 oz.)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
178 lbs.
Utility Consumption
5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
Overview and Features
The F-330BAK-C produces up to 300 lbs. of Cubelet nugget-style ice per day. This air-cooled, self-contained unit features a built-in storage bin that stores up to 80 lbs. of ice at a time*, Advanced CleanCycle24™ for automatic hourly cleaning, and a greaseless bearing auger for easy maintenance. With front-in, front-out airflow, it’s designed for efficient placement in a variety of operations.
*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft³ average ice density.
- Dimensions: 24″ W x 26″ D x 39″ H
- Up to 300 lbs. of ice produced per 24 hours
- Up to 80 lbs. of built-in storage capacity (2.7ft3)
- Produces mini cubelet nugget-style ice
- Durable stainless steel exterior
- Front-in, front-out airflow
- Stainless steel auger with greaseless bearing
- Advanced CleanCycle24™ design performs a 2 second purge every hour to clean itself
- Convenient drop down door
- Front access for easier maintenance
- Removable air filters
- Environmentally friendly R290 hydrocarbon refrigerant
- ENERGY STAR® qualified
