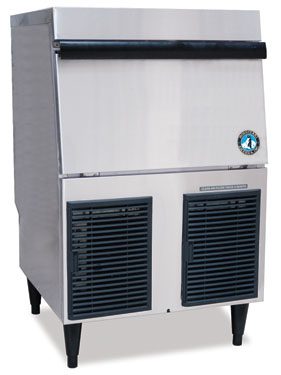

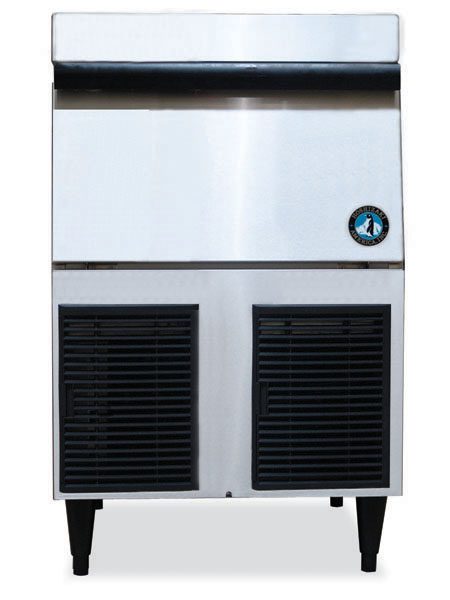

F-330BAH-C Cubelet Icemaker, Air-cooled, Built in Storage Bin
24″ W X 26″ D X 39″ H
Parts and Service
Electrical Specs
Single phase, 115v/60/1 , Amperage: 7.4, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, ( / )
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
178
Utility Consumption
6.7 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Overview and Features
The F-330BAH-C is capable of producing approximately 320 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 80 lbs of ice. It features an Automatic system flush system plus a greaseless bearing auger construction making it simple to maintain. The F-330BAH-C requires a Single phase, 115v/60/1 electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.
[fusion_button link=”https://hoshizakiamerica.com/product/F-330BAJ-C/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY F-330BAJ-C[/fusion_button]
- Dimensions: 24″ W x 26″ D x 39″ H
- Up to 320 lbs of ice produced per 24 hours
- Up to 80 lbs of built-in storage capacity (ft3)
- Produces mini cubelet nugget-style ice
- Durable stainless steel exterior
- Front in, front out airflow
- Evaporator assembly protected from peak loads
- Automatic system flush system
- R-404A refrigerant ( / )
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 7.4 amps (15 Amp Max fuse)
- 6.7 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
