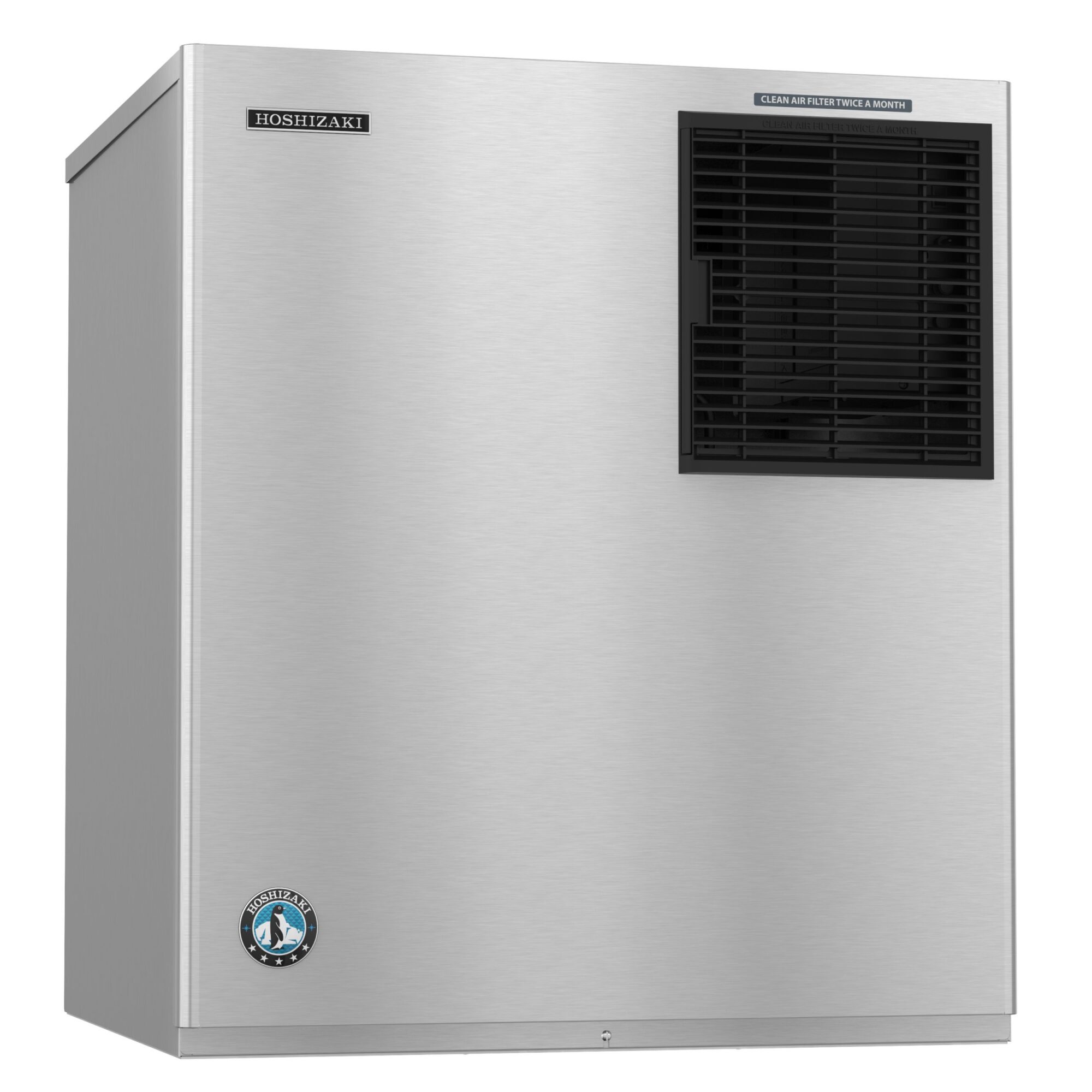

F-2001MWH Flaker Icemaker, Water-cooled
30″ W X 27″ D X 34″ H
Parts and Service
Electrical Specs
Single phase, 208-230v/60/1 4 wire, including ground, Amperage: 16.9, Max Fuse/HACR Breaker: 30 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (2 lbs. / 910 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 1/4″ Nominal ID Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent
Shipping Weight
342
Utility Consumption
3.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Overview and Features
The F-2001MWH is capable of producing approximately 2030 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-2001MWH requires a Single phase, 208-230v/60/1 4 wire, including ground electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
[fusion_button link=”https://hoshizakiamerica.com/product/F-2001MWJ/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY F-2001MWJ[/fusion_button]
- Dimensions: 30″ W x 27-1/2″ D x 34-7/16″ H
- Up to 2030 lbs of ice produced per 24 hours
- Water-cooled, Modular, 30″ Wide Icemaker
- Produces flaked ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Designed for long life dependability
- R-404A refrigerant (2 lbs. / 910 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 16.9 amps (30 Amp Max fuse)
- 3.5 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1 4 wire, including ground
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
