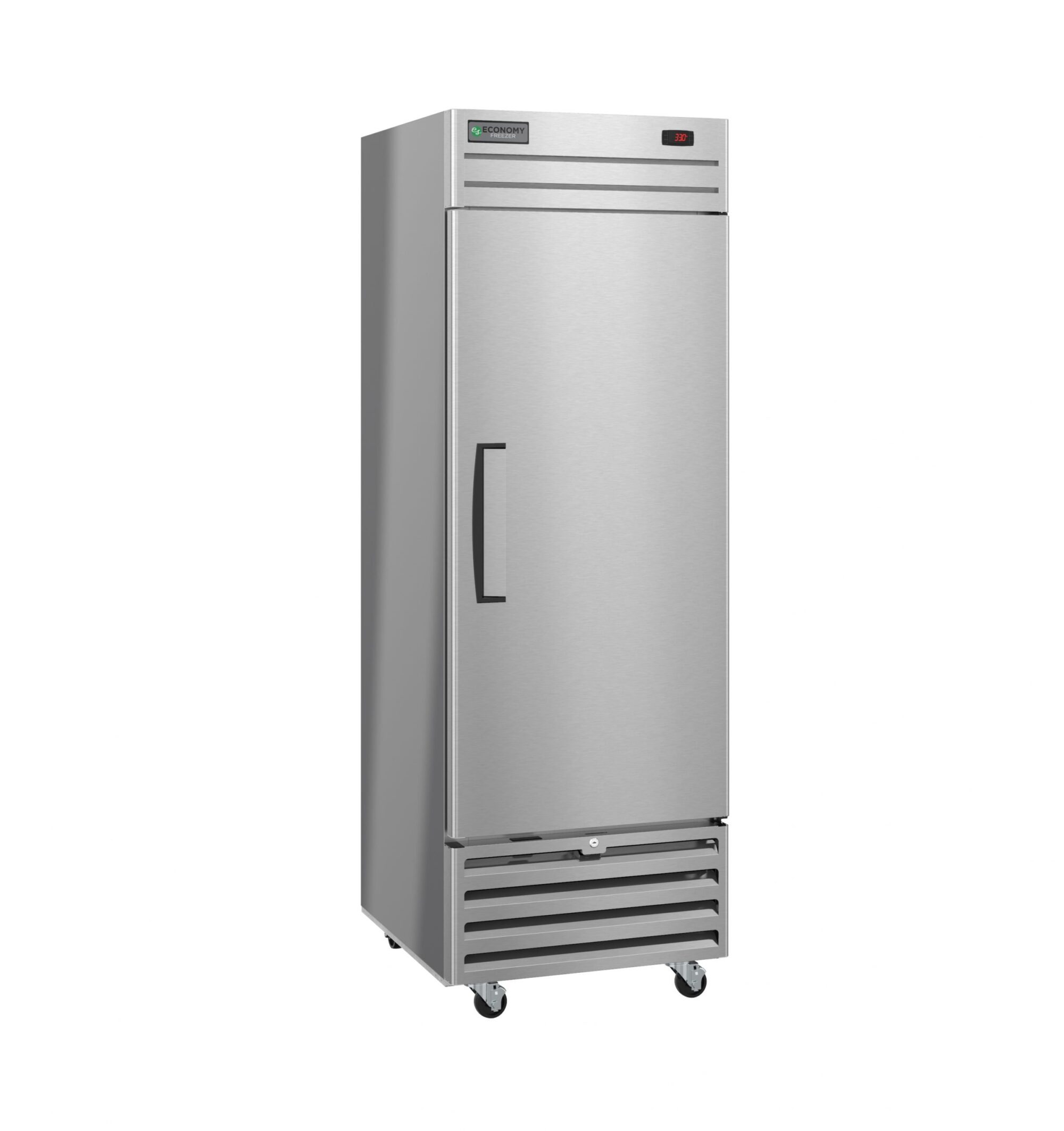

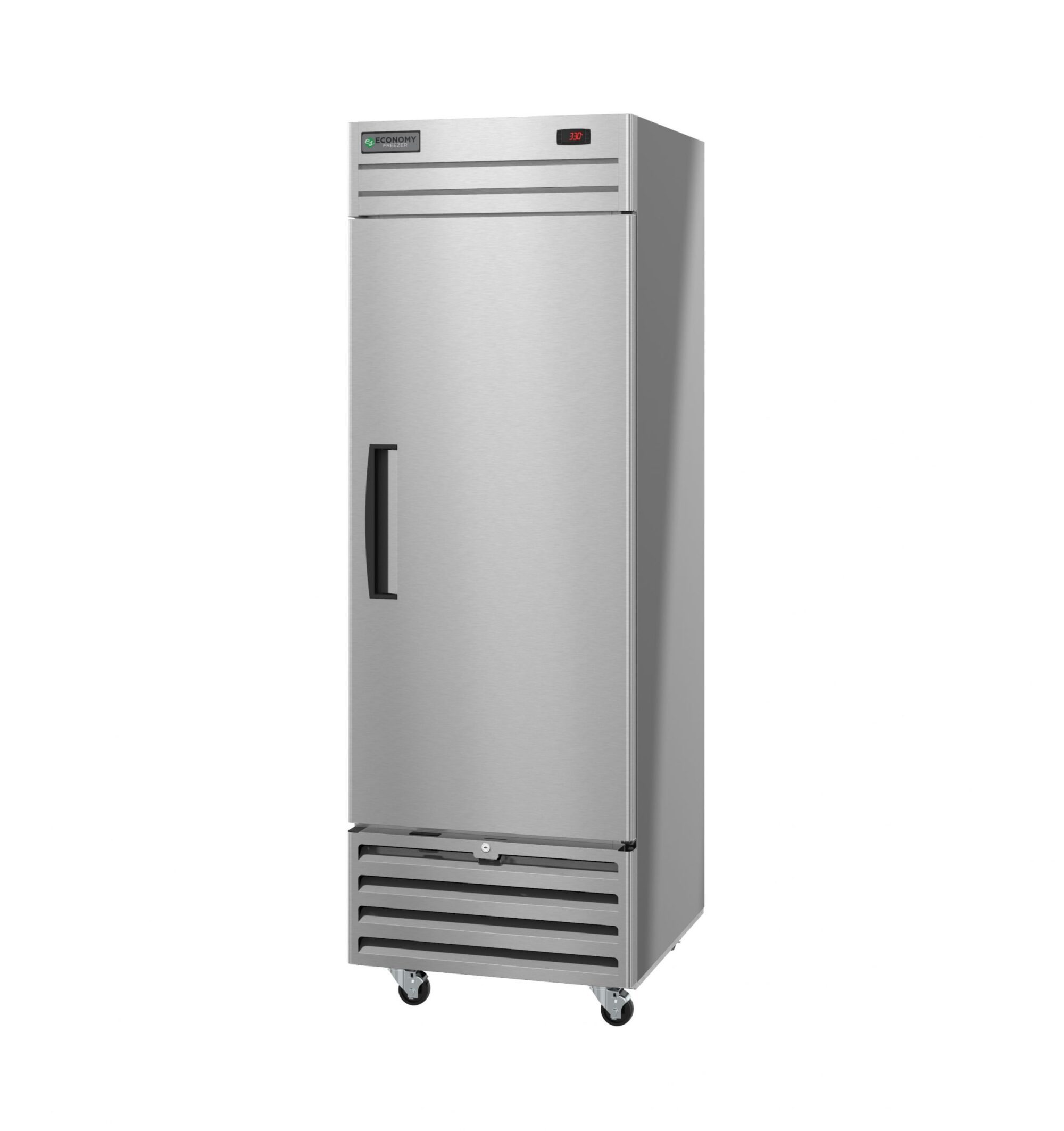

EF1A-FS Freezer, Single Section Upright, Full Stainless Door with Lock

27″ W X 29.63″ D X 81.93″ H
Volume
17.8
Electrical
115v/60/1
Sections
1
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 9 ft. cord and plug, Energy Consumption: 4.62 kwh/day, Amperage: 3.2, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 103 – 127V, Control Setpoint Range: -10 – 0°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1399 BTU/hr at 1/3 HP, Heat Rejection: BTU/hr
Shipping Weight
279
Storage Specs
Nominal storage capacity: 17.8 ft3, Interior storage capacity: 17.74 ft3, Door opening: 22.25″ W x 52.1″ H, Depth with door fully extended: 55.38″ D, Shelves included: 3
Warranty
Two Years: Parts & Labor warranty on entire machine.

Overview and Features

The EF1A-FS Economy Series upright single section freezer with a full stainless door is ready to get the job done. The dependable 1/3 HP motor that powers the compressor in the bottom of this unit provides the cabinet with a continuous stream of cold air.

The stainless steel exterior door(s) and interior floor with aluminum sides, rear, and top) ensure a durable yet attractive cabinet. Plus, it is easy to clean! The EF1A-FS Includes 3 epoxy coated wire coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, energy efficient interior led light bar, and the (4) 4″ stem casters (2 with brakes) are standard. It features a self-closing, lockable full stainless door is field reversible (no kit req’d). Optional kits: Additional epoxy shelf. The unit is UL EPH Listed, UL Listed, ENERGY STAR® Qualified and includes a five years compressor warranty / two years parts and labor warranty.

  • Dimensions: 27″ W x 29.63″ D x 81.93″ H
  • Net capacity of 17.74 cubic feet
  • Energy efficient interior LED light
  • Time initiated automatic defrost
  • Stainless steel exterior door(s) and interior floor with aluminum sides, rear, and top)
  • Energy efficient heated condensate removal
  • Built-in pocket door handle with black plastic trim
  • Self-closing, lockable full stainless door is field reversible (no kit req’d)
  • Aluminum shelf supports
  • Energy efficient interior LED light bar
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Includes 3 epoxy coated wire coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Optional kits: Additional epoxy shelf
  • Nominal Compres. of 1399 BTU/hr at 1/3 HP
  • 115v/60/1, 9 ft. cord and plug
  • Shipping Crate: 31.5″ L x 28.75″ D x 84″ H at 279 lbs
  • ENERGY STAR® Qualified
  • Five Years compressor warranty, Two Years parts and labor warranty
