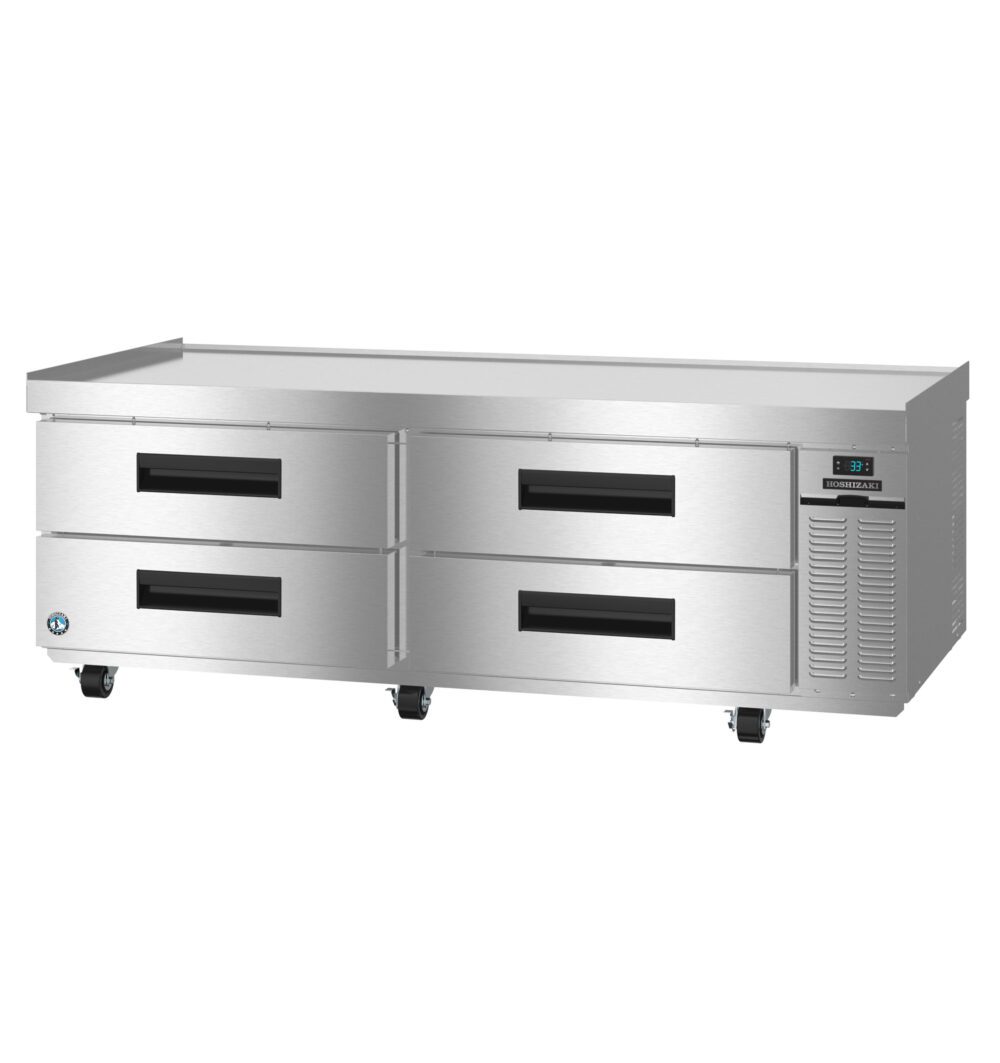

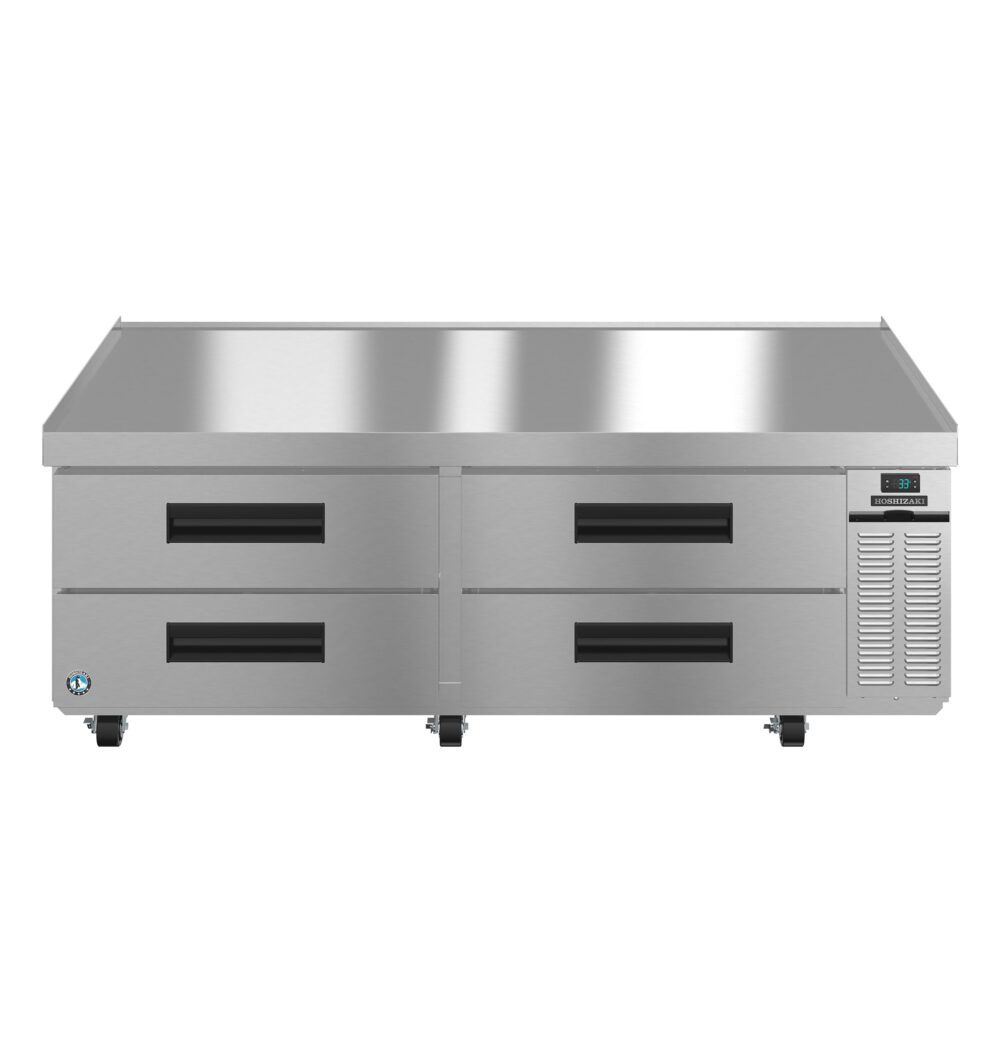

CR72B Refrigerator, Two Section Chef Base Prep Table – Right Condenser
72.5″ W X 32.25″ D X 26″ H
Volume
15.69
Electrical
115v/60/1
Sections
2
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.53 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 28 – 45°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 394 BTU/hr
Shipping Weight
500 lbs.
Storage Specs
Interior storage capacity: 15.69 ft3, Drawer opening: 27.75″ W x 7″ H, Depth with drawer fully extended: 55.75″ D, Drawers included: 4
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The CR72B Steelheart® Series Refrigerated Chef Base brings cold storage and cooking efficiency together in one powerful unit. Built to support your go-to cooking equipment on top, it keeps ingredients perfectly chilled and within easy reach below. With durable stainless steel construction, consistent temperature performance, and a right-side condenser for versatile installation, the CR72B is made to keep up with the pace of a professional kitchen.
- Dimensions: 72.5″ W x 32.25″ D x 26″ H
- Heavy duty 16 gauge stainless steel top with marine edge (front/rear), drip edge (sides)
- Ceramic heat shield integral to top protects food from high heat
- 1,500 lb. capacity provides sturdy base for cooking equipment
- Removable air filter protects condenser and makes for easier cleaning
- Environmentally friendly R290 refrigerant
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Solid state digital controller with temperature alarms and LED display (Fahrenheit or Celsius)
- Cabinet and drawers are insulated with 2″ CFC free, foamed in place polyurethane
- (4) Stainless steel drawers with stainless steel interior
- Drawer module frames, acetal rollers, and drawer stops are formed with heavy duty stainless steel, fully welded construction and securely fastened in the cabinet
- Drawer capacity: (2) 12″ x 20″ x 6″ deep pans (pans by others)
- Drawers are equipped with finger cut-outs for easy removal of pans
- Extruded aluminum flush mount drawer handles
- Magnetic drawer gasket is easily removable for cleaning
- Removable stainless steel end panel for access to refrigeration system
- Enamel coated evaporator coil for extended life
- Energy efficient automatic hot gas condensate evaporator
- (6) 4″ casters (all with brakes) are standard
