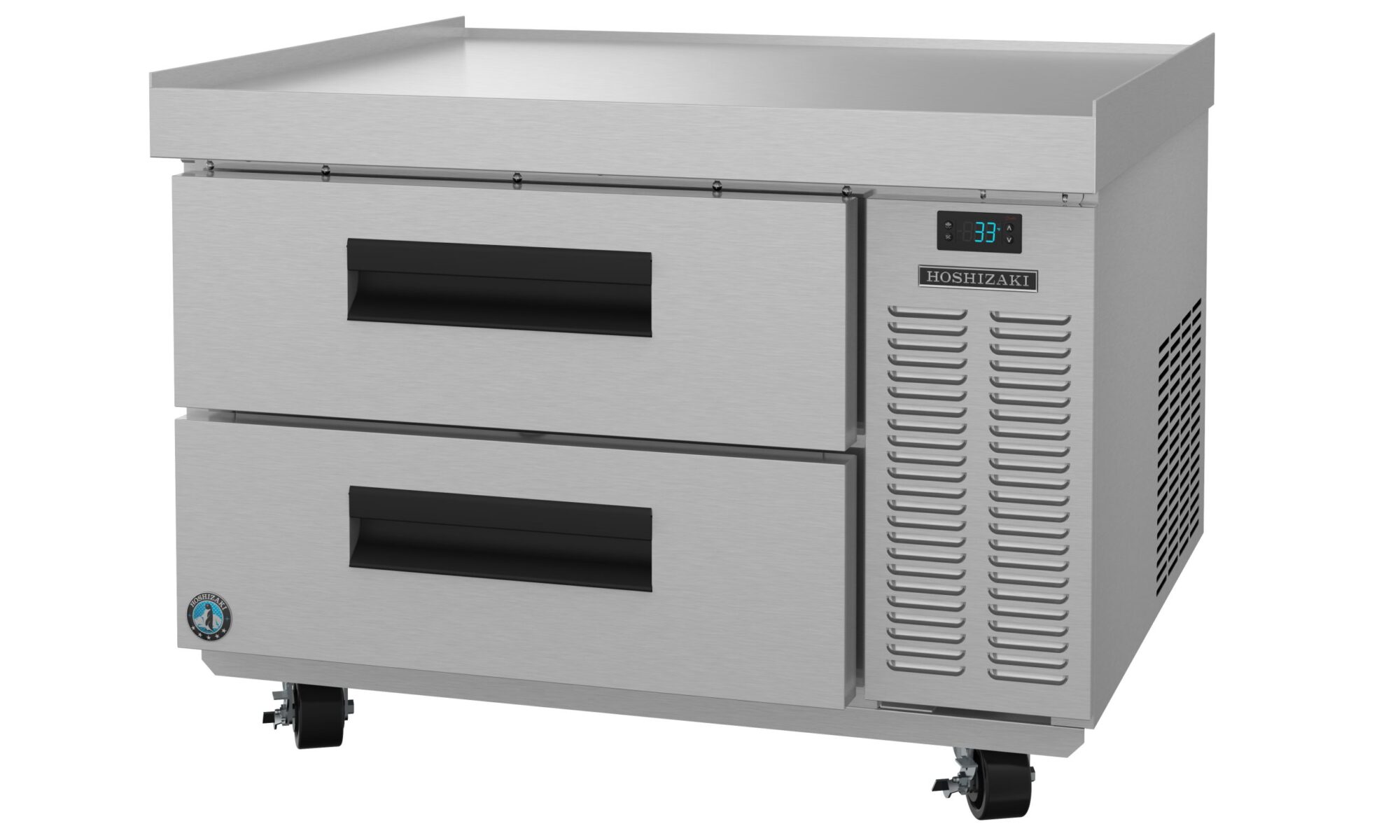

CR36A Refrigerator, Single Section Chef Base Prep Table, Stainless Drawers

36″ W X 32″ D X 26″ H
Volume
6.88
Electrical
115v/60/1
Sections
1
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.6 kwh/day, Amperage: 2.2, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 223 BTU/hr
Shipping Weight
295
Storage Specs
Nominal storage capacity: 6.88 ft3, Interior storage capacity: 6.12 ft3, Drawer opening: 36.5″ W x ” H, Depth with drawer fully extended: 55.75″ D, Drawers included: 2
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The CR36A single section refrigerated Chef Base makes it easy to increase productivity by keeping your refrigerated ingredients and cooking equipment in one, convenient location. The 26″ high work surface, supports up to 700 lbs. of equipment and includes 2 stainless steel drawers. Each drawer accommodates (1) 12″ x 20″ x 6″ deep pan & (1) 1/2 long, 6″ deep pan (sold separately). The dependable 1/5 HP compressor motor distributes air evenly throughout the drawers and around the food product in the pans.

The CR36A cabinet is constructed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 36.5″ W x 32.25″ D x 26″ H
  • 26″ high work surface, supports up to 700 lbs. of equipment
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer handle
  • (2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Drawers capacity: (1) 12″ x 20″ x 6″ deep pan & (1) 1/2 long, 6″ deep pan (pans by others)
  • Ceramic heat shield integral to 16 gauge stainless steel top protects food from high heat
  • R290 refrigerant
  • (4) 4″ HD Casters (All with brakes) are standard
  • Drawers are equipped with finger cut-outs for easy removal of pans
  • Optional kits: Additional long drawer divider bar, Short drawer divider bar, Condensor filter
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 38″ L x 34.5″ D x 30.5″ H at 295 lbs
  • Automatic time-initiated heated defrost
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
