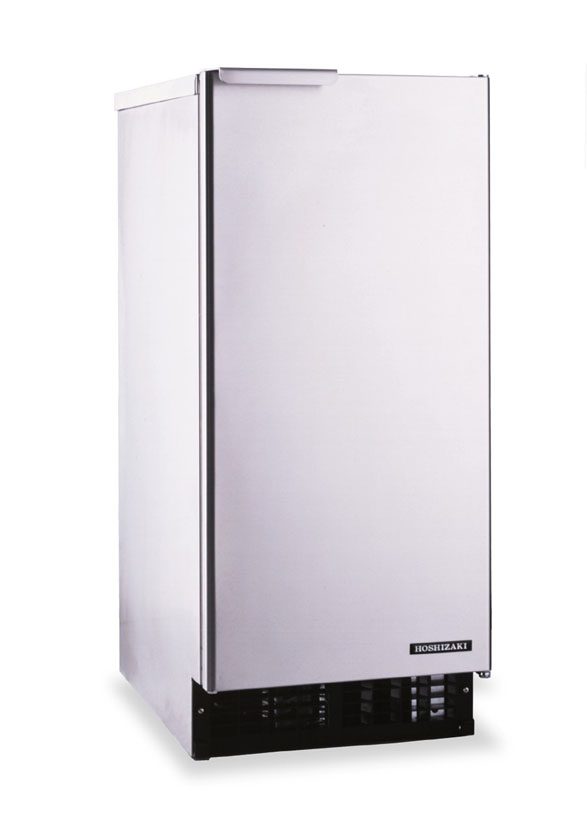

C-101BAH-AD Cubelet Ice Machine, Air-cooled, ADA Compliant Height
14″ W X 22″ D X 31″ H
Parts and Service
Electrical Specs
Single phase, 115v/60/1 6 ft cord with NEMA 5-15 Plug, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 7 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-134a, (3.17 oz. / 90 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight
130
Utility Consumption
12.1 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Two Years: Parts & Labor warranty on entire machine.
Overview and Features
This compact undercounter Cubelet Icemaker is the perfect addition to any hotel suite, office breakroom, or high end kitchen. The C-101BAH-AD is capable of producing approximately 92 lbs of Cubelet nugget-style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. Drain pump not included. *Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
[fusion_button link=”https://hoshizakiamerica.com/product/C-80BAJ-AD/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY C-80BAJ-AD[/fusion_button]
- Dimensions: 14-7/8″ W x 22-5/8″ D x 31-1/2″ H
- Up to 92 lbs of ice produced per 24 hours
- Up to 22 lbs of built-in storage capacity (0.7ft3)
- Produces mini cubelet nugget-style ice
- Undercounter design is less than 34″ Tall
- Front in, front out airflow
- UL approved for outdoor use
- Swing style field reversable door
- Accessory – HS-5061 drain pump assembly
- R-134a refrigerant (3.17 oz. / 90 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 7 – 113psig
- Voltage range: 104 – 127V
- 4 amps (15 Amp Max fuse)
- 12.1 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1 6 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Two Years: Parts & Labor warranty on entire machine.
- One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
