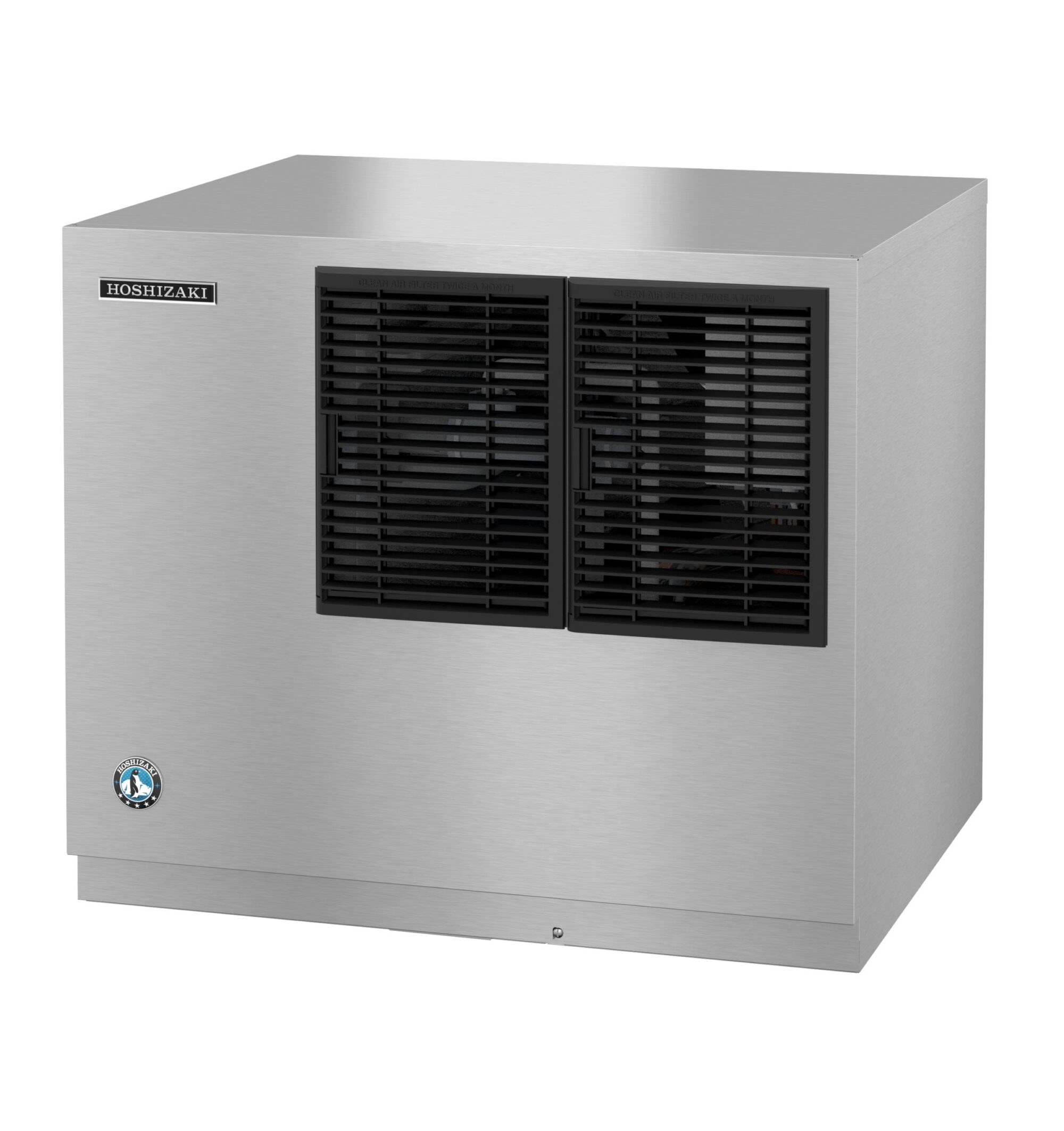

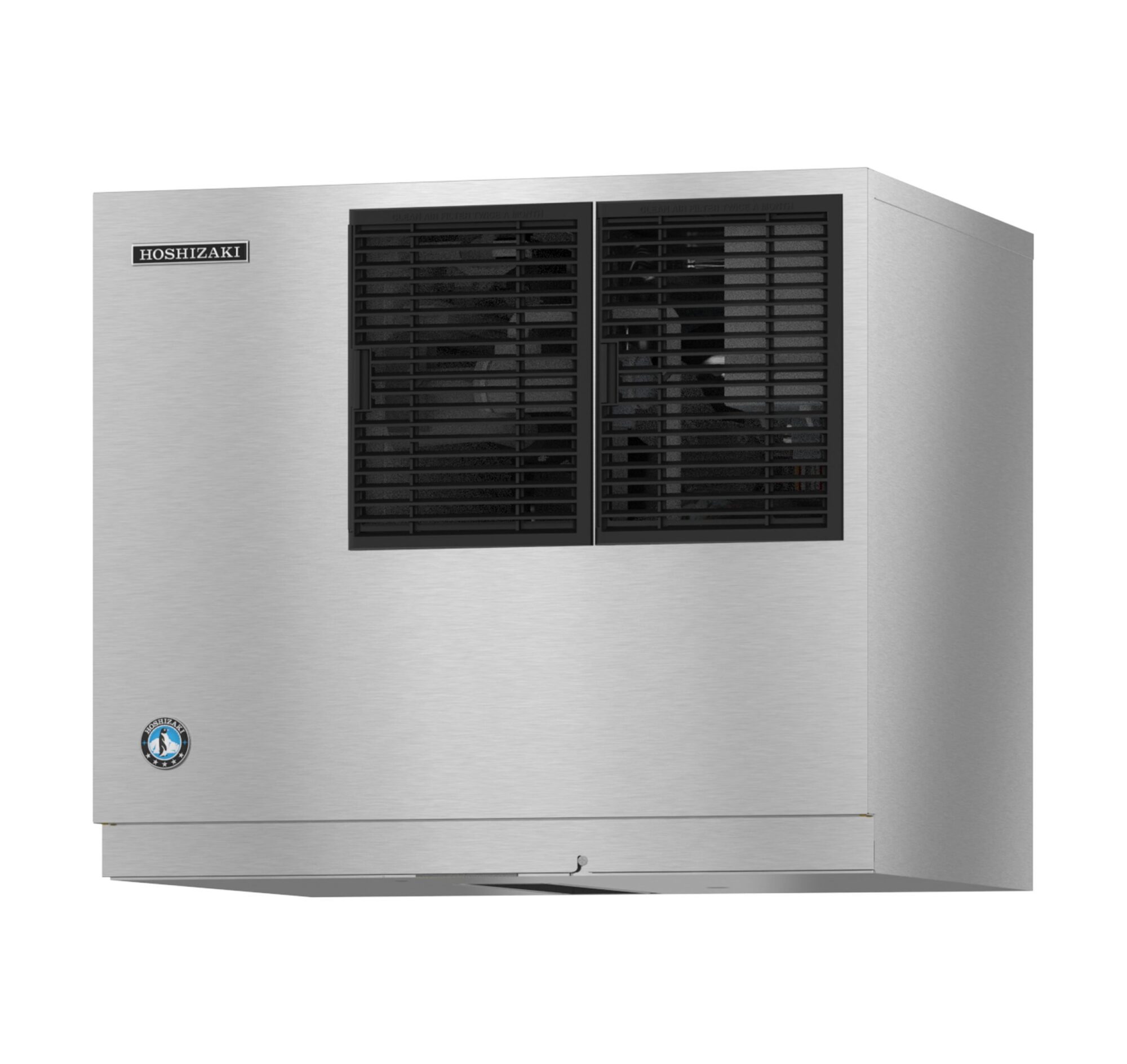

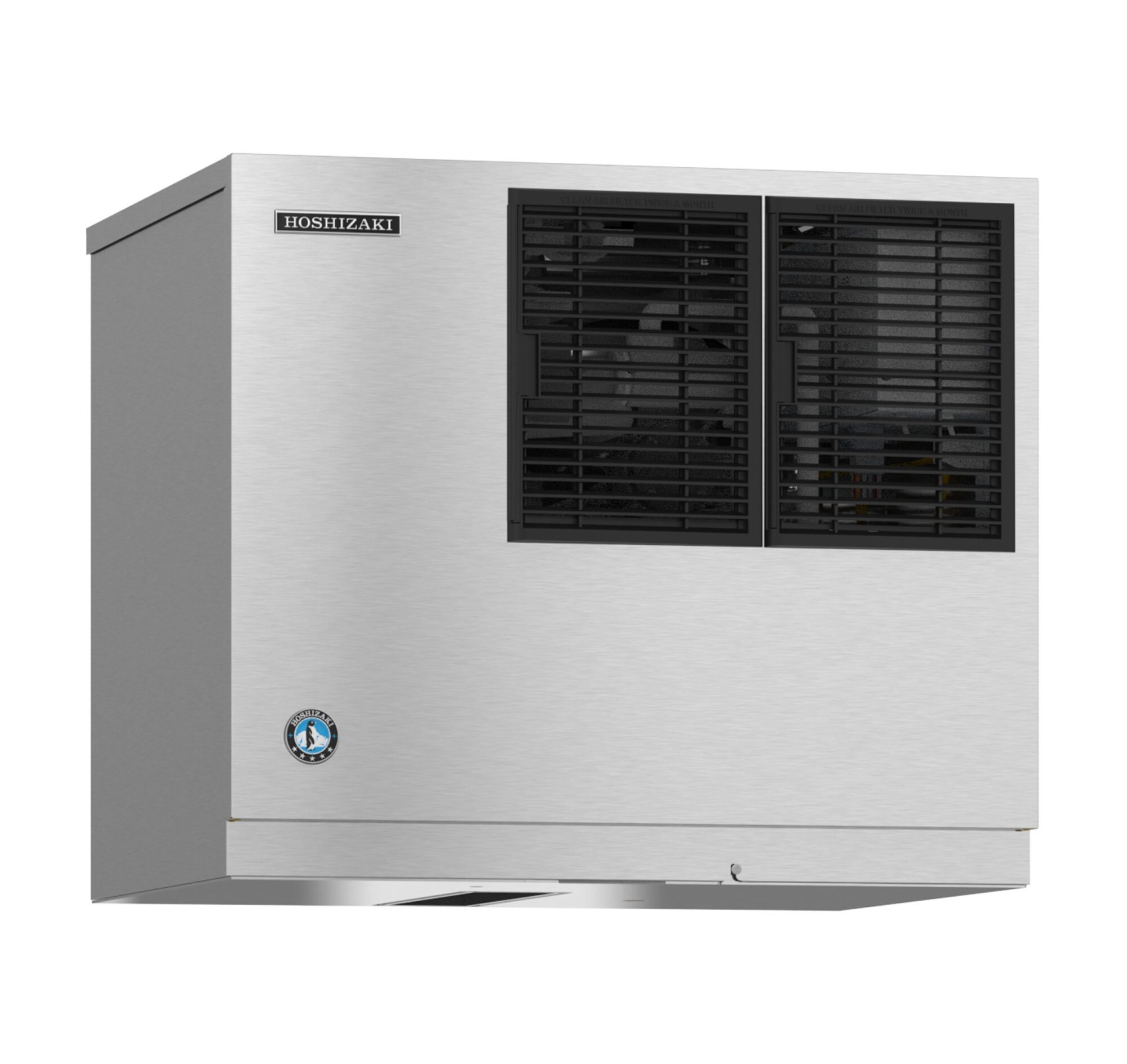

KMD-705MAJ Crescent® Cuber Icemaker, Air-cooled

30″ W X 24″ D X 26″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Crescent
Daily Ice
721
Alternate Configurations
Electrical Specs
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 14.3, Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 9400 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 12.1 oz. / 125
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
200
Utility Consumption
4.75 kWh per 100 lbs @ 90/70, 22 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The KMD-705MAJ is capable of producing approximately 721 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided KMEdge™ stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Air-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-705MAJ requires a 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.

  • Dimensions: 30″ W x 24″ D x 26″ H
  • Up to 721 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B
  • EverCheck™ alert system
  • CycleSaver™ design
  • Simple one-hour cleaning process
  • R-404A refrigerant (2 lbs. 12.1 oz. / 1250 g)
  • Heat Rejection: 9400 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 14.3 amps (20 Amp Max fuse)
  • 4.75 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine
  • Five Years: Parts & Labor warranty on evaporator
