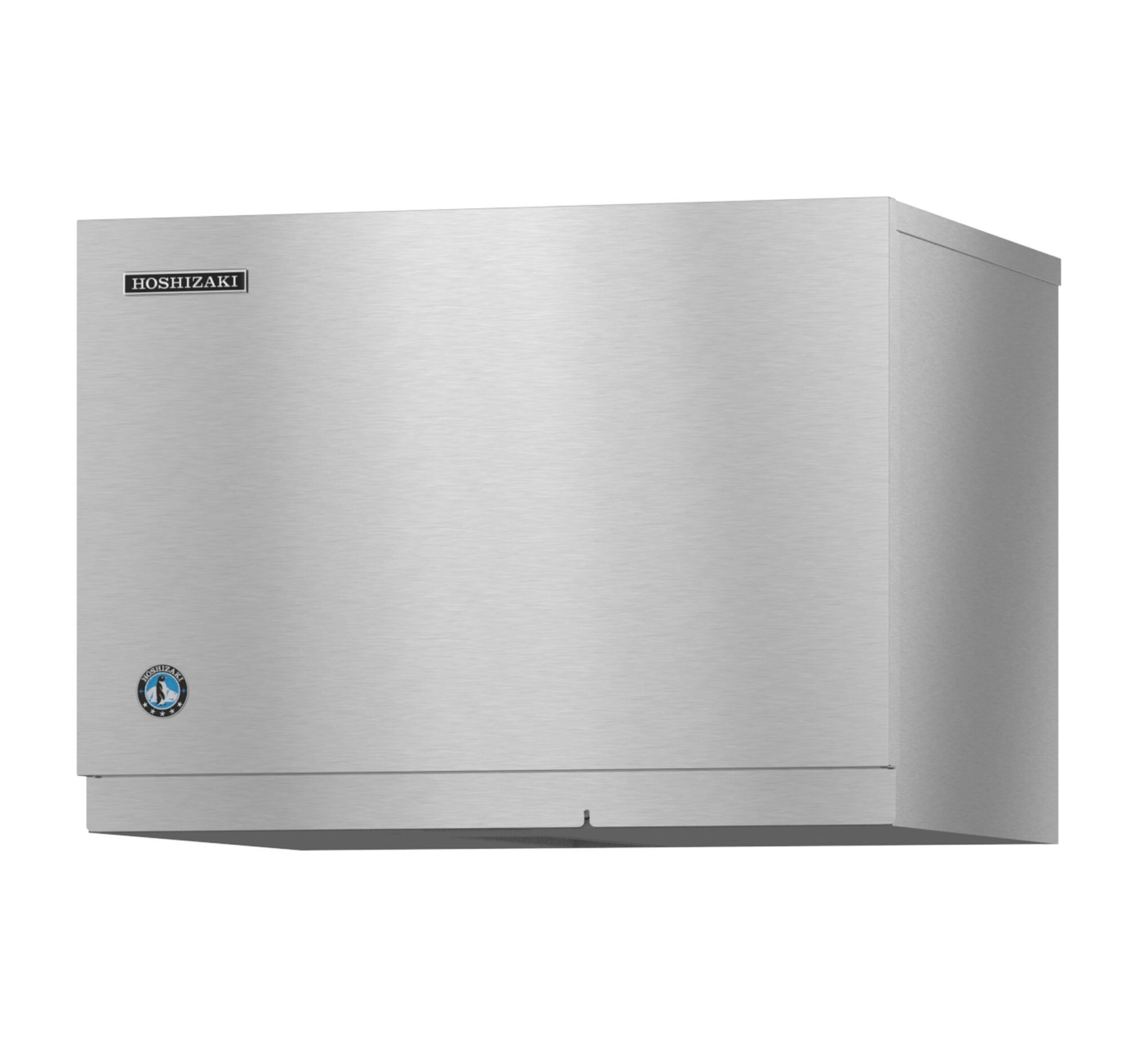

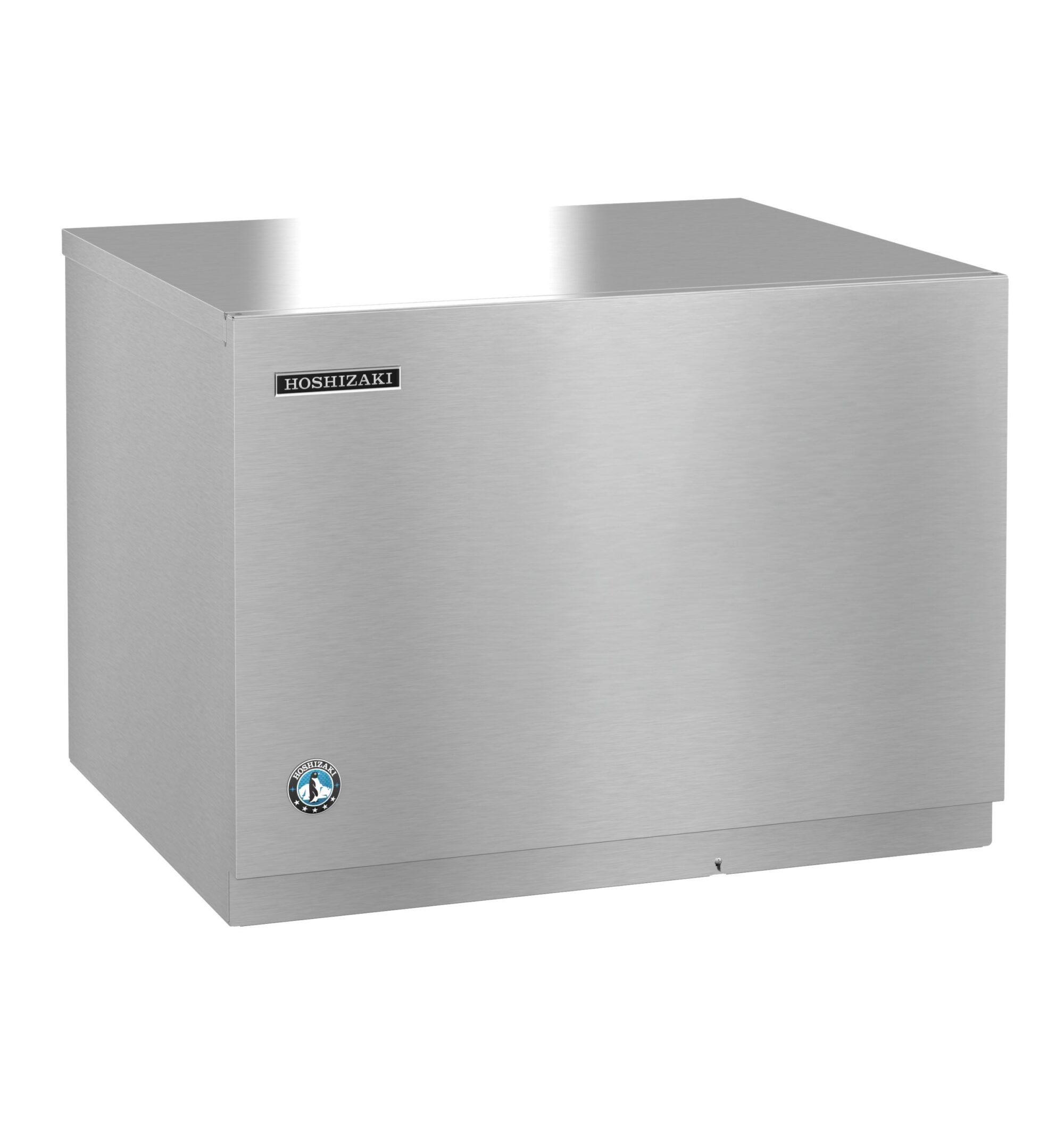

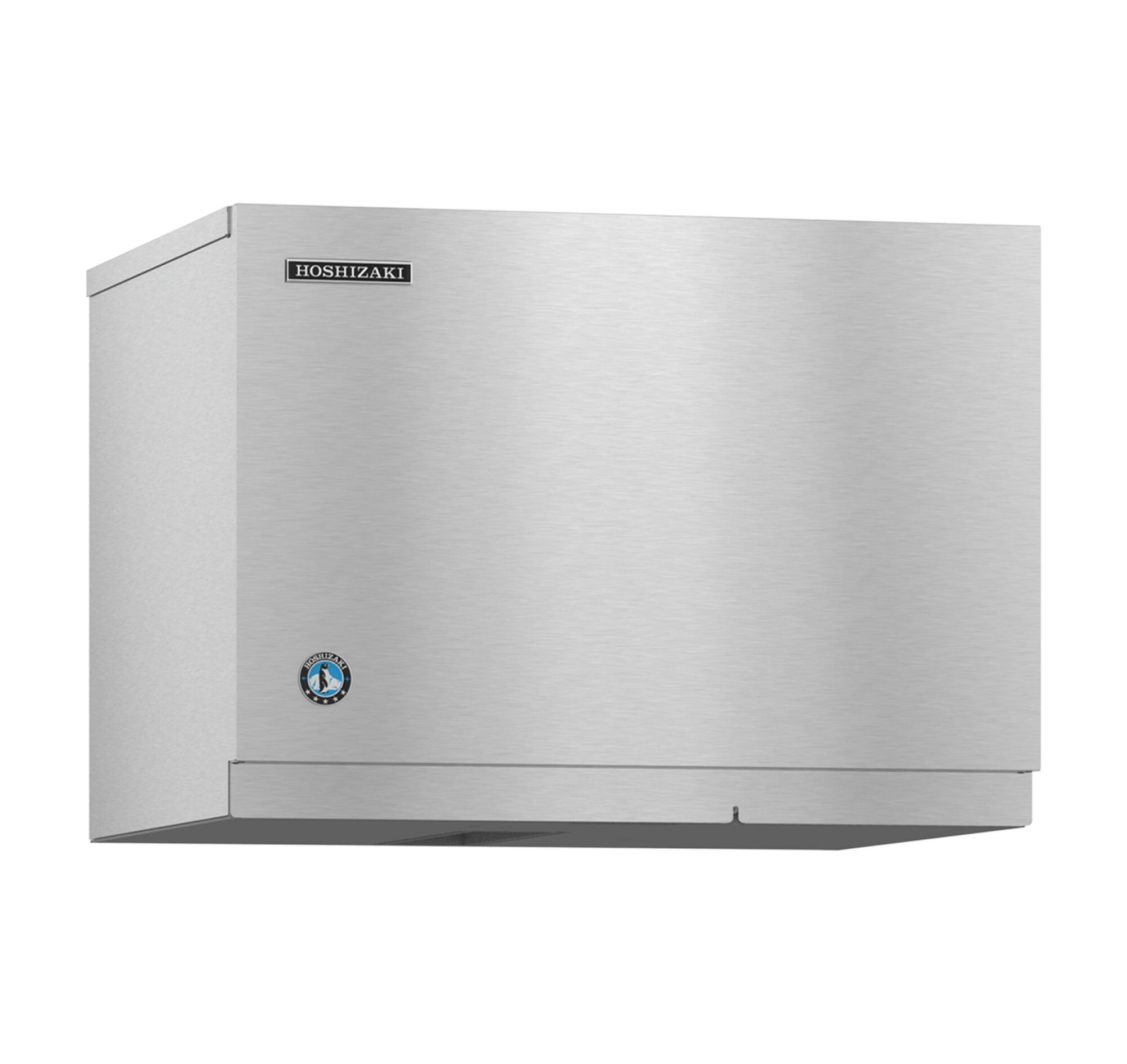

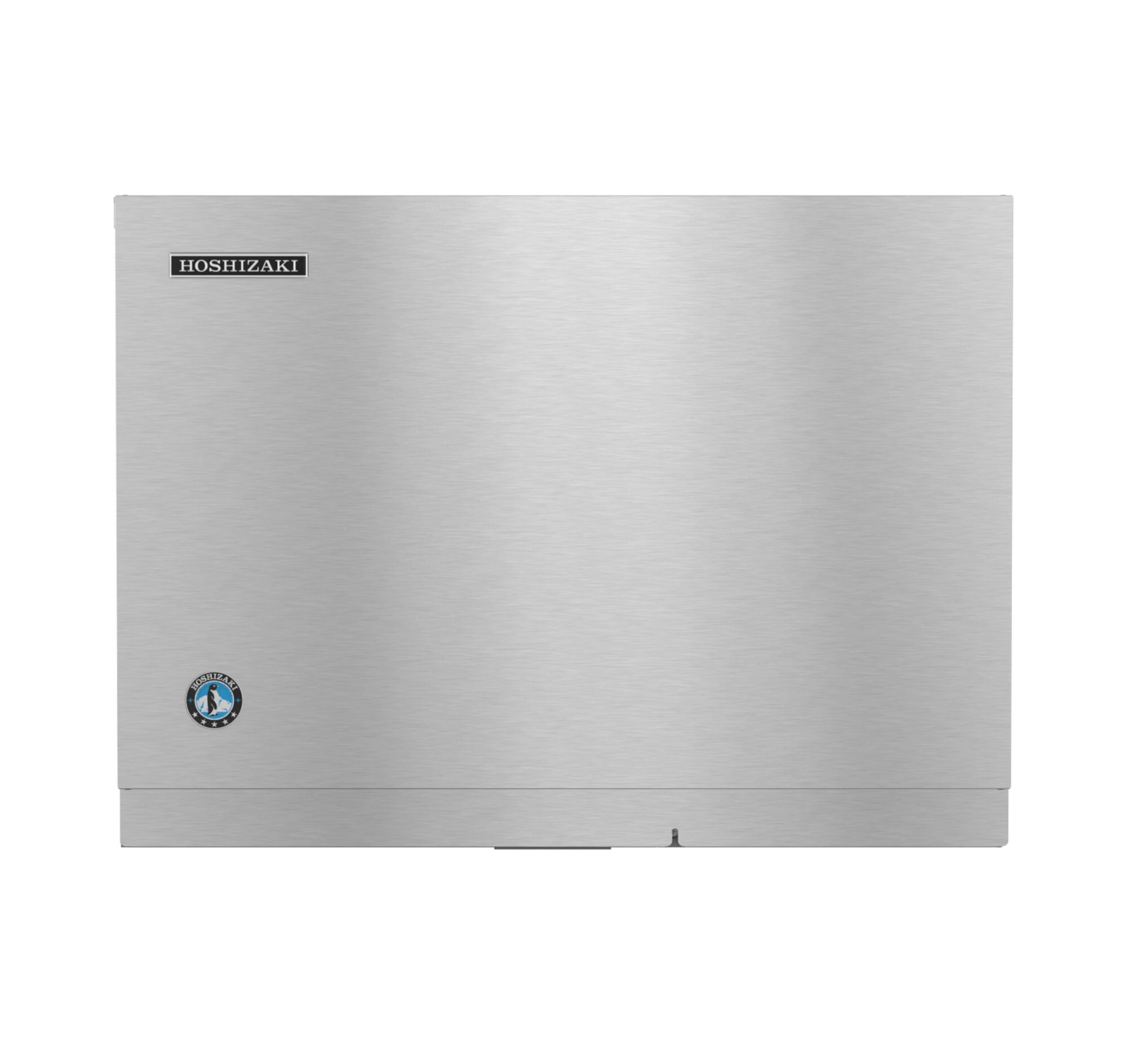

KMD-505MRJZ Crescent® Cuber Icemaker, Remote-cooled
Overview and Features
The KMD-505MRJZ is capable of producing approximately 560 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided KMEdge™ stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-505MRJZ requires a 115v/60/1 electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.
The KMD-505MRJZ is rated for use with URC-5FZ Remote Condenser; sold separately.

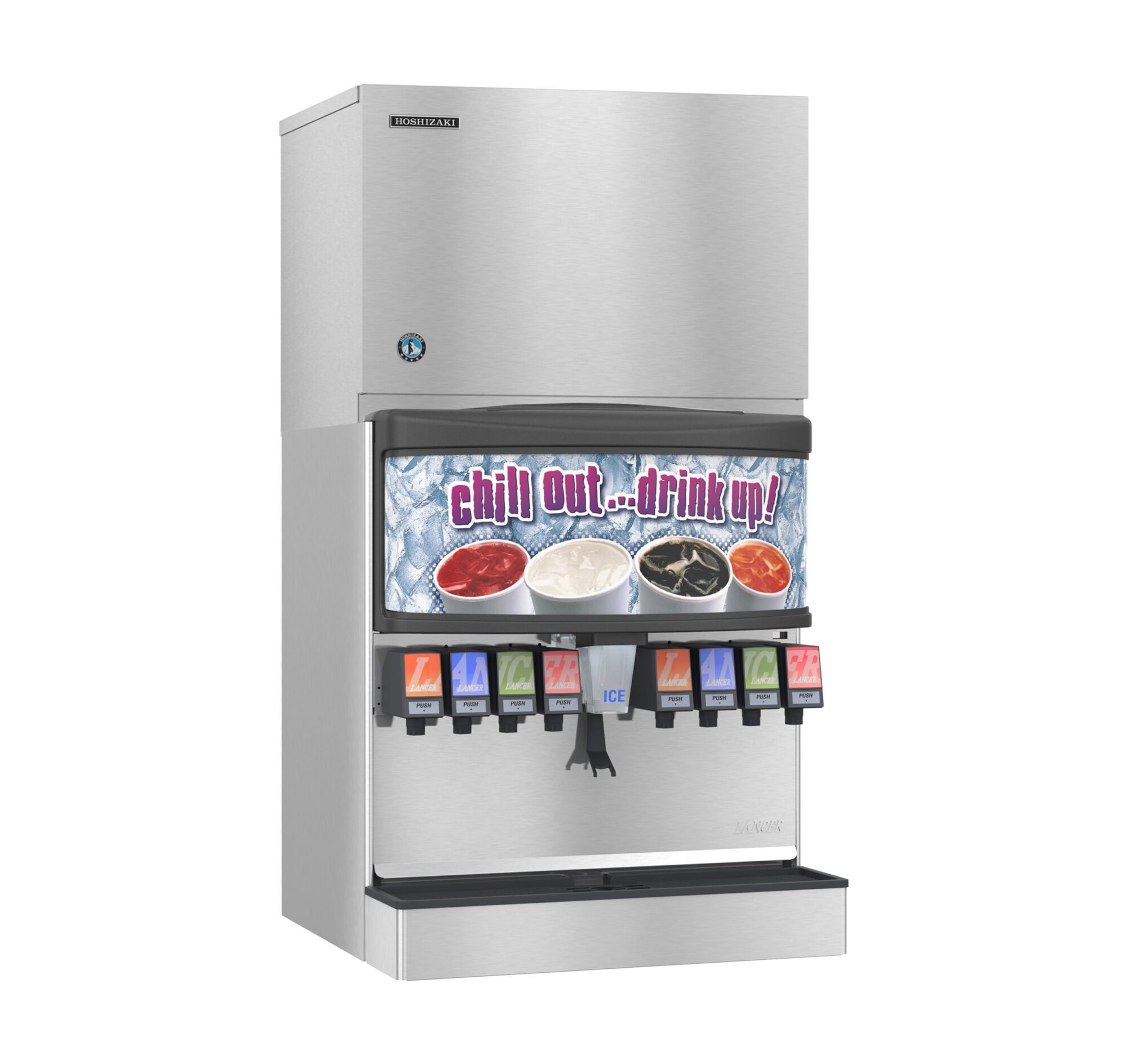

Compatible bins & dispensers: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H; sold separately. View Bins View Dispensers
- Dimensions: 30″ W x 24″ D x 22″ H
- Up to 560 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H
- EverCheck™ alert system
- CycleSaver™ design
- Simple one-hour cleaning process
- R-404A refrigerant (2 lbs. 13.9 oz. / 1301 g)
- Heat Rejection: 7900 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 12.4 amps (20 Amp Max fuse)
- 4.15 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine
- Five Years: Parts & Labor warranty on evaporator
