WF60A-01, Freezer, Two Section Worktop, Stainless Doors with Lock / WF60A-01, Freezer, Two Section Worktop, Stainless Doors with Lock

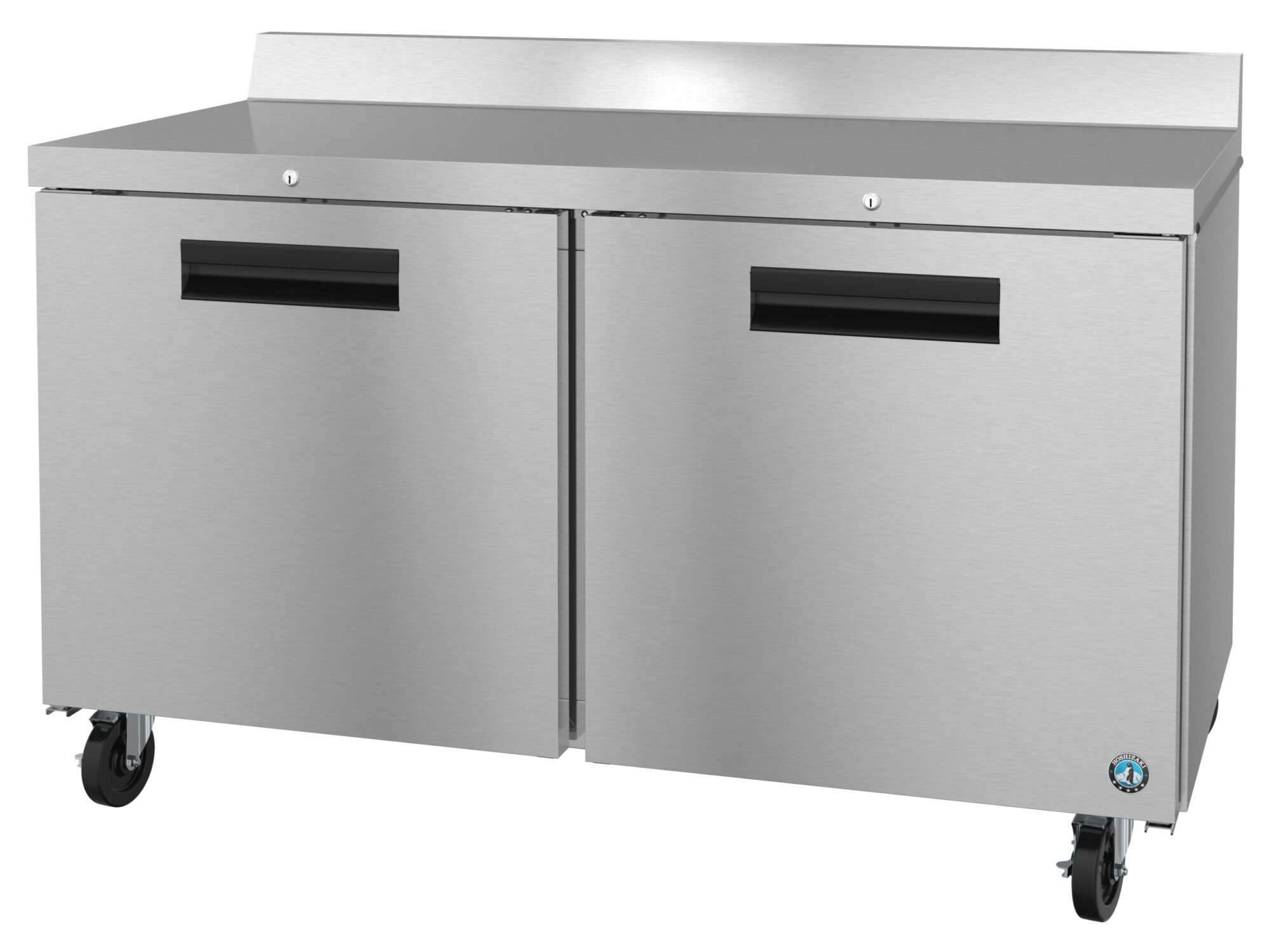

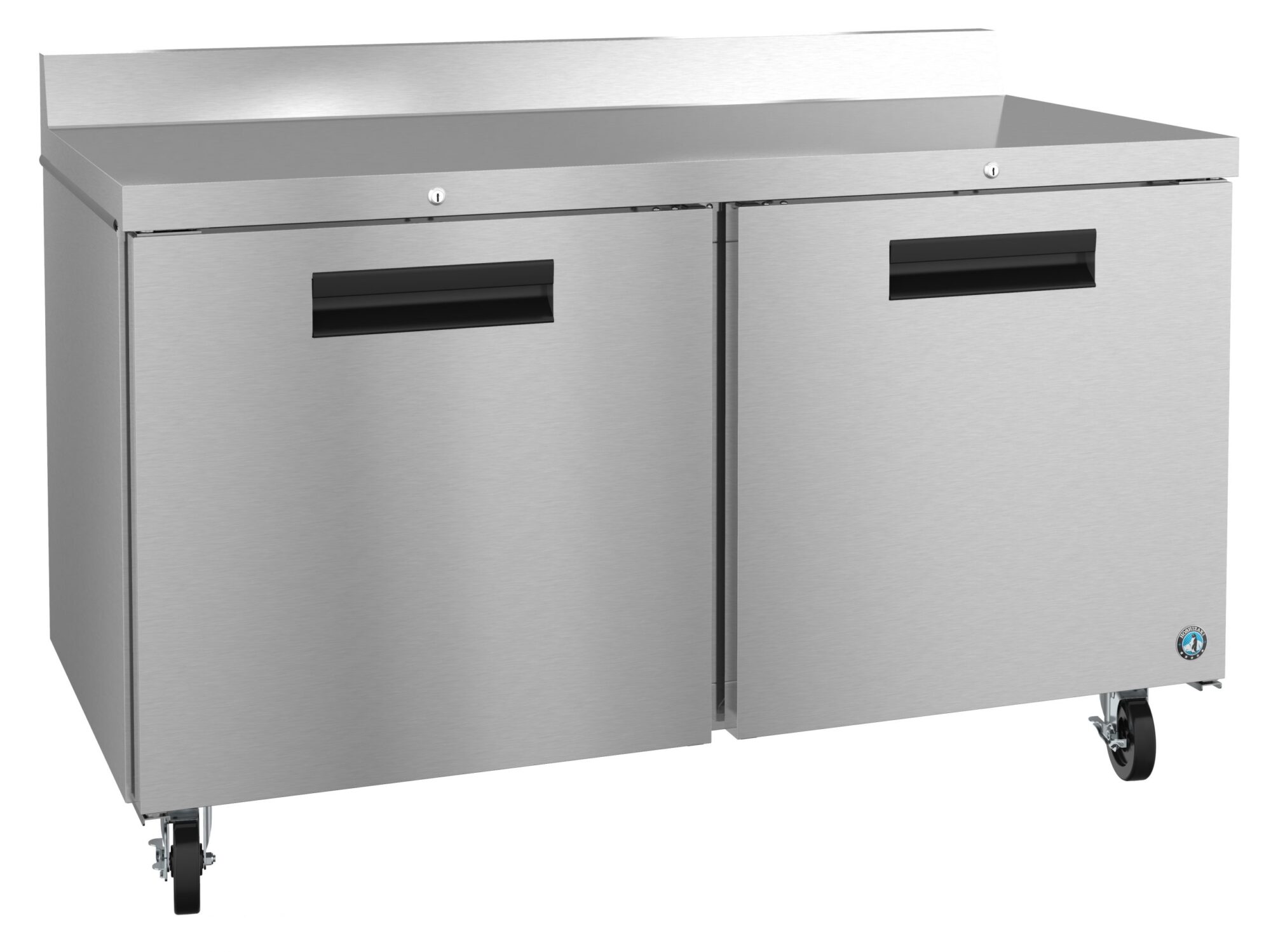

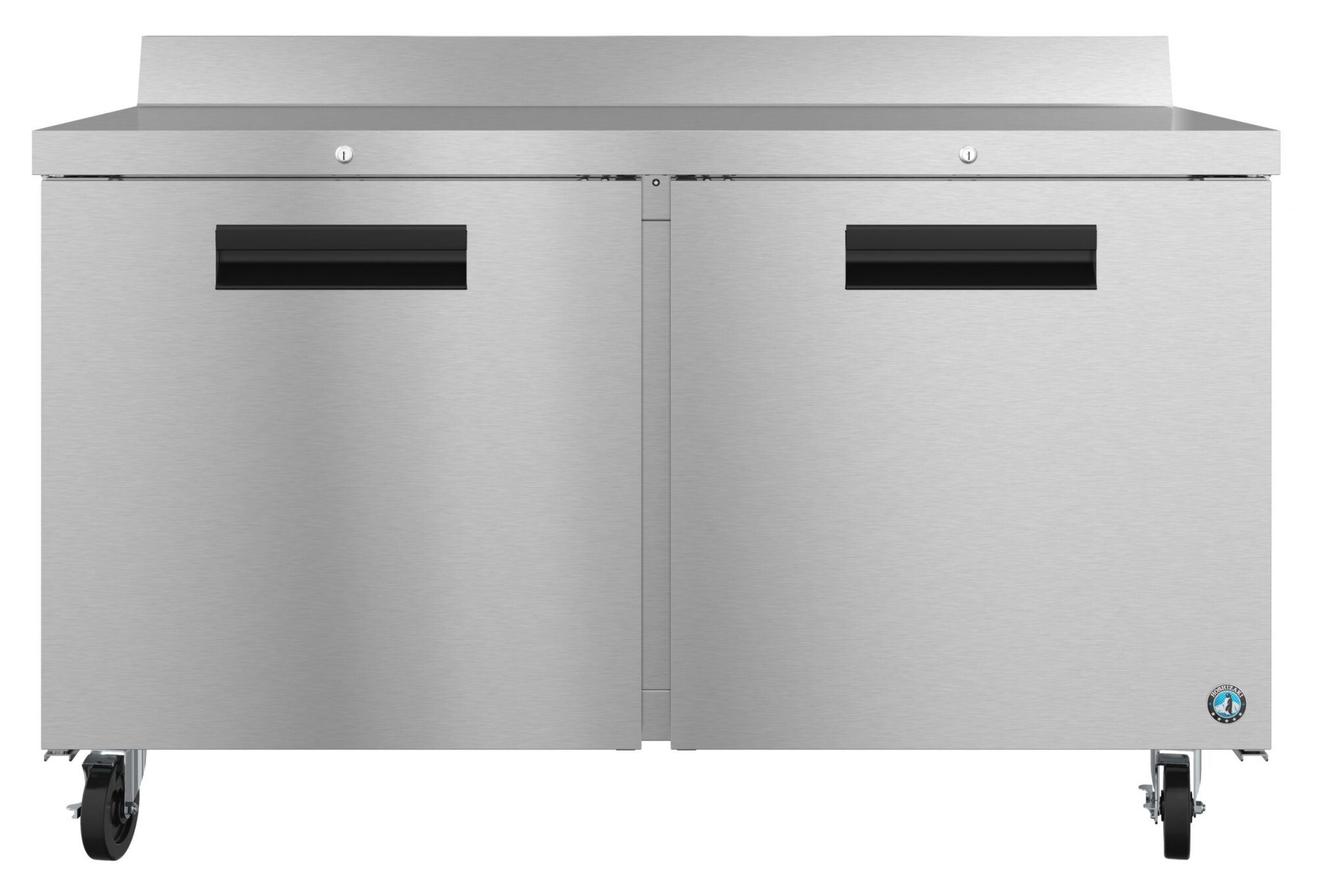

WF60A-01 Freezer, Two Section Worktop, Stainless Doors with Lock

60″ W X 30″ D X 40″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 4.22 kwh/day, Amperage: 5.6, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1360 BTU/hr at 1/3 HP, Heat Rejection: 804.2 BTU/hr
Shipping Weight
320
Storage Specs
Nominal storage capacity: 17.55 ft3, Interior storage capacity: 15.38 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 58.5″ D, Shelves included: 2
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The WF60A-01 Steelheart Series Worktop two section freezer with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 15.38 cubic feet this efficient worktop freezer and front air flow design is perfect for hot/tight kitchens. The WF60A-01 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The WF60A-01 also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 6″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 4.22 kWh/day at 5.6 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Includes cylinder locks (-01) (factory installed). The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a five years compressor warranty / three years parts and labor warranty.

  • Discontinued – Replaced by WF60B-01
  • Dimensions: 60″ W x 30″ D x 40″ H
  • Net capacity of 15.38 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • Extruded aluminum flush mount door handle
  • (2) stainless steel doors with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 6″ Stem Casters (2 with brakes) are standard
  • Includes cylinder locks (-01) (factory installed)
  • Nominal Compres. of 1360 BTU/hr at 1/3 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 62″ L x 34″ D x 40.25″ H at 320 lbs
  • Automatic time-initiated heated defrost
  • Five Years compressor warranty, Three Years parts and labor warranty
