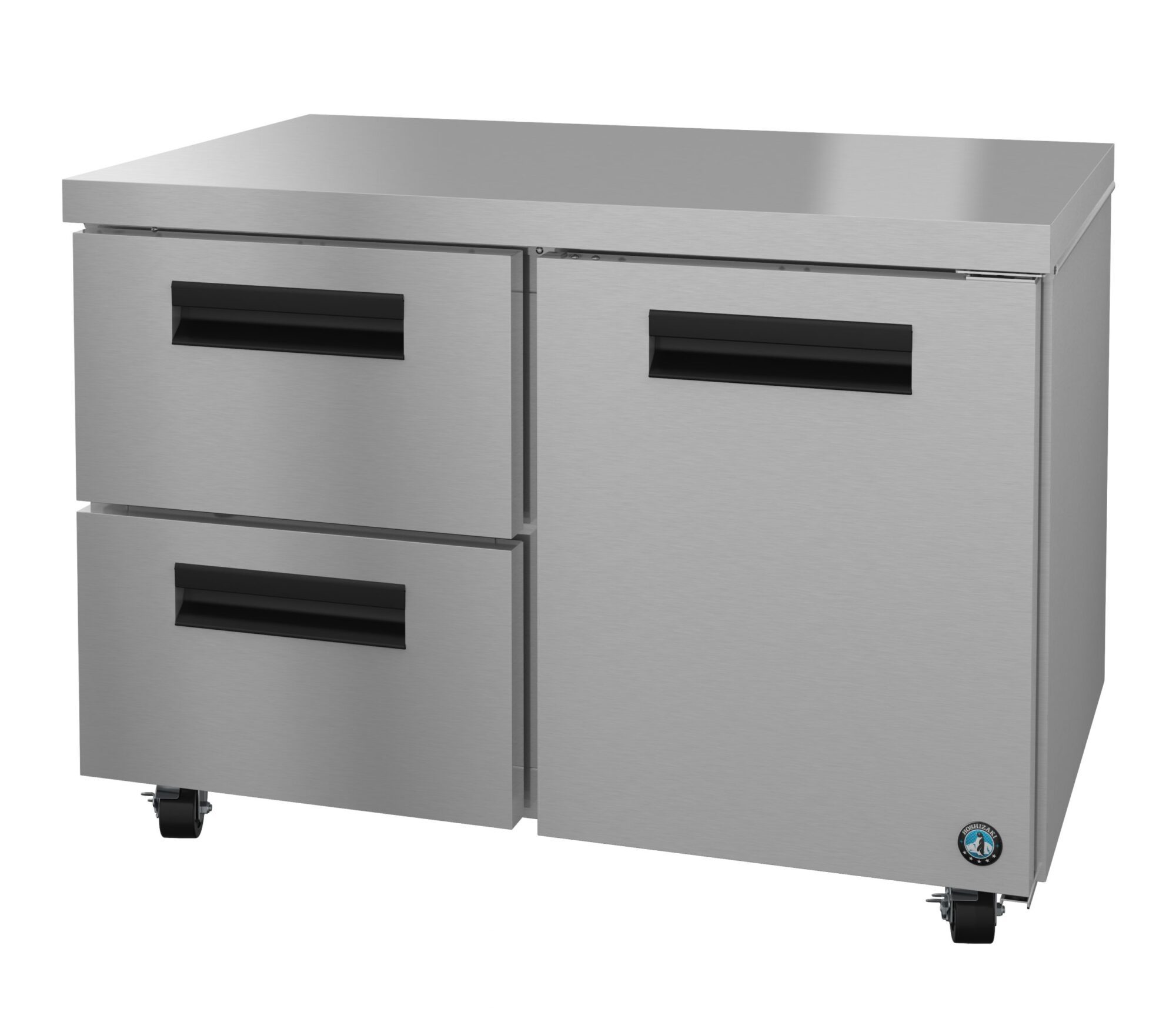

UR48A-D2, Refrigerator, Two Section Undercounter, Drawer/Door Combo

REQUEST A QUOTE

  • Dimensions: 48″ W x 30″ D x 33.63″ H
  • Net capacity of 12 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer/door handles
  • (1) stainless steel door and (2) stainless steel drawers
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (1) epoxy coated wire shelves and (2) stainless steel drawers each with (1) divider bar
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • ?
  • Optional kits: 2.25″ or 6″ casters, Short drawer divider bar, Stainless steel back, Overshelves, Lock
  • Nominal Compres. of 988 BTU/hr at 1/6 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 52.5″ L x 34″ D x 36.5″ H at 241 lbs
  • Automatic off-cycle defrost
  • Five Years compressor warranty, Three Years parts and labor warranty

Sales Literature

Price ListSales Catalog

Description

The UR48A-D2 Steelheart Series Undercounter two section refrigerator with drawer/door combo is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR48A-D2 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR48A-D2 also includes (1) epoxy coated wire shelves and (2) stainless steel drawers each with (1) divider bar, (4) 4″ Stem Casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 1.4 kWh/day at 2.6 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Short drawer divider bar, Stainless steel back, Overshelves, Lock. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight241 lbs
Dimensions48" W X 30" D X 33.63" H in
Height33.63" H
Width48" W
Depth30" D
Shipping Weight241 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications:ETL Sanitation Listed, ETL Safety (US & C) Listed
Energy Star® Qualified:No
Electrical Specs:Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.4 kwh/day, Amperage: 2.6, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits:Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 32 - 52°F, Refrigerant: R290
