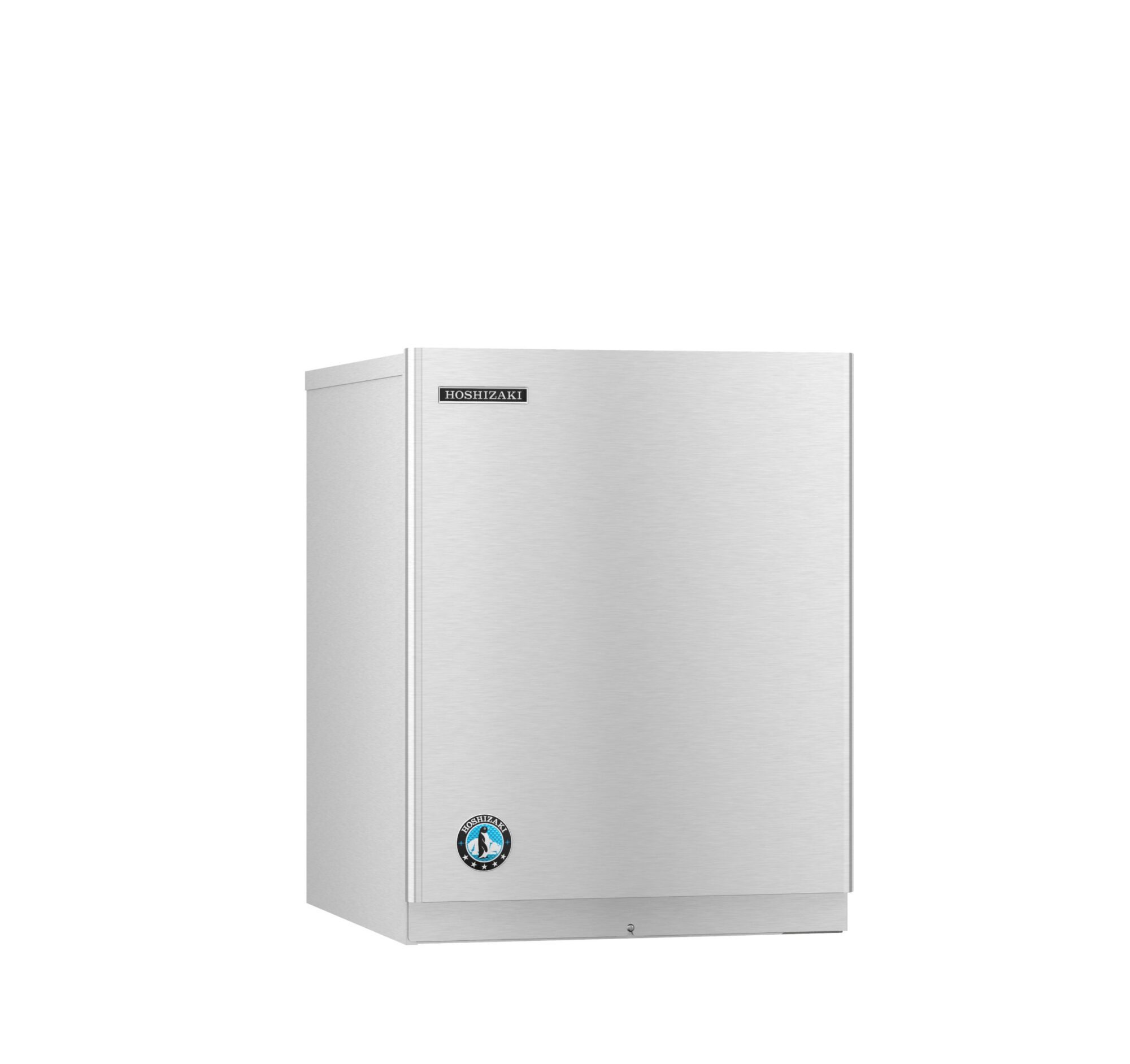

KMS-822MLJ with SRK-10J, Crescent Cuber Icemaker, Remote-cooled, Serenity Series

REQUEST A QUOTE

  • Dimensions: 22″ W x 24-5/8″ D x 28″ H
  • Up to 851 lbs of ice produced per 24 hours
  • Mount units side-by-side for x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior

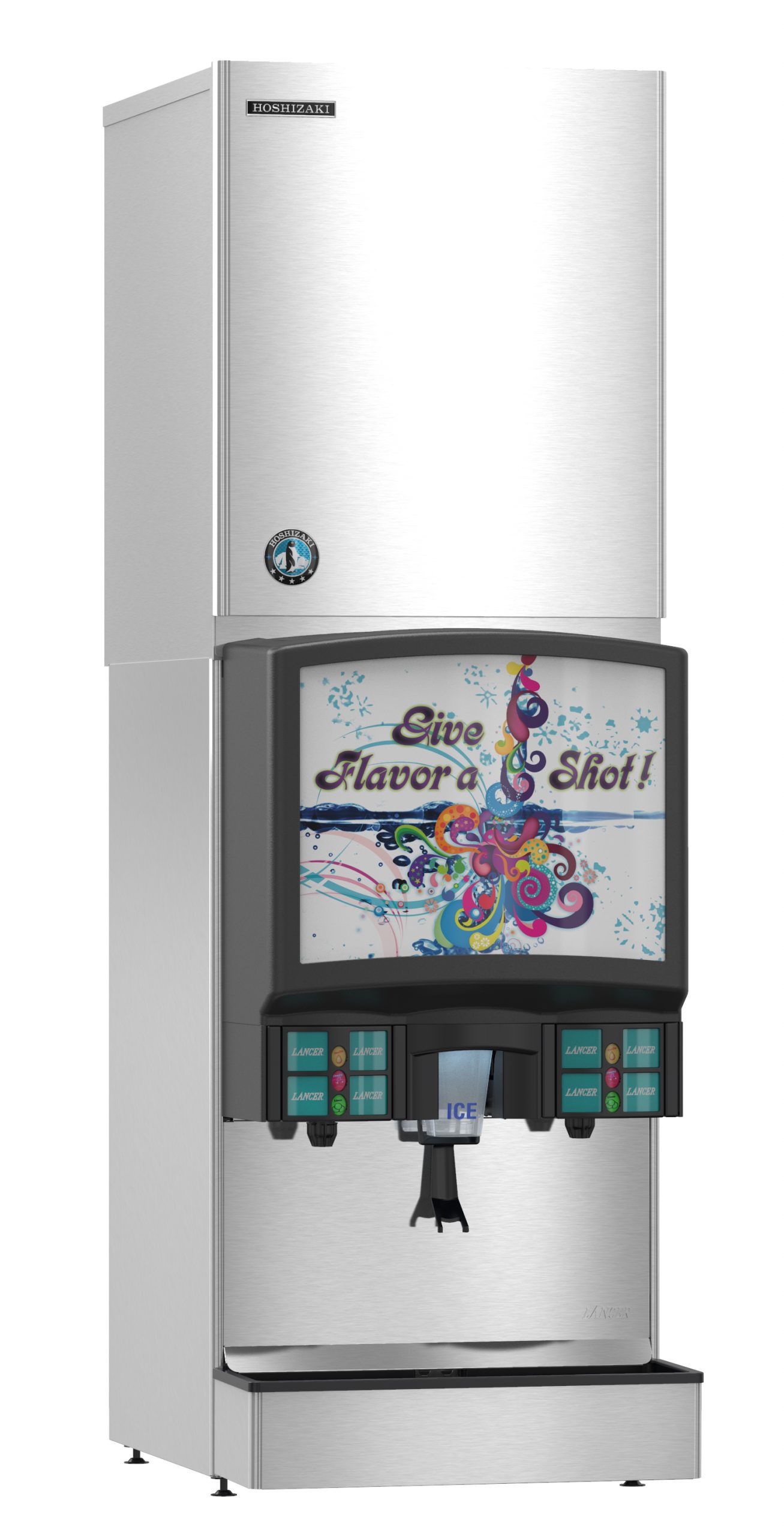

  • Compatible bins & dispensers, sold separately: Beverage Dispensers, B-250, BD-300, B-500, B-700, B-800, B-900, DB-200H
  • EverCheck™ alert system
  • CycleSaver™ design
  • Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant (7.1 oz. / 200 g)
  • Heat Rejection:14700 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 11.9 amps (20 Amp Max fuse)
  • 5.3 kwh/100 [email protected] 90/70
  • Single phase, See Remote Condenser, *115V supply for the KMS Icemaker is supplied from the 230V SRK Remote Condenser
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
SKU: KMS-822MLJ Categories: , , , , , Tag:

Description

The KMS-822MLJ with SRK-10J remote condenser is capable of producing approximately 851 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-10J icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-822MLJ requires a Single phase, See Remote Condenser, *115V supply for the KMS Icemaker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers, B-250, BD-300, B-500, B-700, B-800, B-900, DB-200H. Please consult the Specification Sheet for additional details.

Additional information

Weight 150 lbs
Dimensions 22" W X 24-5/8" D X 28" H in
Height 28" H
Width 22" W
Depth 24-5/8" D
Shipping Weight 150 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts & Labor warranty on evaporator.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Certifications: AHRI Standard 810, NSF, UL Listed
Energy Star® Qualified: No
Electrical Specs: Single phase, See Remote Condenser, *115V supply for the KMS Icemaker is supplied from the 230V SRK Remote Condenser, Amperage: 11.9, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption: 5.3 kWh per 100 lbs @ 90/70, 21 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 14700 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g)
