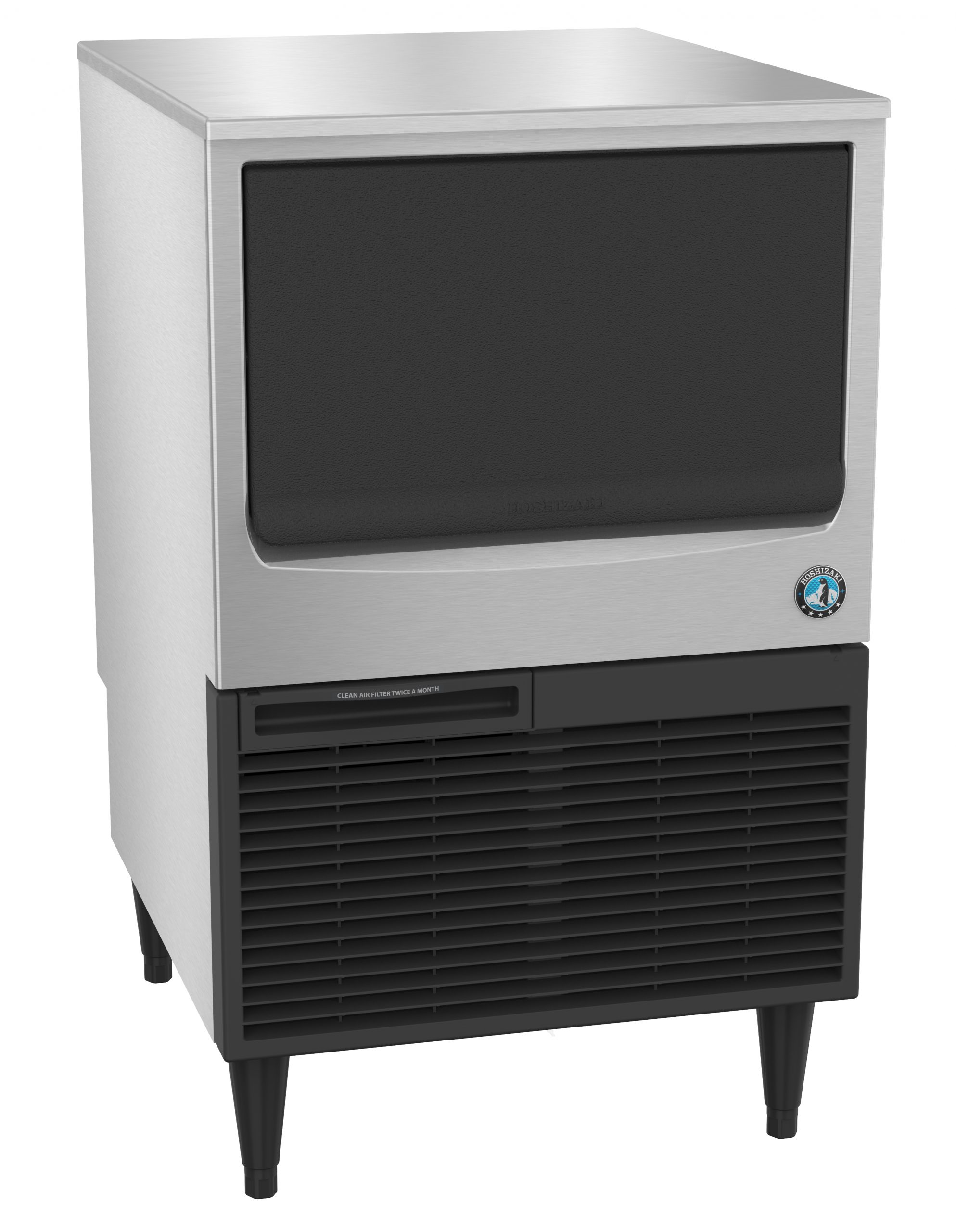

KM-160BWJ, Crescent Cuber Icemaker, Water-cooled, Built in Storage Bin


Out of stock


  • Dimensions: 23-3/4″ W x 28″ D x 39″ H
  • Up to 157 lbs of ice produced per 24 hours
  • Up to 78 lbs of built-in storage capacity (2.6ft3)
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Front in, front out airflow
  • EverCheck™ alert system
  • CycleSaver™ design
  • Slide in door, ice bin opening is ADA compliant
  • R-134a refrigerant (10.6 oz. / 300 g)
  • Heat Rejection:2900 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 6.4 amps (15 Amp Max fuse)
  • 6.23 kwh/100 [email protected] 90/70
  • Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.


The KM-160BWJ is capable of producing approximately 157 lbs of crescent cubed ice. This Undercounter Water-cooled, Self Contained, Built in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-160BWJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-151BWH.

Additional information

Weight 163 lbs
Dimensions 23-3/4" W X 28" D X 39" H in
Height 39" H
Width 23-3/4" W
Depth 28" D
Shipping Weight 163 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts & Labor warranty on evaporator.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Certifications: AHRI Standard 810, NSF, UL Listed, ETL Sanitation Listed, ADA Compliant
Energy Star® Qualified: No
Electrical Specs: Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 6.4, Max Fuse/HACR Breaker: 15 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 1/2" FPT Outlet, Minimum 1/4" Nominal ID Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent
Utility Consumption: 6.23 kWh per 100 lbs @ 90/70, 23.9 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 2900 BTU/hr, Refrigerant Charge: R-134a, (10.6 oz. / 300 g)
