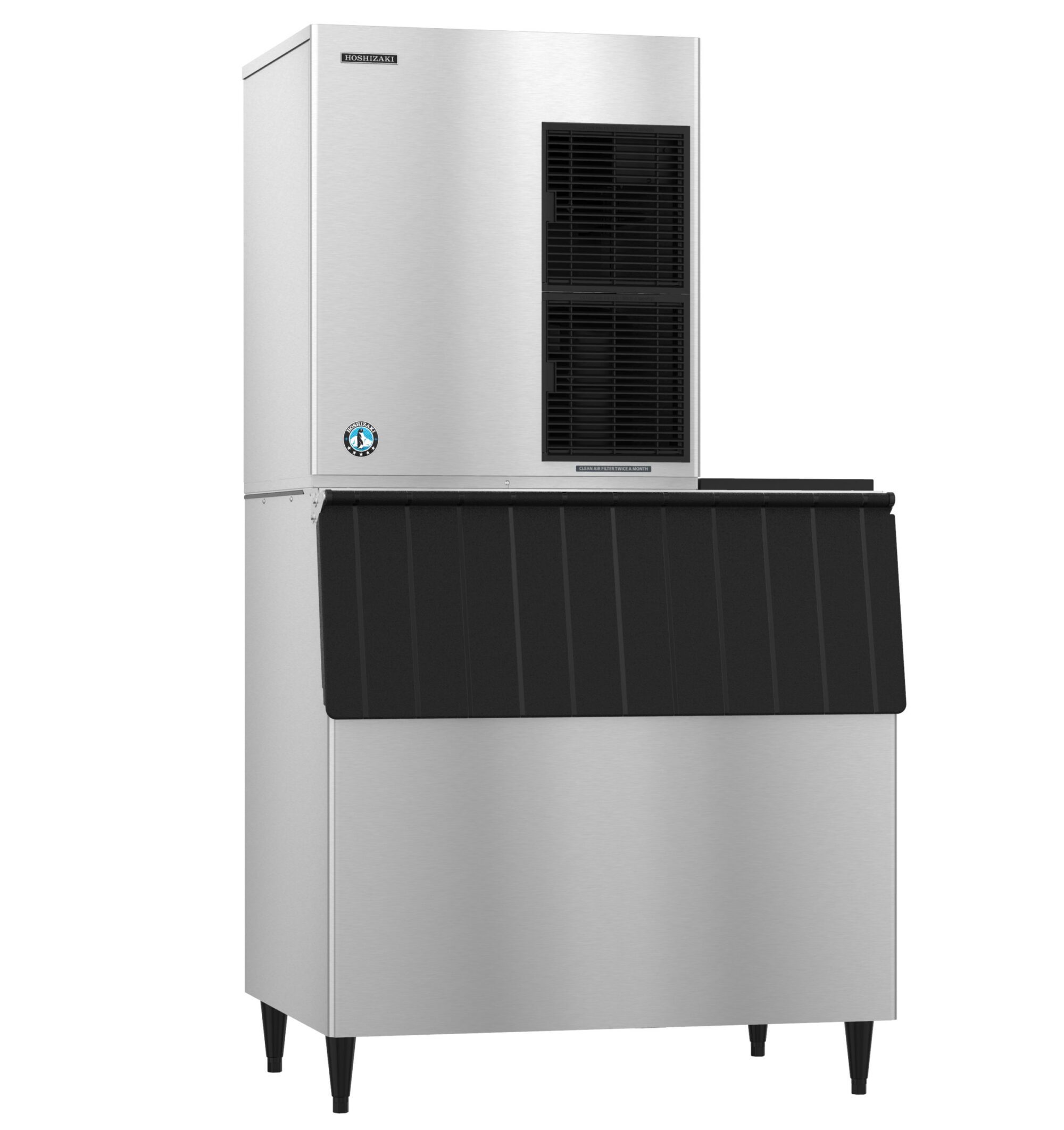

F-2001MRJ3 with URC-22F, Flaker Icemaker, Remote-cooled, 3 Phase

REQUEST A QUOTE

  • Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
  • Up to 2098 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces flaked ice
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • Designed for long life dependability
  • R-404A refrigerant (8 lbs. 2.5 oz. / 3700 g)
  • Heat Rejection:19500 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 18.1 amps (20 Amp Max fuse)
  • 3.9 kwh/100 [email protected] 90/70
  • Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: F-2001MRJ3 Categories: , , , , Tag:

Description

The F-2001MRJ3 is capable of producing approximately 2098 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Remote-cooled with URC-22F icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-2001MRJ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces F-2001MRH3.

Additional information

Weight 360 lbs
Dimensions 30" W X 27-3/8" D X 34-7/16" H in
Height 34-7/16" H
Width 30" W
Depth 27-3/8" D
Shipping Weight 360 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.|
Certifications: NSF, UL Listed
Energy Star® Qualified: No
Electrical Specs: Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 18.1, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption: 3.9 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 19500 BTU/hr, Refrigerant Charge: R-404A, (8 lbs. 2.5 oz. / 3700 g)
