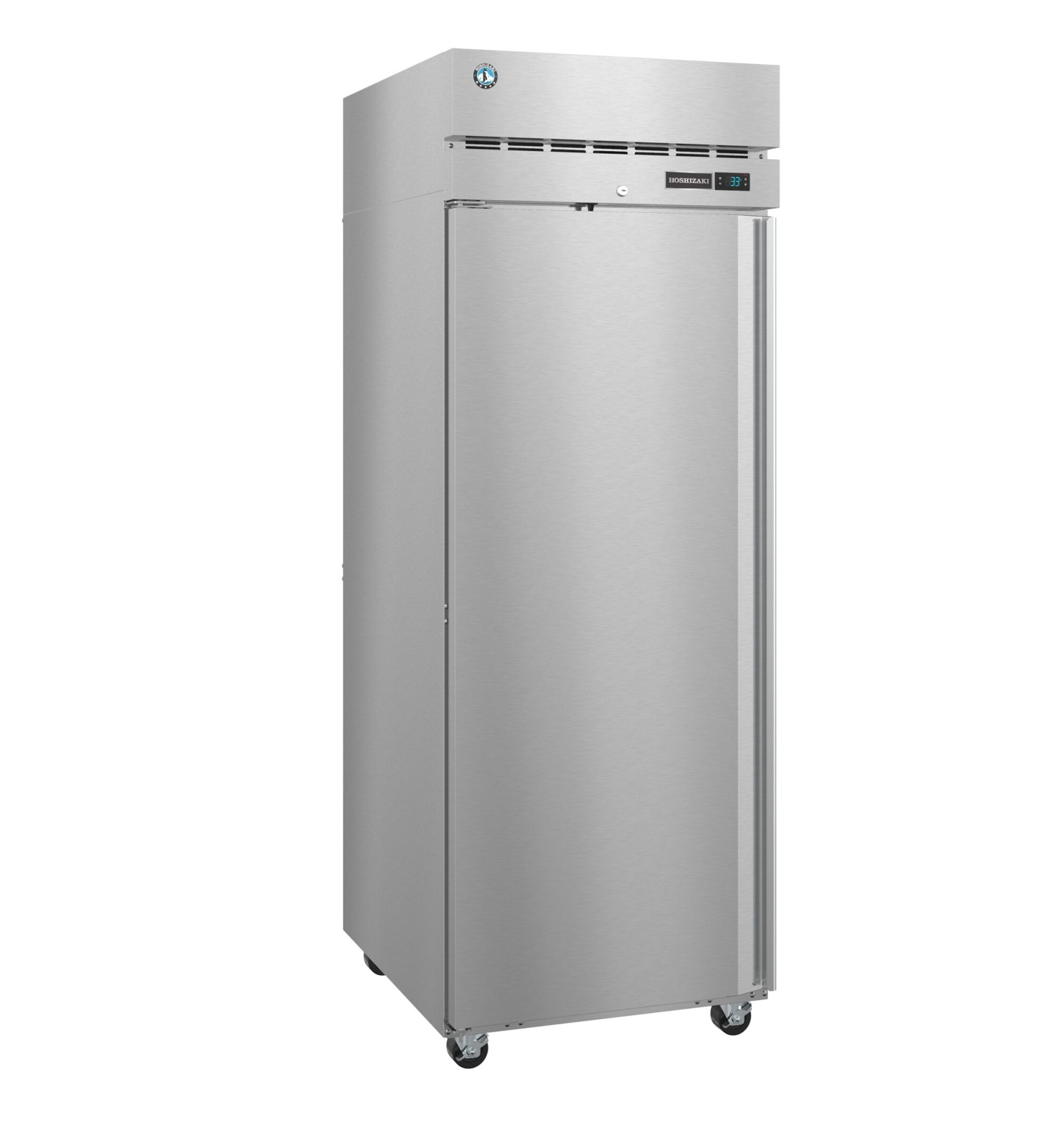

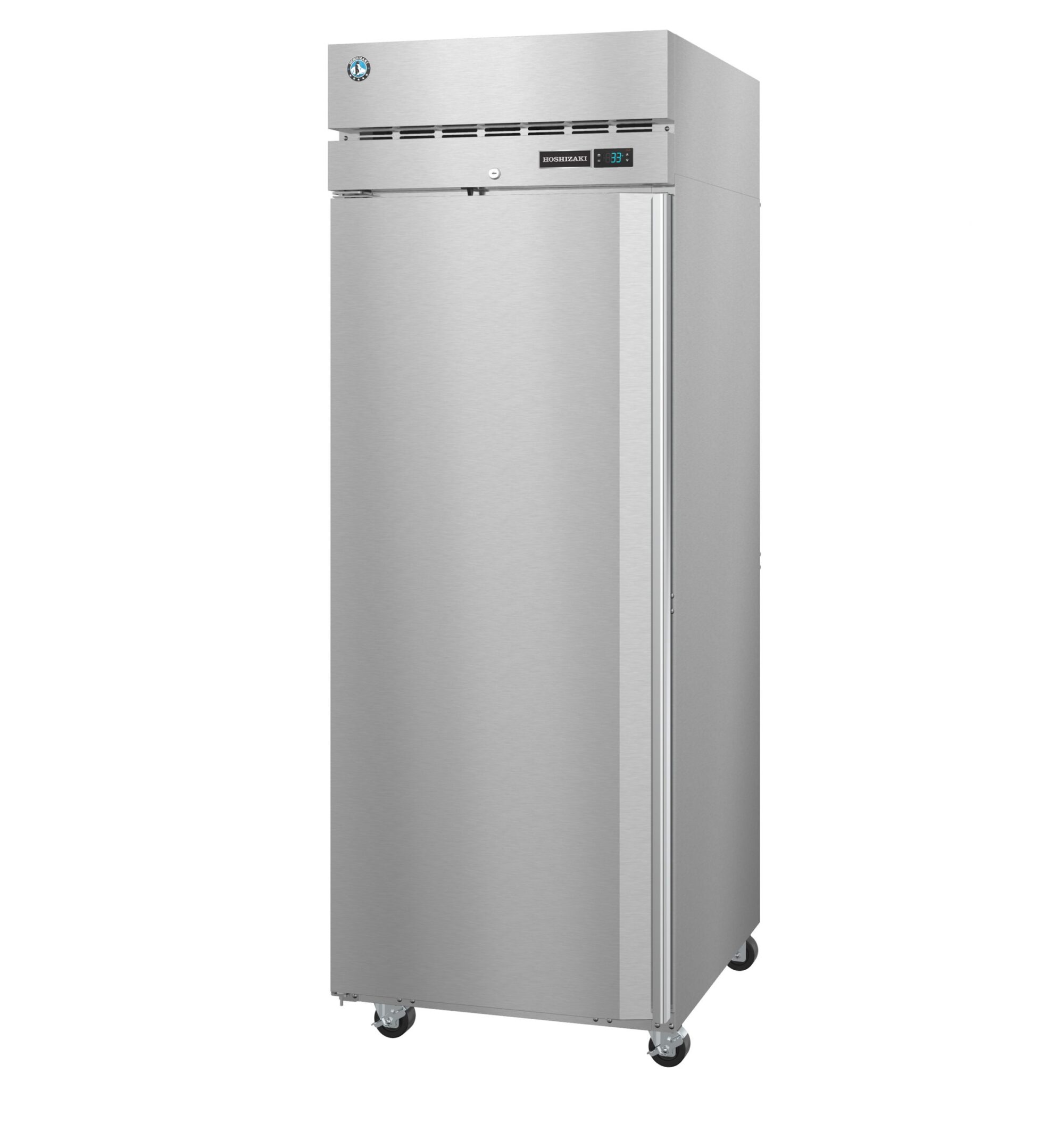

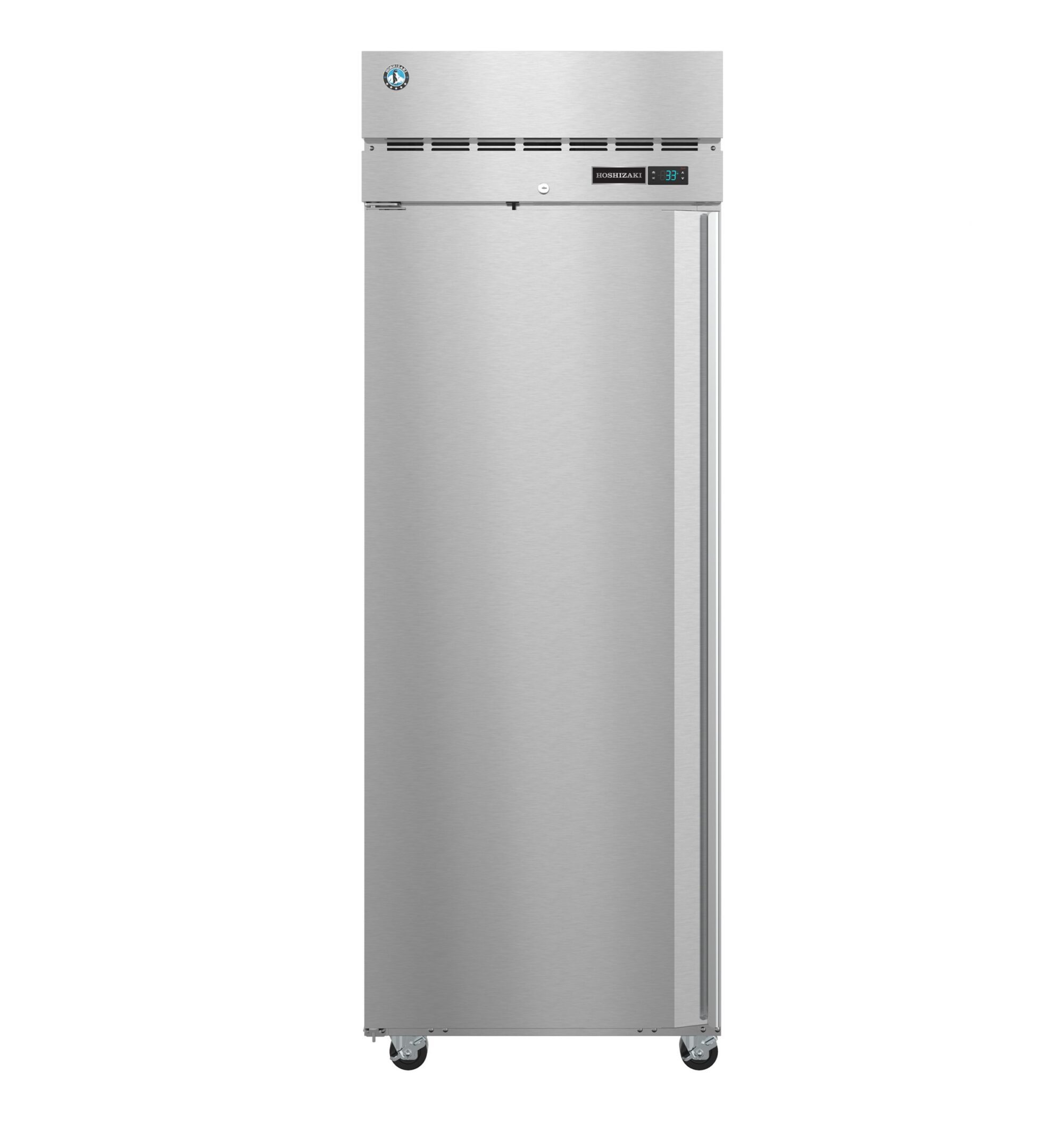

R1A-FSL, Refrigerator, Single Section Upright, Full Stainless Door with Lock

REQUEST A QUOTE

  • Dimensions: 27.5″ W x 33.5″ D x 79.5″ H
  • Net capacity of 23.1 cubic feet
  • Unique “ducted” air distribution system
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • One piece, full door length, extruded aluminum flush mount door handle
  • Lockable Full Stainless Door, left hand swing
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Interior LED light bar is mounted horizontally on the ceiling
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
  • Nominal Compres. of 770 BTU/hr at 1/4 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 37.5″ L x 31.5″ D x 81″ H at 345 lbs
  • ENERGY STAR® Qualified
  • Five Years compressor warranty, Three Years parts and labor warranty

Description

The R1A-FSL Steelheart Series upright single section refrigerator with a full stainless door is an attractive workhorse for any business. The dependable 1/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.
The durable Stainless steel exterior (front, sides, top) and a stainless steel interior resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The R1A-FSL Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports, and the (4) 4″ stem casters (2 with brakes) are standard. It features field reversible, spring assisted self closing door with stay open feature (no kit req’d). Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified and includes a five years compressor warranty / three years parts and labor warranty.

Additional information

Weight 345 lbs
Dimensions 27.5" W X 33.5" D X 79.5" H in
Height 79.5" H
Width 27.5" W
Depth 33.5" D
Shipping Weight 345 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications: ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified
Energy Star® Qualified: Yes
Electrical Specs: Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.25 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits: Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 31 - 52°F, Refrigerant: R290
